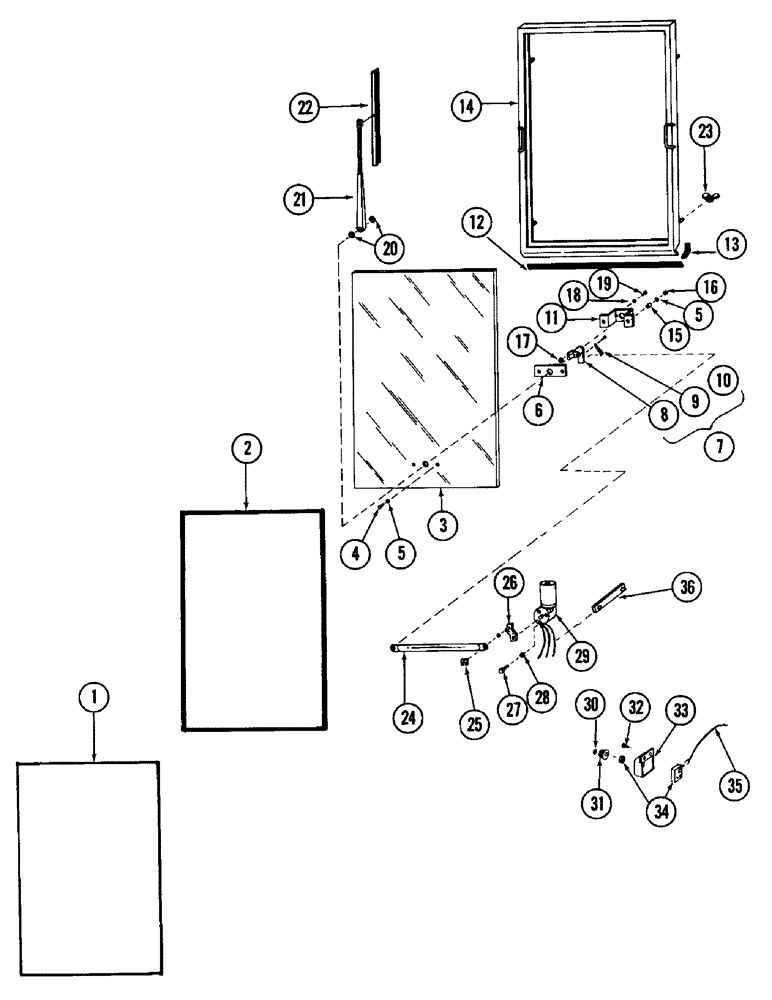

Запчасти Case 880 (110) - CAB AND RELATED PARTS (05) - UPPERSTRUCTURE CHASSIS

S952943

CAB ASSEMBLY - (Yellow), Includes: Ref. 1 - 36

1шт.

S954879

CAB ASSEMBLY - (Black), Includes: Ref. 1 - 36

1шт.

S221460

WINDOW

ASSEMBLY, upper front, Includes: Ref. 1 - 19

1шт.

1

S75830

SEAL

STRIP, filler - 158" long

1шт.

2

S75829

SEAL

SETTING MATERIAL, glass - (Bulk) - 158" long

1шт.

3

S89971

SHIELD

GLASS

1шт.

4

182-541

SCREW,Cross Pan Hd, #10-24 x 3/4"

pan head - No. 10 x 1"

2шт.

5

195-513

WASHER,#10

flat - No. 10

4шт.

6

S218046

GASKET

1шт.

7

S218045

ARM ASSY.

PIVOT ARM ASSEMBLY, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

ARM, pivot

1шт.

9

S90073

CHAIN

1шт.

10

187-823

SELF-TAP SCREW

SCREW, binding head - No. 8 x 5/16"

1шт.

11

S94305

BRACKET

pivot arm

1шт.

12

S75838

SEAL

weather - 32.4" long

1шт.

13

F67064

SEAL

2шт.

14

S94304

FUNNEL

FRAME, window

1шт.

15

S90068

BUSHING

2шт.

16

86632551

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

2шт.

17

129-6

NUT,#8-32

- No. 8 - 36 NF

2шт.

18

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, lock internal external tooth - No. 8

2шт.

19

182-87

SCREW,Slotted Pan Hd, #8-32 X 5/8"

pan head No. 8 - 36 NF x 5/8"

2шт.

20

S90044

WASHER

flat

2шт.

21

S217996

ARM

wiper

1шт.

22

S90047

HALF BLADE

BLADE, wiper

1шт.

23

129-410

WING NUT,3/8"-16

NUT, wing - 3/8" - 16 NC

1шт.

24

S90046

PITMAN

LINK, arm

1шт.

25

S90045

CLIP

- (Fits in drive arm)

1шт.

26

S89993

ARM

drive

1шт.

27

187-1517

CPSW - 1/4" - 28 NF x 5/8"

3шт.

28

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

29

S223633

MOTOR

wiper, Serial Range: 6200000-6200881

1шт.

S225044

MOTOR

wiper, Start Serial: 6200882

1шт.

30

A41730

DECAL

1шт.

31

A41647

KNOB

wiper switch

1шт.

32

S90056

SCREW

- 1/4" - 20 NC x 1/2"

2шт.

33

S96777

BRACKET

wiper switch

1шт.

34

S88046

SWITCH

wiper - (Includes nut), Serial Range: 6200000-6200881

1шт.

S225028

IGNITION SWITCH

SWITCH, wiper - (Includes nut), Start Serial: 6200882

1шт.

35

S90088

WIRE ASSEMBLY

1шт.

36

S90066

CLIP

wiper wires

2шт.
