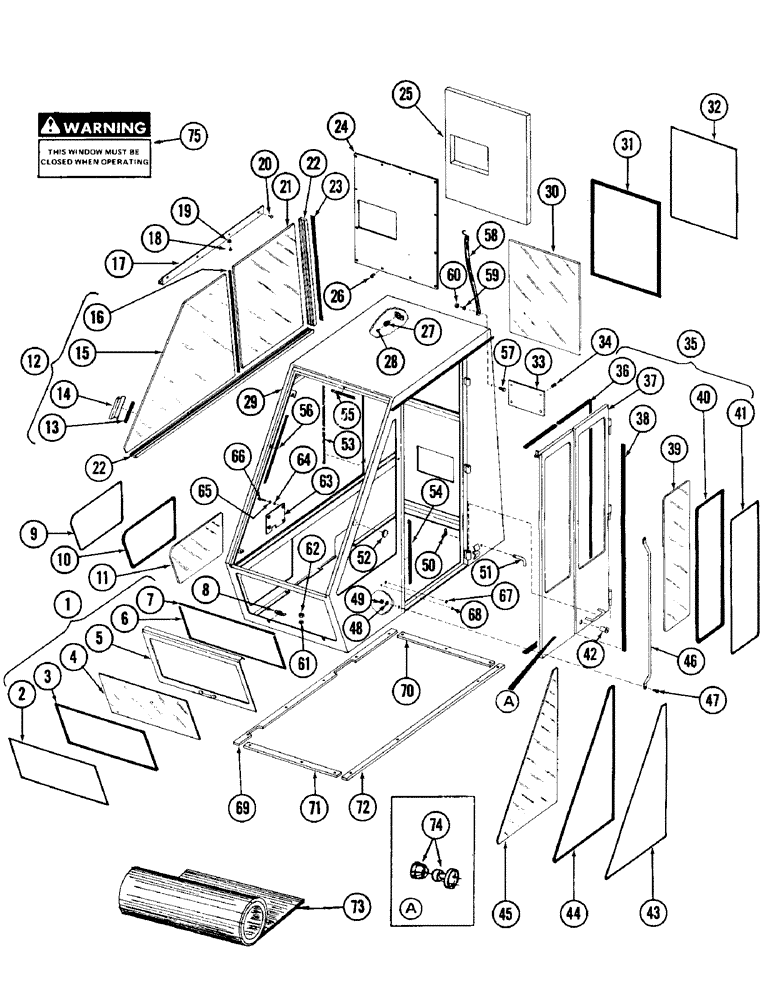

Запчасти Case 880 (106) - CAB AND RELATED PARTS (05) - UPPERSTRUCTURE CHASSIS

S952943

CAB ASSEMBLY - (Yellow), Includes: Ref. 1 - 40

1шт.

S954879

CAB ASSEMBLY - (Black), Includes: Ref. 1 - 40

1шт.

1

S221463

COVER

ASSEMBLY, Includes: Ref. 2 - 8

1шт.

2

S75830

SEAL

STRIP, filler - 86.3" long

1шт.

3

S75829

SEAL

SETTING MATERIAL, glass - (Bulk) - 86.8" long

1шт.

4

NSS

NOT SOLD SEPARAT

GLASS

1шт.

5

S94319

FRAME, cover

1шт.

6

S75852

SEAL - 63.6" long

1шт.

7

S75851

SEAL - 30.5" long

1шт.

8

129-419

WING NUT,5/16"-18

NUT, wing - 5/16" NC

2шт.

9

S75830

SEAL

STRIP, filler - 42" long

1шт.

10

S75829

SEAL

SETTING MATERIAL, glass - (Bulk) - 42" long, Includes: Ref. 11 - 34

1шт.

11

NSS

NOT SOLD SEPARAT

GLASS

1шт.

12

S218056

CAB GLASS ASSY

GLASS ASSEMBLY, sliding, Includes: Ref. 13

1шт.

13

A43252

HANDLE

SEAL

1шт.

14

A43253

HANDLE

Includes: Ref. 15 and 16

1шт.

15

S89974

GLASS

1шт.

16

S90092

SEAL

1шт.

17

S218052

RETAINER

ASSEMBLY

1шт.

18

182-532

SCREW,Sl Pan Hd, #10 - 32 x 3/4"

Phillips pan head - No. 10 x 3/4"

2шт.

19

S90062

SPACER

2шт.

20

182-202

SCREW,Sl Pan Hd, 1/4" - 20 x 1/2"

Phillips pan head - 1/4" - 20 NC x 1/2"

4шт.

21

NSS

NOT SOLD SEPARAT

GLASS

1шт.

22

S79219

SEAL

CHANNEL, glass run

1шт.

23

S90055

STRIP

1шт.

24

S90077

LINING

LINER - (Back of cab inside)

1шт.

25

S90050

FOAM INSULATION

INSULATION - (Back of cab inside)

1шт.

26

S90051

SCREW, self tapping Phillips head - No. 10 x 1/2"

12шт.

27

S94282

BUMPER - (Inside back of cab)

2шт.

28

174-99

SCREW,Sl Rnd Hd, #10 - 32 x 5/8"

Phillips head - No. 10 x 5/8"

2шт.

29

NSS

NOT SOLD SEPARAT

BODY, cab - (Order complete cab)

1шт.

30

NSS

NOT SOLD SEPARAT

GLASS

1шт.

31

S75829

SEAL

SETTING MATERIAL, glass - (Bulk) - 102" long

1шт.

32

S75830

SEAL

STRIP, filler - 102" long

1шт.

33

S90094

COVER - (Not used with cab heater)

1шт.

34

182-279

SCREW

pan head - 3/8" x 5/8" - (Not used with cab heater)

4шт.

35

S221461

DOOR ASSY.

DOOR ASSEMBLY, Includes: Ref. 36 - 40

1шт.

36

S75838

SEAL

- (Bulk) - 109" long

1шт.

37

S94306

FRAME

door

1шт.

38

NSS

NOT SOLD SEPARAT

GLASS

2шт.

40

S75829

SEAL

SETTING MATERIAL, glass - (Bulk) - 2 pieces - 94" long

1шт.

41

S75830

SEAL

STRIP, filler - 94" long

2шт.

42

S90080

LOCK

- (Includes key)

1шт.

If replacement of cab lock key is required, check lock prior to ordering. If lock is stamped as 915, order key No. S94605 or if stamped 1363, order key No. S104-954.

1шт.

43

S75830

SEAL

STRIP - filler - 106" long

1шт.

44

S75829

SEAL

SETTING MATERIAL, glass - (Bulk) - 106" long

1шт.

45

NSS

NOT SOLD SEPARAT

GLASS

1шт.

46

S90093

HANDLE

1шт.

47

S90048

SCREW, Phillips pan head - 5/16" x 3/4"

2шт.

48

92-5

LOCK WASHER,5/16"

2шт.

49

9635082

NUT,5/16" - 18, Gr 5

2шт.

50

129-400

WING NUT,1/2"-13

NUT, wing

1шт.

51

S90058

HOOK

1шт.

52

S94281

PLUG, button

1шт.

53

S90053

WEATHERSTRIP - 35.5" long

1шт.

54

S90049

SEAL - 55" long

1шт.

55

S00

SEAL - (Bulk) - 32.8" long

1шт.

56

S000

SEAL - (Bulk) - 2 pieces - 64" long

1шт.

57

113-7

BOLT,Locking, 1/4" - 20 x 1/2", Gr 5, Full Thd

- 1/4" - 20 NC x 1-1/4"

1шт.

58

S92823

RETAINER, rubber - (Window storage)

1шт.

59

195-18

WASHER,1/4"

flat - 9-1/2 32"

1шт.

60

131-2

NUT,1/4"-20, GB

NUT, self locking - 1/4" - 20 NC

1шт.

61

196-15

WASHER,17/32" x 1 1/6" x .134"

hard - 17/32" ID x 1-1/6" OD

15шт.

62

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

15шт.

63

S220310

COVER

1шт.

64

195-18

WASHER,1/4"

flat - 9-1/2 32"

4шт.

65

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

66

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

67

S93083

PLUG

1шт.

68

S92987

PLUG

1шт.

69

S87620

STRIP, rubber

1шт.

70

S87616

STRIP, rubber

1шт.

71

S218166

STRIP

rubber

1шт.

72

S87617

STRIP, rubber

1шт.

73

S603731

MAT, floor

1шт.

74

F93104

HOLDER

PLUNGER AND SOCKET ASSEMBLY - (Holds doors together in open position)

1шт.

75

S105633

DECAL

close window warning

1шт.
