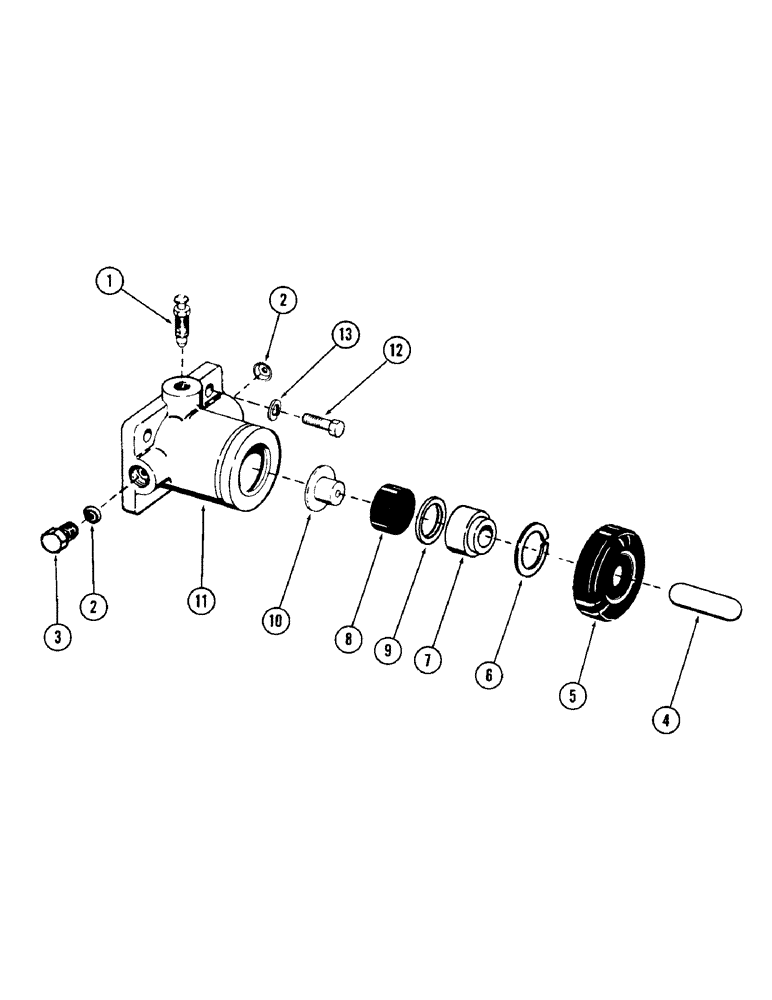

Запчасти Case 880 (162) - TRACK BRAKE CYLINDER (04) - UNDERCARRIAGE

S232060

CYLINDER

- track brake - 3/4" - (Replaces S209804), Includes: Ref. 1 - 11

2шт.

1

S61746

SCREW

- bleeder

1шт.

2

R15270

HARDWARE

INSERT - 1/4" tube seat

2шт.

3

S61747

PLUG

- 1/4" tube seat

1шт.

4

S108918

ROD

- push

1шт.

5

NSS

NOT SOLD SEPARAT

BOOT

1шт.

Part of service kit, P/N S108919

1шт.

6

NSS

NOT SOLD SEPARAT

RING - retainer

1шт.

(Not Used)

1шт.

Part of service kit, P/N S108919

1шт.

7

NSS

NOT SOLD SEPARAT

PISTON

1шт.

Part of service kit, P/N S108919

1шт.

8

NSS

NOT SOLD SEPARAT

CUP

1шт.

Part of service kit, P/N S108919

1шт.

9

NSS

NOT SOLD SEPARAT

RING - back up

1шт.

Part of service kit, P/N S108919

1шт.

10

S108912

STOP - spring

1шт.

11

NSS

NOT SOLD SEPARAT

BODY

1шт.

12

61-416

HEX SOC SCREW,1/4"-20 x 1"

BOLT - 1/4" NC x 3/4" gr 5

2шт.

13

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

S108919

PACKAGE

KIT - service - Includes: Ref. 5 thru 9

1шт.
