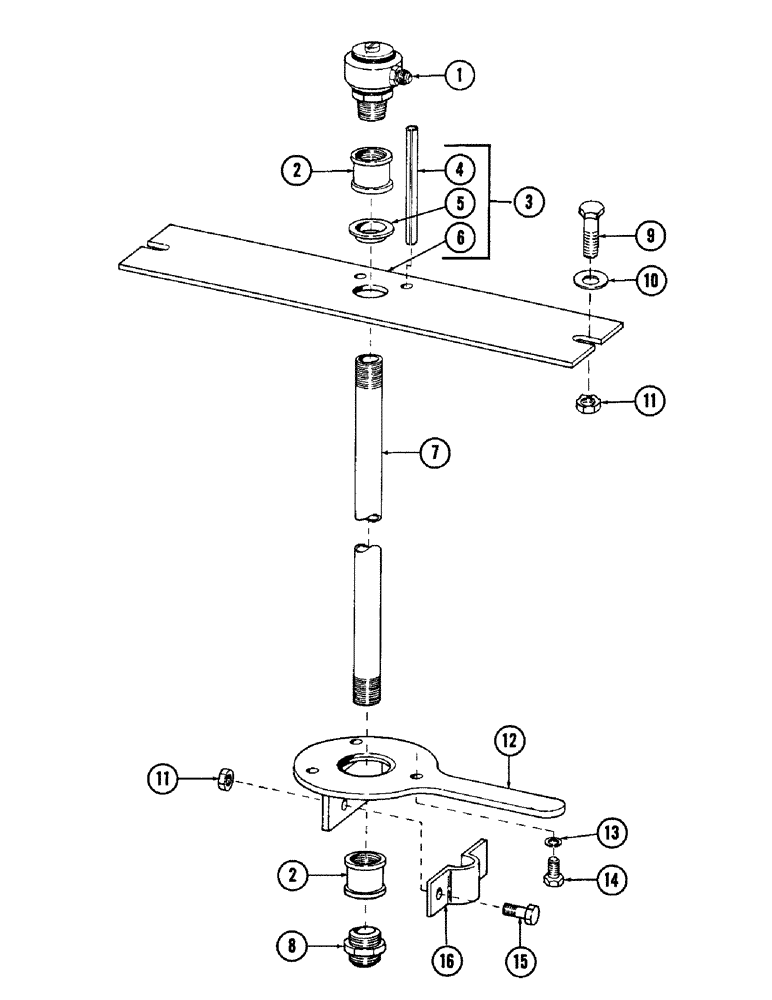

Запчасти Case 880 (156) - INNER BRAKE SWIVEL AND RELATED PARTS (04) - UNDERCARRIAGE

S39517

SWIVEL CONNECTION

SWIVEL, inner brake, Includes: Ref. 1 - 8

1шт.

1

REF

INSTRUCTION

SWIVEL, track brake (For swivel, see figure 158)

1шт.

2

221-1336

COUPLING,Pipe, 1/4" NPT

- 1/4" NPT female

2шт.

3

NSS

NOT SOLD SEPARAT

PLATE, guide, Includes: Ref. 4 - 6

1шт.

4

138-169

LOCK PIN,5/16" x 4", Slotted

Pin, 5/16" x 4", Slotted

2шт.

5

S71802

NYLON BEARING,0.756" ID x 1.187" OD x 0.375"

BEARING, nylon

1шт.

6

S71801

PLATE

1шт.

7

221-719

PIPE,Nipple, 1/4" NPT x 24 1/2"

- 1/4" x 24-1/4" long

1шт.

8

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER, flared - 7/16" - 20 male x 1/4" NPT male

1шт.

9

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

10

95-5

WASHER,3/8" x 7/8" x .083"

flat - 3/8"

2шт.

11

131-6

LOCK NUT,3/8"-16, GC

NUT, self locking - 3/8" - 16 NC

4шт.

12

S209353

PLATE

lower swivel mounting

1шт.

13

92-5

LOCK WASHER,5/16"

3шт.

14

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CPSW - 3/8" NC x 1-1/2"

2шт.

16

A55980

CLAMP

1шт.
