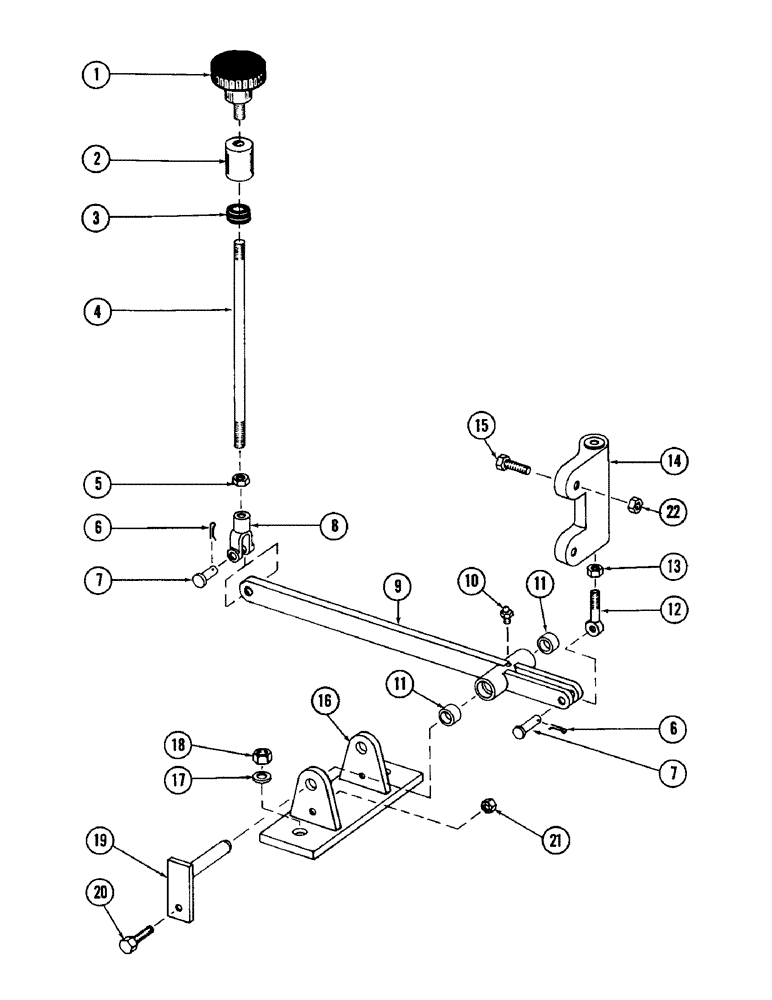

Запчасти Case 880 (150) - TRACK BRAKE VALVE CONTROL AND LINKAGE (04) - UNDERCARRIAGE

1

REF

INSTRUCTION

KNOB (For breakdown, see figure 152)

1шт.

2

S93329

COUPLING

1шт.

3

S68002

GROMMET,7/16" ID x 11/16" Groove Dia

1шт.

4

S93328

ROD

1шт.

5

25-156

JAM NUT,Jam, 3/8"-24, G5

jam - 3/8" - 24 NF

1шт.

6

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

7

141-210

PIN, clevis - 5/16" dia. x .953" grip length

2шт.

8

S85426

YOKE

1шт.

9

S220300

LINK, connecting

1шт.

10

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

11

A30586

NEEDLE BEARING

BEARING, needle

2шт.

12

S90657

BOLT, eye

1шт.

13

25-146

JAM NUT,Jam, 3/8"-16, G5

jam - 3/8" - 16 NC

1шт.

14

REF

INSTRUCTION

VALVE, track brake (For breakdown, see figure 152)

1шт.

15

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

16

S220309

BRACKET, linkage mounting

1шт.

17

195-30

WASHER

flat - 1/2"

2шт.

18

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

2шт.

19

S218962

SHAFT ASSY.

SHAFT

1шт.

20

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

21

131-2

NUT,1/4"-20, GB

NUT, self locking - 1/4" - 20 NC

1шт.

22

131-4

LOCK NUT,5/16"-18, GB

NUT, self locking - 5/16" - 18 NC

2шт.
