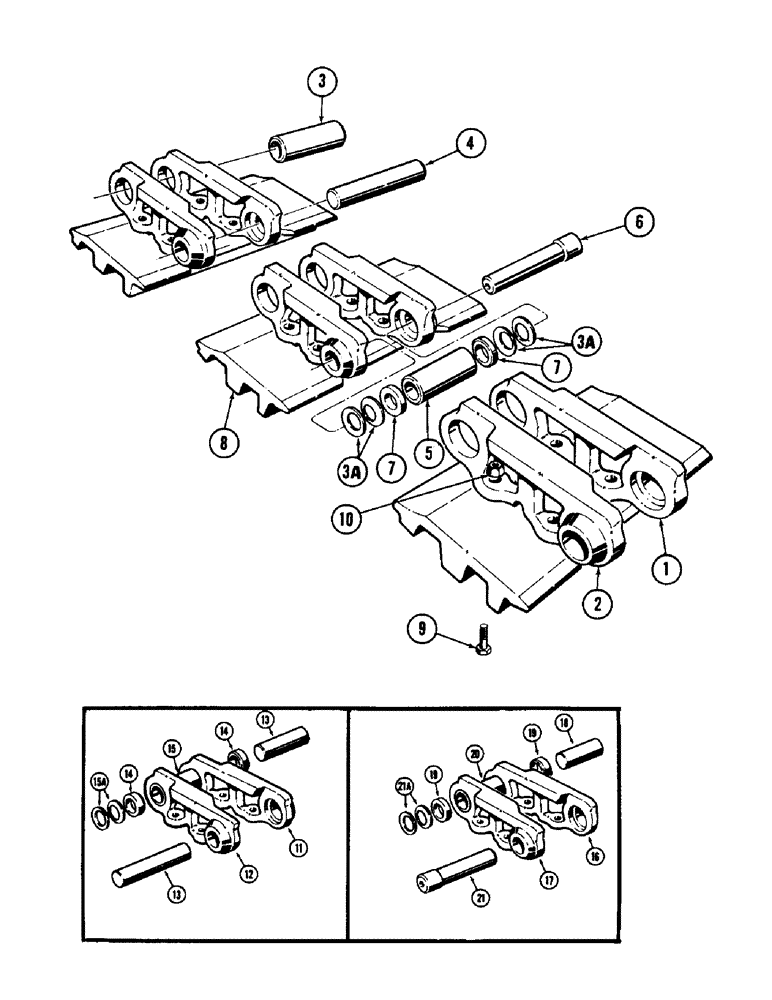

Запчасти Case 880 (148) - TRACK CHAIN (04) - UNDERCARRIAGE
№
Артикул
Название
Примечание
Количество
R24683
CHAIN (CE)
CHAIN ASSEMBLY 46 UNIT, sealed track, Includes: Ref. 1 - 7
2шт.
1
D31710
LINK
- track, R.H. (Order D45348 track chain unit kit for service)
46шт.
2
D31709
LINK
- track, L.H. (Order D45348 track chain unit kit for service)
46шт.
3
D45075
SLEEVE,35.23mm ID x 50.77mm OD x 115.16mm L
- track, long
45шт.
3a
D45076
BELLEVILLE SPRING
SEAL - washer
184шт.
4
R14893
PIN,34.9mm OD x 176.22mm L
- track, standard
45шт.
D32164
PIN
- track, service option (.003" oversize)
45шт.
5
R14896
BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L
- master, short
1шт.
6
D36511
PIN
- track, master
1шт.
7
D45272
BUSHING
- spacer
2шт.
8
R25986
TRACK SHOE
GROUSER - semi - 24"
46шт.
9
S113061
BOLT
- special
184шт.
10
S113062
NUT
- lock, special
184шт.
D45348
KIT
track chain unit, sealed track, Includes: Ref. 11 - 15A
90шт.
11
D31710
LINK
- track, R.H. (Order D45348 track chain unit kit for service)
1шт.
12
D31709
LINK
- track, L.H. (Order D45348 track chain unit kit for service)
1шт.
13
R14893
PIN,34.9mm OD x 176.22mm L
- track, standard, chain unit kit
2шт.
14
D45272
BUSHING
- spacer, track chain unit kit
2шт.
15
R14896
BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L
- master, short, track chain unit kit
1шт.
15a
D45076
BELLEVILLE SPRING
SEAL - washer, track chain unit kit
8шт.
D45350
LINK
KIT - master chain unit, sealed track, Includes: Ref. 16 - 21A
2шт.
16
D31710
LINK
- track, R.H. (Order D45348 track chain unit kit for service), master
1шт.
17
D31709
LINK
- track, L.H. (Order D45348 track chain unit kit for service), master
1шт.
18
R14893
PIN,34.9mm OD x 176.22mm L
track, standard, master chain unit kit
1шт.
19
D45272
BUSHING
- spacer, master chain unit kit
2шт.
20
R14896
BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L
- master, short, chain unit kit
1шт.
21
D36511
PIN
- master, chain unit kit
1шт.
21a
D45076
BELLEVILLE SPRING
SEAL - washer, master chain unit kit
4шт.
Выбрано товаров: 28
