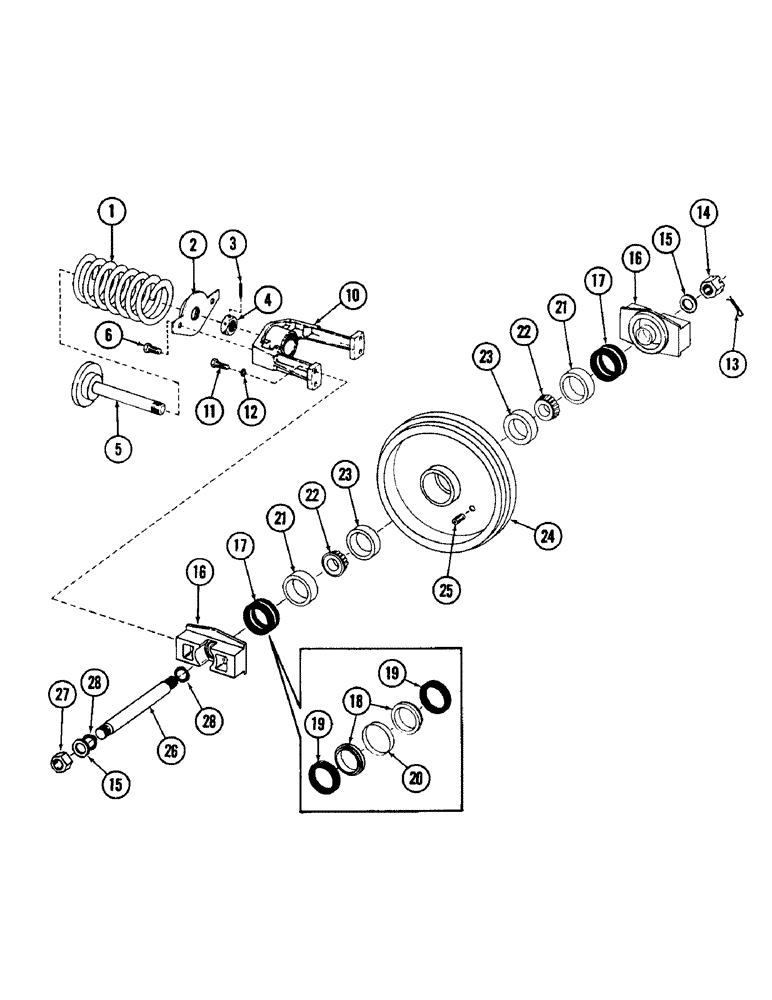

Запчасти Case 880 (146) - IDLER WHEEL AND TRACK ADJUSTER (04) - UNDERCARRIAGE

S505555

SPRING, track tension, Includes: Ref. 1 - 5

1шт.

1

S214697

SPRING

1шт.

2

S218861

PLATE

end

1шт.

3

138-141

LOCK PIN,1/4" x 1 7/8", Slotted

PIN, 1/4" x 1 7/8", Slotted

1шт.

4

S78770

NUT

- 1-1/4" - 7 NC

1шт.

5

S209093

GUIDE

ASSEMBLY

1шт.

6

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

4шт.

7

S218864

IDLE SHAFT

SHAFT, idler wheel

2шт.

8

131-92

LOCK NUT,1 1/2"-12

NUT, hex lock - 1-1/2" - 12 NF

2шт.

9

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

"O"RING

2шт.

10

S602025

YOKE

front idler

2шт.

11

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

8шт.

12

92-8

LOCK WASHER,1/2"

8шт.

13

132-102

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), 3/16" x 2 1/2"

1шт.

14

25-1324

SLOTTED NUT,1 1/2"-12, G5

NUT, castle - 1-1/2" - 12 NF

1шт.

15

D36065

WASHER

idler wheel shaft

2шт.

16

S505503

GUIDE

idler

2шт.

17

R39273

SEAL

face, Includes: Ref. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

BODY, seal - split

1шт.

D36826

SEAL KIT

KIT, repair, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL, rubber

2шт.

20

NSS

NOT SOLD SEPARAT

RETAINER, plastic

2шт.

21

D36069

RING

seal retaining

2шт.

22

51200231

BEARING, CONE,50.8mm ID x 30.96mm W

CONE, bearing

2шт.

23

A27732

BEARING CUP

CUP, bearing

2шт.

24

D42886

FRONT IDLER

WHEEL, idler

2шт.

25

221-841

PLUG

pipe hex socket head - 1/4" NPT

2шт.

26

S218864

IDLE SHAFT

SHAFT, idler wheel

2шт.

27

131-92

LOCK NUT,1 1/2"-12

NUT, hex lock - 1-1/2" - 12 NF

2шт.

28

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

"O" RING

2шт.
