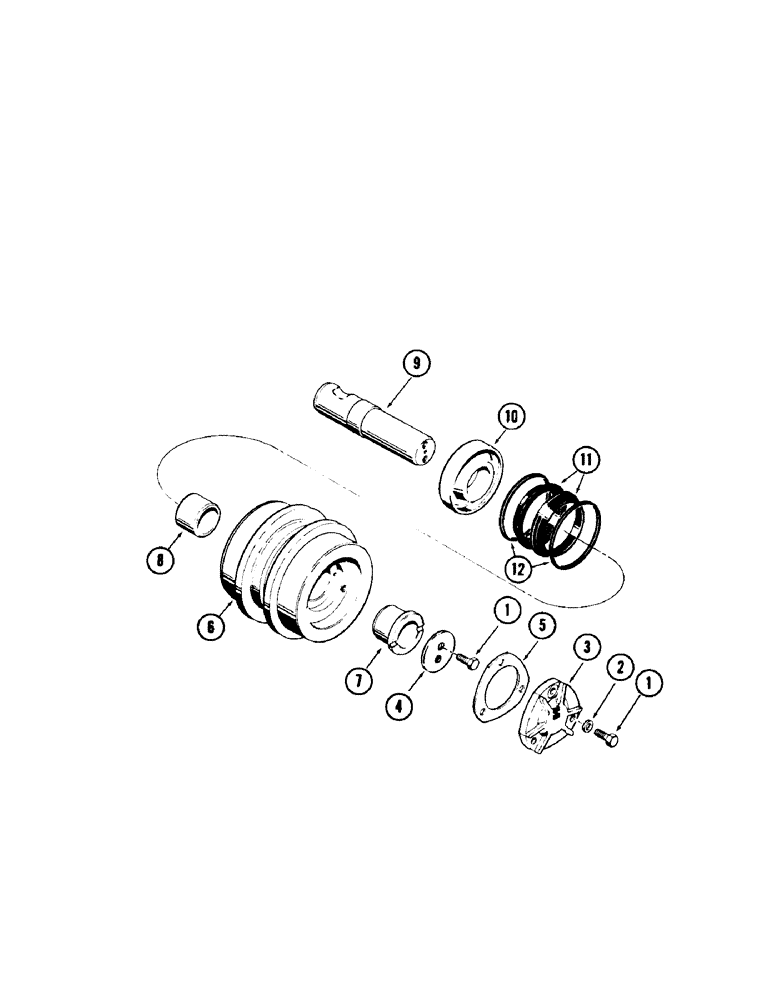

Запчасти Case 880 (144[1]) - TRACK ROLLER DOUBLE FLANGE (USED ON UNITS WITH SERIAL NUMBER 6201275 AND AFTER) (04) - UNDERCARRIAGE

R33965

ROLLER

track carrier, Includes: Ref. 1 - 12

4шт.

1

513-704

BOLT

HHCS - M10 x 1.5 x 20 grade 8.8

5шт.

2

D32117

COPPER WASHER

WASHER, COPPER, Hardened

3шт.

3

R33959

CYLINDER END CAP

CAP, roller

1шт.

4

R33960

PLATE

RETAINER, washer

1шт.

5

R33964

GASKET

cap

1шт.

R33967

CARRIER

HUB ASSEMBLY, roller, Includes: Ref. 6 - 8

1шт.

6

NSS

NOT SOLD SEPARAT

HUB, roller

1шт.

7

R33951

BUSHING

roller

1шт.

8

R33958

BUSHING

roller

1шт.

R33969

SHAFT

ASSEMBLY, roller, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

SHAFT, roller

1шт.

10

R33962

RETAINER

seal

1шт.

11

R33607

SEAL

face, Includes: Ref. 11 and 12

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL, rubber

2шт.

12

NSS

NOT SOLD SEPARAT

RING, sealing

2шт.
