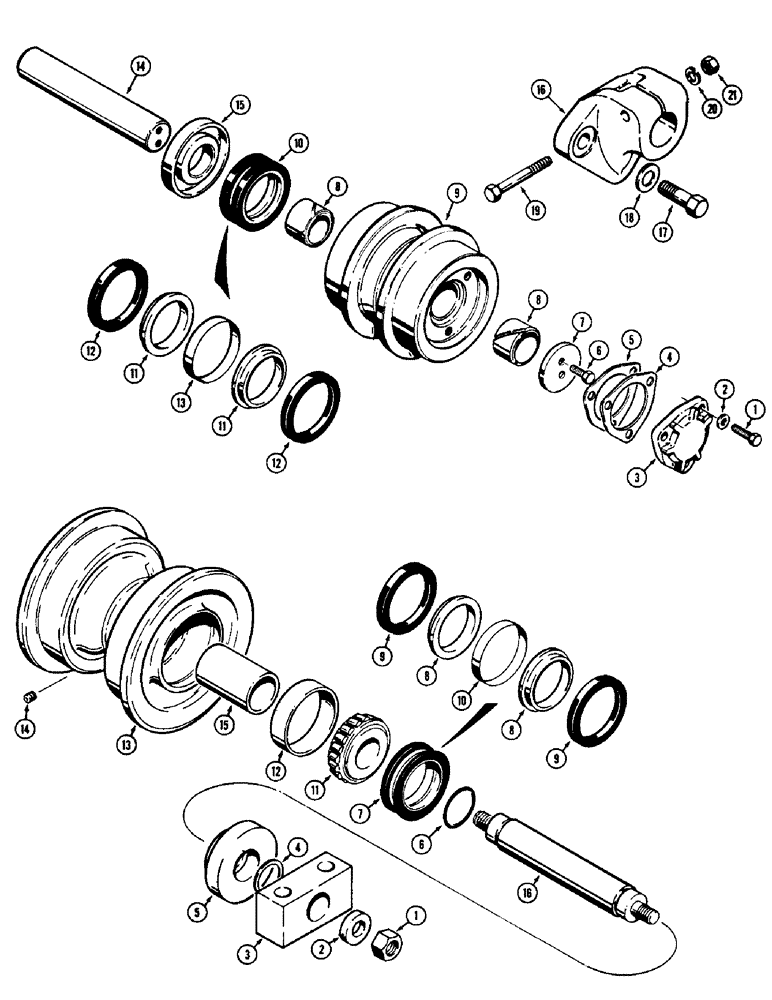

Запчасти Case 880 (142) - D48684 TRACK CARRIER ROLLER, (USED ON UNITS W/S.N. 6200000 - 6201274), FOR ID - SEE ITEM 3 OF ILL. (04) - UNDERCARRIAGE

D48684

ROLLER

- track carrier - (Order R33965), Includes: Ref. 1 - 21

2шт.

1

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

3шт.

2

D35288

WASHER

- copper

3шт.

3

R29288

COVER ASSY

COVER - roller

1шт.

4

D30384

SHIM,.010" Thk

(Brown) .010" Thk

1шт.

5

D30383

SHIM,.005" Thk

(.13 mm ), Blue .005" Thk

1шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

7

D30382

WASHER

- thrust

1шт.

8

D46396

BUSHING,44.51mm ID x 49.23mm OD x 31.75mm L

- split

2шт.

9

D49945

HUB CAP

HUB - roller

1шт.

10

D35267

SEAL

- face, Includes: Ref. 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

BODY - seal, split

2шт.

D36826

SEAL KIT

KIT - repair, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - rubber

2шт.

13

NSS

NOT SOLD SEPARAT

RETAINER - plastic

1шт.

14

D49100

SHAFT

- roller

1шт.

15

D35265

COLLAR

BUSHING - thrust

1шт.

16

D45485

BRACKET

- mount

2шт.

17

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

18

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- hardened

4шт.

19

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

20

92-8

LOCK WASHER,1/2"

2шт.

21

25-108

NUT,1/2"-13, G5

hex, 1/2" - 13 NC

2шт.

R24102

ROLLER

- track - (Order R33552), R24102 (single flange) (used on units with sn. 6200000 thru 6201274) for identification - see ref 3 of illustration, Includes: Ref. 1 - 16

8шт.

1

280375

NUT,3/4"-10, GC

NUT - hex, self lock, 3/4" - 10 NC, R24102 track roller (single flange) (used on units with sn. 6200000 thru 6201274) for identification - see ref 3 of illustration

2шт.

2

D44182

WASHER

- special, R24102 track roller (single flange) (used on units with sn. 6200000 thru 6201274) for identification - see ref 3 of illustration

2шт.

3

D36409

BLOCK

- roller, R24102 track roller (single flange) (used on units with sn. 6200000 thru 6201274) for identification - see ref 3 of illustration

2шт.

4

D31329

SHIM,.005" Thk

- .055" (.13 MM) thick, R24102 track roller (Single flange) (Used on units with S/N 6200000 thru 6201274) for identification - see Ref 3 of illustration

1шт.

5

D45502

BUSHING

- thrust, R24102 track roller (single flange) (used on units with sn. 6200000 thru 6201274) for identification - see ref 3 of illustration

2шт.

6

D27878

O-RING,1.609" ID x 1.887" OD

SEAL - o-ring, R24102 track roller (single flange) (used on units with sn. 6200000 thru 6201274) for identification - see ref 3 of illustration

2шт.

7

D35267

SEAL

- face, Includes: Ref. 8 - 13, R24102 track roller (single flange) (used on units with sn. 6200000 thru 6201274) for identification - see ref 3 of illustration

2шт.

8

NSS

NOT SOLD SEPARAT

BODY - seal, split, R24102 track roller (single flange) (used on units with sn. 6200000 thru 6201274) for identification - see ref 3 of illustration

2шт.

D36826

SEAL KIT

KIT - repair, R24102 track roller (single flange) (used on units with sn. 6200000 thru 6201274) for identification - see ref 3 of illustration, Includes: Ref. 9 and 10

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL - rubber, R24102 track roller (single flange) (used on units with sn. 6200000 thru 6201274) for identification - see ref 3 of illustration

2шт.

10

NSS

NOT SOLD SEPARAT

RETAINER - plastic, R24102 track roller (single flange) (used on units with sn. 6200000 thru 6201274) for identification - see ref 3 of illustration

1шт.

11

D44321

ROLLER BEARING,1.625" ID x 1.1875"

CONE - bearing, R24102 track roller (single flange) (used on units with sn. 6200000 thru 6201274) for identification - see ref 3 of illustration

2шт.

12

D44322

BEARING CUP,3.375" OD x 0.9375"

CUP - bearing, R24102 track roller (single flange) (used on units with sn. 6200000 thru 6201274) for identification - see ref 3 of illustration

2шт.

13

R24100

ROLLER

HUB - roller, single flange, R24102 track roller (single flange) (used on units with sn. 6200000 thru 6201274) for identification - see ref 3 of illustration

1шт.

14

221-841

PLUG

hex. socket head, 1/4" NPT, R24102 track roller (single flange) (used on units with sn. 6200000 thru 6201274) for identification - see ref 3 of illustration, Includes: Ref. 15 and 16

1шт.

15

D44183

SPACER

- bearing, R24102 track roller (single flange) (used on units with sn. 6200000 thru 6201274) for identification - see ref 3 of illustration

1шт.

16

D44184

SHAFT

- roller, R24102 track roller (single flange) (used on units with sn. 6200000 thru 6201274) for identification - see ref 3 of illustration

1шт.
