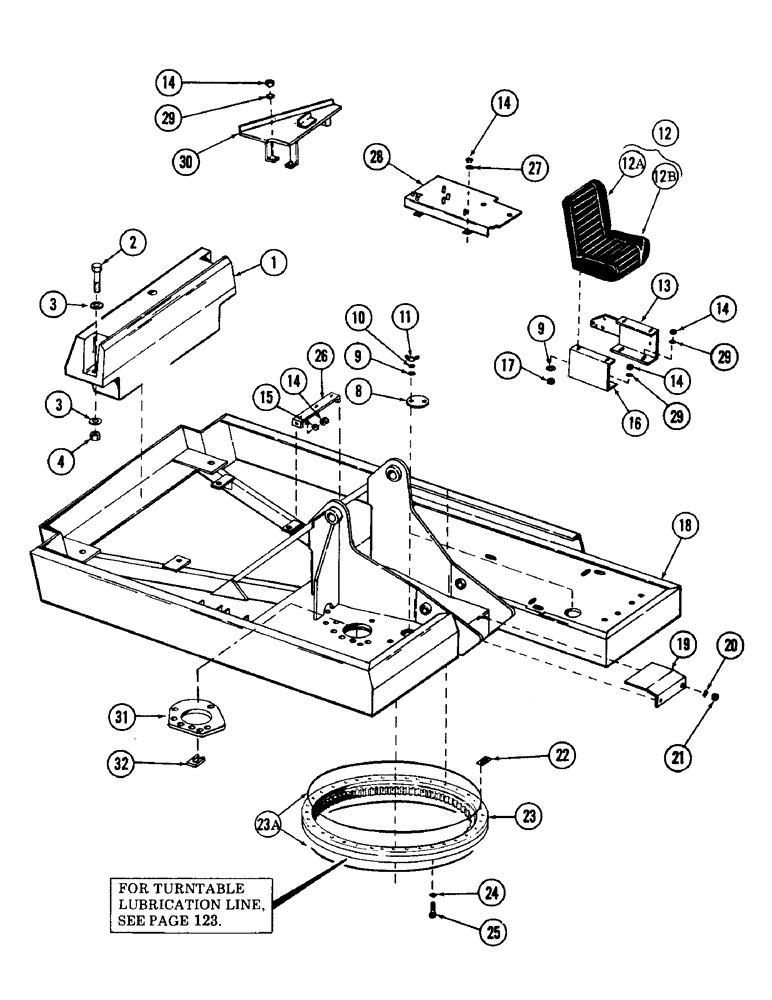

Запчасти Case 880 (120) - TURNTABLE, BEARING, COUNTERWEIGHT AND RELATED PARTS (04) - UNDERCARRIAGE

1

S602033

COUNTERWEIGHT

1шт.

2

13-1676

BOLT - 1" - 8 NC x 4-3/4" Hex, 1"-8 x 4 3/4", G5

2шт.

3

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- plain - 1-1/16" ID

4шт.

4

25-1016

NUT,1"-8, G5

2шт.

5

S86503

BOLT

- bearing to turntable - 5/8" - 11 NC x 2-1/4" (Special DMC bolt)

33шт.

7

S92353

WASHER

- hardened

29шт.

8

S76664

COVER

- bearing access

2шт.

9

05-5

WASHER - flat, 3/8"

8шт.

10

92-6

LOCK WASHER,3/8"

4шт.

11

129-410

WING NUT,3/8"-16

NUT - wing, 3/8-16 NC

4шт.

12

S220432

NO LONGER SERVICED

SEAT - operators, Includes: Ref. 12A and 12B

1шт.

12a

S111840

CUSHION

BACK - operators seat

1шт.

12b

S111829

CUSHION

- operators seat

1шт.

13

S506117

CHANNEL - seat mounting, left hand

1шт.

14

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

11шт.

15

95-8

WASHER,1/2"

flat 1/2"

6шт.

16

S219432

CHANNEL - seat mounting, right hand

1шт.

17

131-470

LOCK NUT

NUT - self locking, 5/16" - 18 NC

4шт.

18

S604781

TURNTABLE - machine, Serial Range: 6200000-6200911

1шт.

S606623

TURNTABLE - machine, Start Serial: 6200912

1шт.

19

S210964

COVER

- turntable bearing bolts

1шт.

20

95-5

WASHER,3/8" x 7/8" x .083"

- flat, 3/8"

2шт.

21

131-6

LOCK NUT,3/8"-16, GC

NUT - self locking, 3/8" - 16 NC

2шт.

22

S84889

SHIM,.003" Thk

Bearing to turntable .003" Thk

1шт.

S84890

SHIM,.007" Thk

Bearing to turntable .007" Thk

1шт.

S77916

SHIM,.005" Thk

Bearing to turntable .005" Thk

1шт.

S77917

SHIM,.010" Thk

Bearing to turntable .010" Thk

1шт.

S77918

SHIM,.015" Thk

Bearing to turntable .015" Thk

1шт.

S77919

SHIM,.030" Thk

Bearing to turntable .030" Thk

1шт.

S77920

SHIM,.060" Thk

Bearing to turntable .060" Thk

1шт.

23

S508668

SLEWING RING

BEARING - turntable

1шт.

Special tool required for installation of bearing - contact CE service training for details.

1шт.

23a

S105067

SEAL

- (Bulk) - 2 pieces x 138" long

1шт.

24

S92353

WASHER

- hardened

36шт.

25

S84906

BOLT

- bearing to flange - 5/8" - 11 NC x 2-1/4" (Special DMC bolt)

36шт.

26

S68667

BRACKET - hydraulic line clamp mounting

1шт.

27

196-15

WASHER,17/32" x 1 1/6" x .134"

- hardened

2шт.

28

S505720

PLATE

1шт.

29

S95569

WASHER

- hardened

7шт.

30

S506187

GUIDE - window storage

1шт.

31

S506965

SUPPORT

- swing reducer

1шт.

32

S84889

SHIM,.003" Thk

Reducer plate to turntable .003" Thk

1шт.

S84890

SHIM,.007" Thk

Reducer plate to turntable .007" Thk

1шт.

S77916

SHIM,.005" Thk

Reducer plate to turntable .005" Thk

1шт.

S77917

SHIM,.010" Thk

Reducer plate to turntable .010" Thk

1шт.

S77918

SHIM,.015" Thk

Reducer plate to turntable .015" Thk

1шт.

S77919

SHIM,.030" Thk

Reducer plate to turntable .030" Thk

1шт.

S77920

SHIM,.060" Thk

Reducer plate to turntable .060" Thk

1шт.
