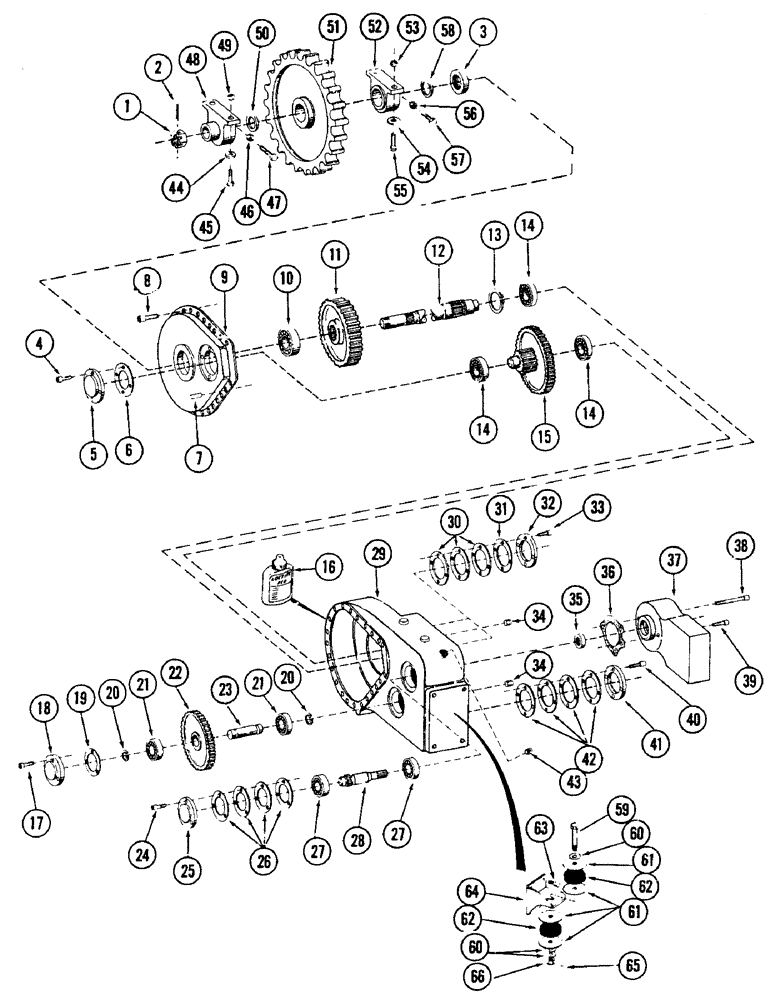

Запчасти Case 880 (138) - FINAL DRIVE TRANSMISSION, (USED ON UNITS WITH SERIAL NUMBER 621158 AND AFTER) (03) - TRANSMISSION

S604785

TRANSMISSION, final drive - (Right hand), Includes: Ref. 1 - 34

1шт.

S604786

TRANMISSION, final drive - (Left hand), Includes: Ref. 1 - 34

1шт.

1

25-1332

NUT,2"-12, G5

NUT - 2" - 12 NF

1шт.

2

138-164

LOCK PIN,5/16" x 2 3/4", Slotted

Pin, 5/16" x 2 3/4", Slotted

1шт.

3

S83874

OIL SEAL

SEAL, oil

1шт.

4

165-120

HEX SOC SCREW,Prev Torque, 3/8" - 16 x 7/8"

CPSW - 3/8" NC x 7/8" - (Socket head nylok)

4шт.

5

S217974

COVER

bearing

1шт.

6

S204088

SHIM,.010" Thk

Gasket .010" Thk

1шт.

7

S65037

DOWEL

- 5/8" x 1-1/4" long

2шт.

8

165-138

HEX SOC SCREW,Prev Torque, 1/2" - 13 x 1 1/8"

CPSW - 1/2" NC x 1-1/8" - (Socket head nylok)

21шт.

9

S952720

COVER

transmission

1шт.

10

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP, bearing

1шт.

A63185

ROLLER BEARING,85 mm ID x 130 mm OD x 24, 30.20 mm

CONE, bearing

1шт.

11

S603741

GEAR

output

1шт.

12

S59165

SHAFT

output

1шт.

13

A10000

SNAP RING,#306, Ext

Ring, Snap, #306, Ext

1шт.

14

S65025

BEARING ASSY

BEARING, roller

3шт.

15

S603740

GEAR

CLUSTER AND SHAFT

1шт.

16

D17423

LOCTITE - 10 CC bottle - (Red) - (Replaces transmission cover gasket - substitutes must not be used)

1шт.

17

165-120

HEX SOC SCREW,Prev Torque, 3/8" - 16 x 7/8"

CPSW - 3/8" Nc x 7/8" - (Socket head nylok)

3шт.

18

S210368

COVER

bearing

1шт.

19

S204092

SHIM,.010" Thk

Gasket .010" Thk

1шт.

20

A7409

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

2шт.

21

G57451

BEARING, CUP

CONE, bearing

2шт.

G57452

ROLLER BEARING

CUP, bearing

2шт.

22

S53338

GEAR

CLUSTER, intermediate

1шт.

23

S210366

SHAFT

intermediate

1шт.

24

165-120

HEX SOC SCREW,Prev Torque, 3/8" - 16 x 7/8"

CPSW - 3/8" NC x 7/8" - (Socket head nylok)

3шт.

25

S203411

COVER

bearing

1шт.

26

S204093

SHIM,.003" Thk

Gasket .003" Thk

1шт.

S204094

SHIM

GASKET, shim - .005"

1шт.

S204095

SHIM

GASKET, shim - .007"

1шт.

S204096

SHIM,.010" Thk

Gasket .010" Thk

1шт.

27

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CONE, bearing

2шт.

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CUP, bearing

2шт.

28

S508255

SHAFT

1шт.

29

S952724

HOUSING

transmission - (Right hand)

1шт.

29

S952725

HOUSING

transmission - (Left hand)

1шт.

30

S204085

GASKET

shim - .003"

1шт.

S204086

SHIM,.005" Thk

Gasket .005" Thk

1шт.

S204087

SHIM,.007" Thk

Gasket .007" Thk

1шт.

S204088

SHIM,.010" Thk

Gasket .010" Thk

1шт.

31

S204097

SHIM,.030" Thk

Gasket .030" Thk

1шт.

32

S217974

COVER

bearing

2шт.

33

165-120

HEX SOC SCREW,Prev Torque, 3/8" - 16 x 7/8"

CPSW - 3/8" - 16 NC x 7/8" - (Socket head nylok)

8шт.

34

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

PLUG, pipe - 3/4" NPT - (Socket head)

2шт.

35

S65001

OIL SEAL

oil - (Brake housing)

1шт.

36

S80305

GASKET

brake, Serial Range: housing-transmission

1шт.

37

S57642

HOUSING

track brake - (Right hand and left hand)

1шт.

38

165-123

HEX SOC SCREW,Prev Torque, 1/2" - 13 x 3"

CPSW - 1/2" NC x 3" - (Brake housing to transmission) - (Socket head nylok)

1шт.

39

165-138

HEX SOC SCREW,Prev Torque, 1/2" - 13 x 1 1/8"

CPSW - 1/2" NC x 1-1/8" - (Brake housing to transmission) - (Socket head nylok)

1шт.

40

165-120

HEX SOC SCREW,Prev Torque, 3/8" - 16 x 7/8"

CPSW - 3/8" NC x 7/8" - (Socket head nylok)

3шт.

41

S210368

COVER

bearing

1шт.

42

S204089

SHIM,.003" Thk

Gasket .003" Thk

1шт.

S204090

SHIM,.005" Thk

Gasket .005" Thk

1шт.

S204091

SHIM,.007" Thk

Gasket .007" Thk

1шт.

S204092

SHIM,.010" Thk

Gasket .010" Thk

1шт.

43

221-1665

PLUG,Hex Hd, 3/4"-14

pipe - 3/4" NPT - (Hexagon head) - (Breather hole)

1шт.

44

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER, flat - 5/8" (Hardened)

2шт.

45

26-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

CPSW - 5/8" - 11 NC x 3-1/2" - (Mounts pillow block to frame)

2шт.

46

25-1412

JAM NUT,Jam, 3/4"-10, G5

jam - 3/4" - 10 NC

1шт.

47

123-602

BOLT,Hex, 3/4" - 10 x 3", Gr 5, Full Thd

CPSW - 3/4" - 10 NC x 3" - (Pillow block adjustment)

1шт.

48

S209722

BLOCK

pillow - (Outer)

1шт.

49

131-460

LOCK NUT,5/8"-11

NUT, self locking - 5/8" - 11 NC

1шт.

50

S83872

SPACER

outer

1шт.

51

S608805

SPROCKET ASSY.

SPROCKET, drive

1шт.

52

S212544

BEARING CARRIER

BLOCK, pillow - (Inner)

1шт.

53

131-450

NUT,3/4"-10

NUT, self locking - 3/4" - 10 NC

2шт.

54

S84752

WASHER

flat - 3/4" - (hardened)

2шт.

55

113-788

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

CPSW - 3/4" - 10 NC x 4-1/2" - (Special) - (Mounts pillow block to frame)

2шт.

56

25-1412

JAM NUT,Jam, 3/4"-10, G5

jam - 3/4" - 10 NC

1шт.

57

132-602

CPSW - 3/4" - 1- NC x 3" - (Pillow block adjustment)

1шт.

58

S83873

SPACER

inner

1шт.

59

S91560

BOLT

CPSW - 1" NC x 6-1/2" - (Mounting, Serial Range: bracket-frame)

1шт.

60

196-55

WASHER,1.06" ID x 2.5" OD x 0.13" Thk

flat - 1-1/16" - (Special)

3шт.

61

S89925

WASHER

flat - 1" - (Special)

4шт.

62

S89926

SPRING

elastomer neoprene

2шт.

63

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

(Mounting bracket to transmission) Hex, 3/4"-10 x 1 1/2", G5

4шт.

64

S209229

BRACKET

transmission mounting - (Right hand) - (Illustrated)

1шт.

S209230

BRACKET

transmission mounting - (Left hand) - (Not illustrated)

1шт.

65

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

66

25-2416

SLOTTED NUT,1"-8, G5

NUT, castle - 1" - 8 NC

1шт.
