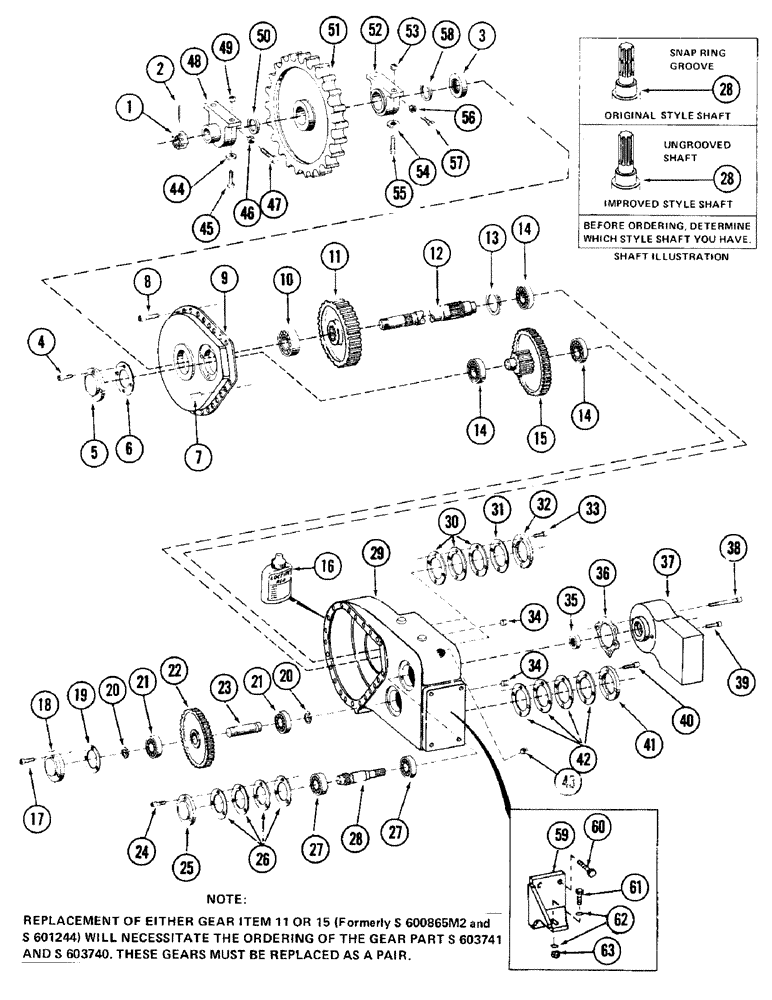

Запчасти Case 880 (132) - FINAL DRIVE TRANSMISSION, (USED ON UNITS WITH SERIAL NUMBER 6200000 THRU 6201157) (03) - TRANSMISSION

S602251

TRANSMISSION, final drive - (Right hand), Includes: Ref. 1 - 31

1шт.

S602252

TRANSMISSION, final drive - (Left hand), Includes: Ref. 1 - 31

1шт.

1

25-1332

NUT,2"-12, G5

NUT - 2" - 12 NF

1шт.

2

138-164

LOCK PIN,5/16" x 2 3/4", Slotted

Pin, 5/16" x 2 3/4", Slotted

1шт.

3

S65038

OIL SEAL

oil

1шт.

4

165-120

HEX SOC SCREW,Prev Torque, 3/8" - 16 x 7/8"

CPSW - 3/8" - 16 NC x 7/8" - (Socket head nylok)

4шт.

5

S217974

COVER

bearing

1шт.

6

S204088

SHIM,.010" Thk

Gasket .010" Thk

1шт.

7

S65037

DOWEL

- 5/8" x 1-1/4" long

2шт.

8

165-138

HEX SOC SCREW,Prev Torque, 1/2" - 13 x 1 1/8"

CPSW - 1/2" NC x 1-1/8" - (Socket head nylok)

21шт.

9

S952731

COVER, transmission

1шт.

10

A31232

ROLLER BEARING,2.875" ID x 1"

CONE, bearing

1шт.

A31233

CUP

bearing

1шт.

11

S603741

GEAR

output - (See note )

1шт.

12

S56790

SHAFT

output - (Replaces S58471)

1шт.

13

A10000

SNAP RING,#306, Ext

Ring, Snap, #306, Ext

1шт.

14

S65025

BEARING ASSY

BEARING, roller

3шт.

15

S603740

GEAR

CLUSTER AND SHAFT - (See note)

1шт.

16

B17423

LOCTITE

- 10 CC bottle - (Red) - (Replaces transmission cover gasket - substitutes must not be used)

1шт.

17

165-134

HEX SOC SCREW,Prev Torque, 3/8" - 16 x 3/4"

CPSW - 3/8" NC x 3/4" - (Socket head nylok)

3шт.

18

S210368

COVER

bearing

1шт.

19

S204092

SHIM,.010" Thk

Gasket .010" Thk

1шт.

20

A7409

SNAP RING,#137, Ext

Ring, Snap, #137, Ext

2шт.

21

G57541

CUP, bearing

2шт.

G57452

ROLLER BEARING

CONE, bearing

2шт.

22

S53338

GEAR

CLUSTER, intermediate

1шт.

23

S210366

SHAFT

intermediate

1шт.

24

165-134

HEX SOC SCREW,Prev Torque, 3/8" - 16 x 3/4"

CPSW - 3/8" NC x 3/4" - (Socket head nylok)

3шт.

25

S203411

COVER

bearing

1шт.

26

S204093

SHIM,.003" Thk

Gasket .003" Thk

1шт.

S204094

SHIM

GASKET, shim - .005"

1шт.

S204095

SHIM

GASKET, shim - .007"

1шт.

S204096

SHIM,.010" Thk

Gasket .010" Thk

1шт.

27

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CONE, bearing

2шт.

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CUP, bearing

2шт.

28

S508255

SHAFT

improved - (Without snap ring groove)

1шт.

S304044

SHAFT, origional style - (With snap ring groove) - (Replaced by kit, ref 66) - (See illustration)

1шт.

29

S952724

HOUSING

transmission - (Right hand)

1шт.

S952725

HOUSING

transmission - (Left hand)

1шт.

30

S204085

GASKET

shim - .003"

1шт.

S204086

SHIM,.005" Thk

Gasket .005" Thk

1шт.

S204087

SHIM,.007" Thk

Gasket .007" Thk

1шт.

S204088

SHIM,.010" Thk

Gasket .010" Thk

1шт.

31

S204097

SHIM,.030" Thk

Gasket .030" Thk

1шт.

32

S217974

COVER

bearing

2шт.

33

165-120

HEX SOC SCREW,Prev Torque, 3/8" - 16 x 7/8"

CPSW - 3/8" - 16 NC x 7/8" - (Socket head nylok)

8шт.

34

221-1845

DRAIN PLUG,Hex Soc, 3/4"-14, NPTF

PLUG, pipe - 3/4" NPT - (Socket head)

2шт.

35

S65001

OIL SEAL

oil - (Brake housing)

1шт.

36

S80305

GASKET

brake, Serial Range: housing-transmission

1шт.

37

S57642

HOUSING

track brake - (Right hand and left hand)

1шт.

38

165-123

HEX SOC SCREW,Prev Torque, 1/2" - 13 x 3"

CPSW - 1/2" NC x 3" - (Brake housing to transmission) - (Socket head nylok)

1шт.

39

165-138

HEX SOC SCREW,Prev Torque, 1/2" - 13 x 1 1/8"

CPSW - 1/2" NC x 1-1/8" - (Brake housing to transmission) - (Socket head nylok)

1шт.

40

165-134

HEX SOC SCREW,Prev Torque, 3/8" - 16 x 3/4"

CPSW - 3/8" NC x 3/4" - (Socket head nylok)

3шт.

41

S210368

COVER

bearing

1шт.

42

S204089

SHIM,.003" Thk

Gasket .003" Thk

1шт.

S204090

SHIM,.005" Thk

Gasket .005" Thk

1шт.

S204091

SHIM,.007" Thk

Gasket .007" Thk

1шт.

S204092

SHIM,.010" Thk

Gasket .010" Thk

1шт.

43

221-1665

PLUG,Hex Hd, 3/4"-14

pipe - 3/4" NPT - (Hexagon head) - (Breather hole)

1шт.

44

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

WASHER, flat - 5/8" (Hardened)

2шт.

45

26-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

CPSW - 5/8" - 11 NC x 3-1/2" - (Mounts pillow block to frame)

2шт.

46

25-1412

JAM NUT,Jam, 3/4"-10, G5

jam - 3/4" - 10 NC

1шт.

47

123-602

BOLT,Hex, 3/4" - 10 x 3", Gr 5, Full Thd

CPSW - 3/4" - 10 NC x 3" - (Pillow block adjustment)

1шт.

48

S209722

BLOCK

pillow - (Outer)

1шт.

49

131-460

LOCK NUT,5/8"-11

NUT, self locking - 5/8" - 11 NC

1шт.

50

S83872

SPACER

outer

1шт.

51

S602011

SPROCKET ASSY.

SPROCKET, drive

1шт.

52

S209721

BEARING CARRIER,2.5" ID

BLOCK, pillow - (Inner)

1шт.

53

131-460

LOCK NUT,5/8"-11

NUT, self locking - 5/8" - 11 NC

2шт.

54

95-9

WASHER

flat - 5/8"

2шт.

55

26-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

CPSW - 5/8" - 11 NC x 3-1/2" - (Mounts pillow block to frame)

2шт.

56

25-1412

JAM NUT,Jam, 3/4"-10, G5

jam - 3/4" - 10 NC

1шт.

57

123-602

BOLT,Hex, 3/4" - 10 x 3", Gr 5, Full Thd

CPSW - 3/4" - 10 NC x 3" - (Pillow block adjustment)

1шт.

58

S76255

SPACER

inner

1шт.

59

S209229

BRACKET

transmission mounting - (Right hand) - (Illustrated)

1шт.

S209230

BRACKET

transmission mount - (Left hand) - (Not illustrated)

1шт.

60

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

(Bracket to transmission) Hex, 3/4"-10 x 1 1/2", G5

4шт.

61

26-1648

BOLT,Hex, 1" - 8 x 3", Gr 8

CPSW - 1" - 8 NC x 3" - (Bracket to frame)

1шт.

62

S88635

WASHER, flat - 1"

2шт.

63

131-20

LOCK NUT,1"-8, GB

NUT, self locking - 1" - 8 NC

1шт.

64

178-861

SCREW, set

1шт.

65

S607927

SHAFT

KIT, shaft - (Includes shaft S508255, splined coupling S224667, and snap ring G46150) - (See figure 160)

1шт.

64

S209229

BRACKET

transmission mounting - (Right hand) - (Illustrated)

1шт.

S209230

BRACKET

transmission mounting - (Left hand) - (Not illustrated)

1шт.

65

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

66

25-2416

SLOTTED NUT,1"-8, G5

NUT, castle - 1" - 8 NC

1шт.

67

S607927

SHAFT

KIT, shaft - (Includes shaft S508255, splined coupling S224667, and snap ring G46150) - (See figure 160) - (Supersedes S34044)

1шт.

S608851

KIT

transmission improvement (Consists of refs. 3, 9, 10, 12, 51 thru 55 and 58 on page 99C and 99E)

1шт.
