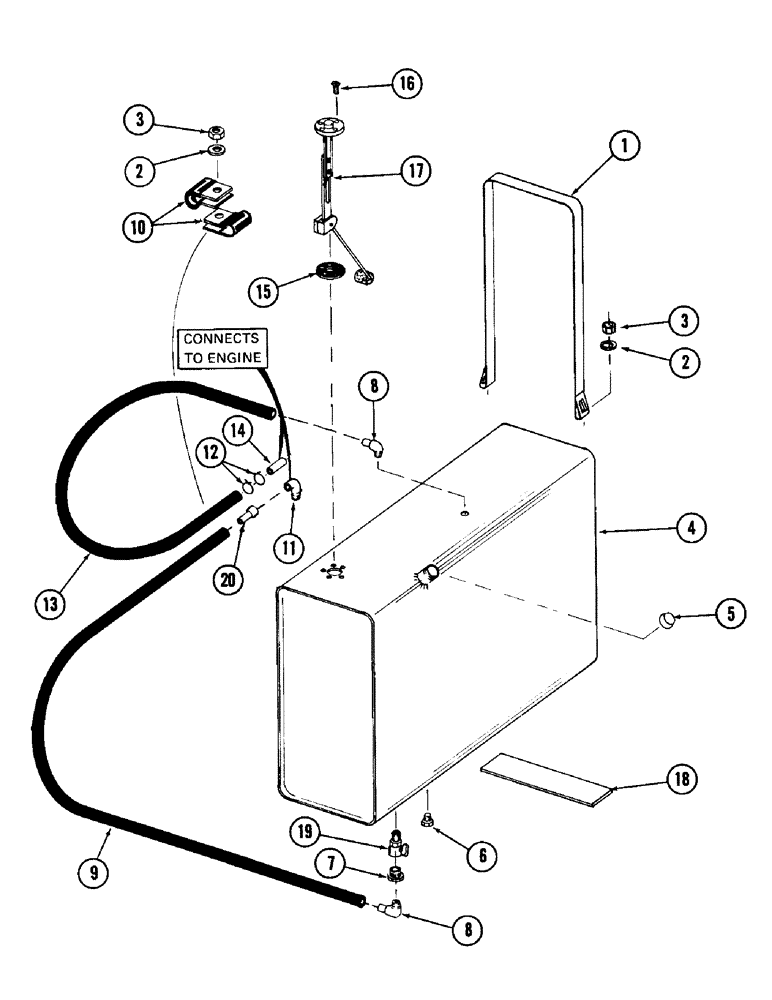

Запчасти Case 880 (102) - FUEL TANK AND LINES (02) - FUEL SYSTEM

1

S93863

STRAP

fuel tank mounting

2шт.

2

195-25

WASHER,3/8"

flat - 3/8"

5шт.

3

131-6

LOCK NUT,3/8"-16, GC

NUT, self locking - 3/8" - 16 NC

5шт.

4

S514118

FUEL TANK

TANK, fuel (Replaces S502212), Includes: Ref. 5

1шт.

5

A18870

FILLER CAP

CAP, fuel tank

1шт.

A32120 Cap, Locking w/ 2 Keys can be used for this unit

1шт.

6

221-1662

PLUG

fuel tank drain

1шт.

7

221-1086

REDUCER,3/8" NPT x 1/4" NPT

ADAPTER, reducing - 3/8" NPT male x 1/4" NPT female

1шт.

8

220-520

ELBOW,90 Degree, 1/8" NPT x 3/8" Barbed

2шт.

9

NSS

NOT SOLD SEPARAT

HOSE, fuel line 3/8" ID x 80" (Order A21562)

1шт.

10

NLS

NO LONGER SERVICED

hose

4шт.

11

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

90 degree - 1/4 NPT

1шт.

12

214-104

HOSE CLAMP,#9, 9/16", Spring

CLAMP

2шт.

13

NSS

NOT SOLD SEPARAT

HOSE, fuel line - 3/8" ID x 85" (Order A21562)

1шт.

14

S209418

LINE, fuel - return line to engine adapter

1шт.

15

S49745

GASKET

GASKET - fuel gauge sending unit

1шт.

16

174-100

SCREW,Sl Rnd Hd, #10 - 32 x 3/4"

machine - No. 10 - 32 NF x 3/4"

5шт.

17

S502600

SENDER UNIT

SENDING UNIT, fuel gauge

1шт.

18

S94118

PAD

rubber

1шт.

19

217-81

VALVE

shut off

1шт.

20

217-21

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

INSERT, hose

1шт.

A21562

HOSE,0.38" ID x 25.00"

0.38" ID x 25.00', Fuel

1шт.
