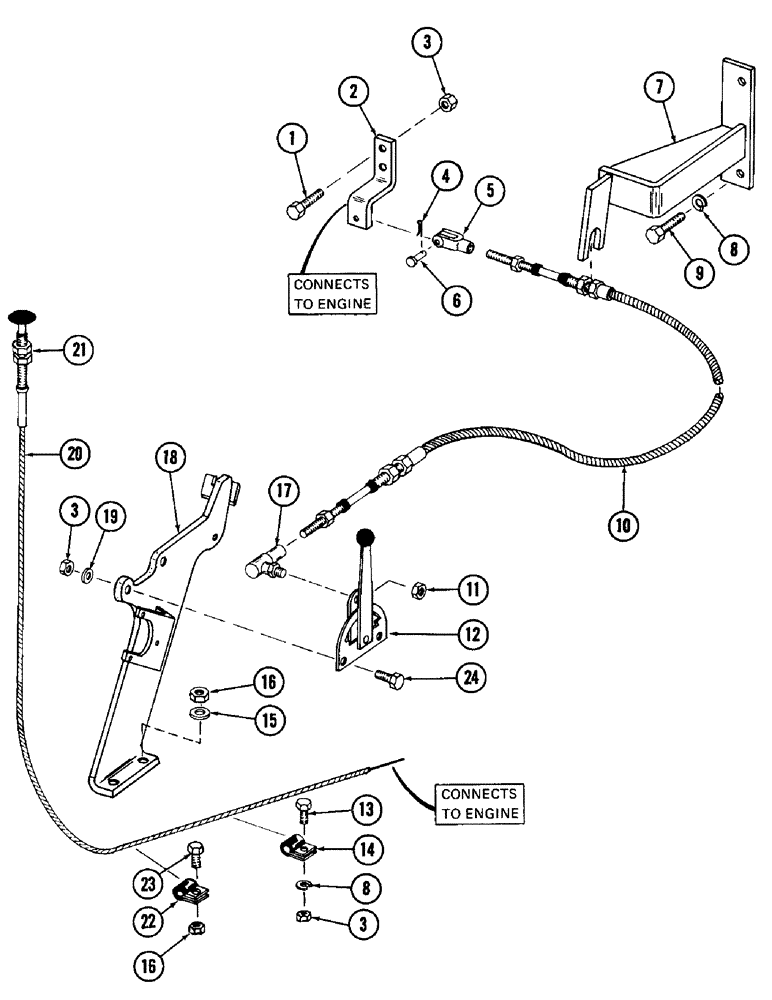

Запчасти Case 880 (104) - THROTTLE CONTROL (01) - ENGINE

1

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

2шт.

2

S92631

LEVER

throttle control

1шт.

3

131-2

NUT,1/4"-20, GB

NUT, self locking - 1/4" - 10 NC

4шт.

7

132-24

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

1шт.

5

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE

1шт.

6

S10714

CLEVIS PIN

PIN, clevis - 1/4" dia. x .648" grip length

1шт.

7

S602574

BRACKET, throttle control

1шт.

8

92-6

LOCK WASHER,3/8"

3шт.

9

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

10

S219334

CABLE

throttle control

1шт.

11

131-1

LOCK NUT,1/4"-28, GB

NUT, self locking

1шт.

12

S91894

CONTROL LEVER

LEVER, throttle

1шт.

13

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

CPSW - 1/4" - 30 NC x 1/2"

1шт.

14

S93104

CLAMP

1шт.

15

196-1

WASHER,13/32" x 13/16" x .089", HDN

hardened - 1/4"

2шт.

16

131-6

LOCK NUT,3/8"-16, GC

NUT, self locking - 3/8" 16 NC

3шт.

17

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT, ball

1шт.

18

S505702

BRACKET, throttle lever mounting

1шт.

19

195-18

WASHER,1/4"

flat - 1/4"

2шт.

20

S201620

CABLE

control - (Shut off)

1шт.

21

95-4

WASHER,1/4"

plain - 5/16"

1шт.

22

NLS

NO LONGER SERVICED

1шт.

23

13-68

SCREW,Hex, 3/8" - 16 x 1/2", Gr 5

CPSW - 3/8" - 16 NC x 1/2"

1шт.

24

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.
