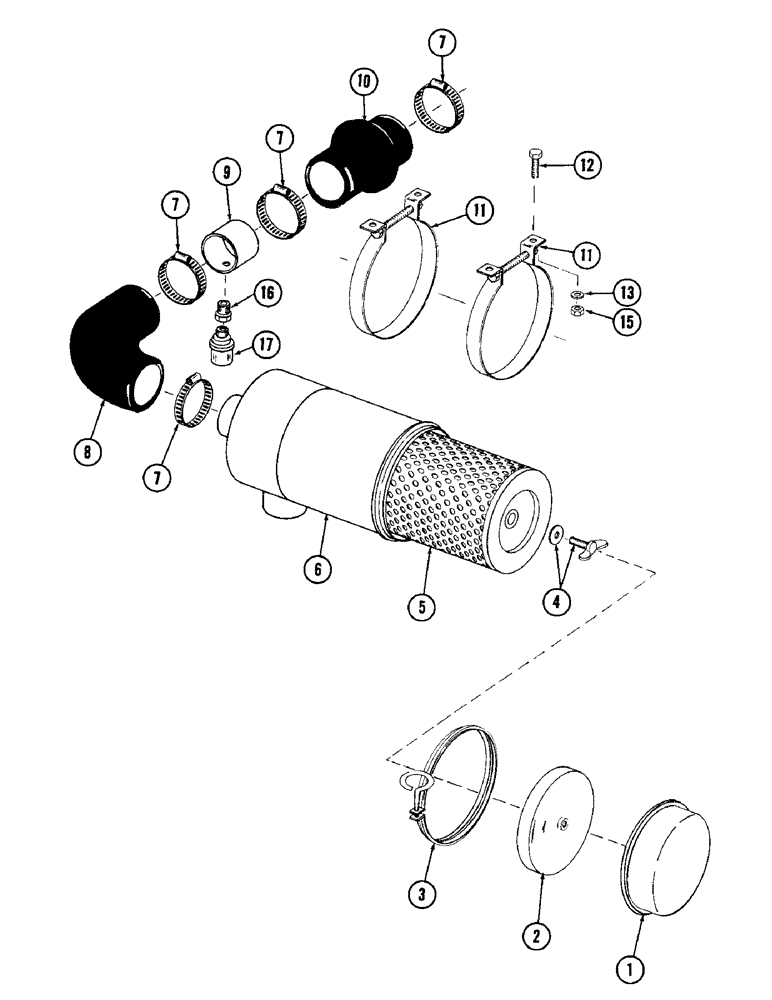

Запчасти Case 880 (100) - AIR CLEANER AND RELATED PARTS (01) - ENGINE

L52042

CLEANER

air - (Order D50917 for replacement), Includes: Ref. 1 - 6

1шт.

1

A40951

CUP

air cleaner

1шт.

2

D37979

BAFFLE

air cleaner

1шт.

3

R15731

CLAMP

ASSEMBLY, air cleaner

1шт.

4

F91761

WING NUT

ASSEMBLY, air cleaner

1шт.

5

A40866

AIR FILTER

ELEMENT, air cleaner

1шт.

6

NSS

NOT SOLD SEPARAT

BODY, air cleaner

1шт.

7

214-263

HOSE CLAMP,#48, 2.56" - 3.5", Type F Worm

CLAMP

4шт.

8

L17181

ELBOW

rubber

1шт.

9

S220418

TUBE

hose adapter

1шт.

10

S66853

HOSE

air cleaner - (Bulk) - 3" ID x 5" long, Serial Range: 6200000-6200012

1шт.

L49165

CONNECTOR, ELEC

CONNECTOR, rubber hump, Start Serial: 6200013

1шт.

11

S64722

BAND, slip

2шт.

12

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

13

195-25

WASHER,3/8"

flat - 3/8"

4шт.

15

131-6

LOCK NUT,3/8"-16, GC

NUT, self locking - 3/8" - 16 NC

4шт.

16

D36264

FITTING

CONNECTOR, special filter type

1шт.

17

A59568

INDICATOR

FILTER INDICATOR, air cleaner

1шт.

A40910

CLEANER

DETERGENT, 4 lb. box, to cleanse filter element

1шт.

D50917

CLEANER

air replacement, Includes: Ref. 1 - 6

1шт.

1

D50944

CUP ASSEMBLY, collector, replacement air cleaner

1шт.

2

D37979

BAFFLE

air cleaner, replacement

1шт.

3

R15731

CLAMP

BOLT AND CLAMP, replacement air cleaner

1шт.

4

D50940

BOLT

AND WASHER ASSEMBLY, replacement air cleaner

1шт.

5

D37975

FILTER

ELEMENT, air cleaner, replacement

1шт.

6

NSS

NOT SOLD SEPARAT

BODY, air cleaner, replacement

1шт.
