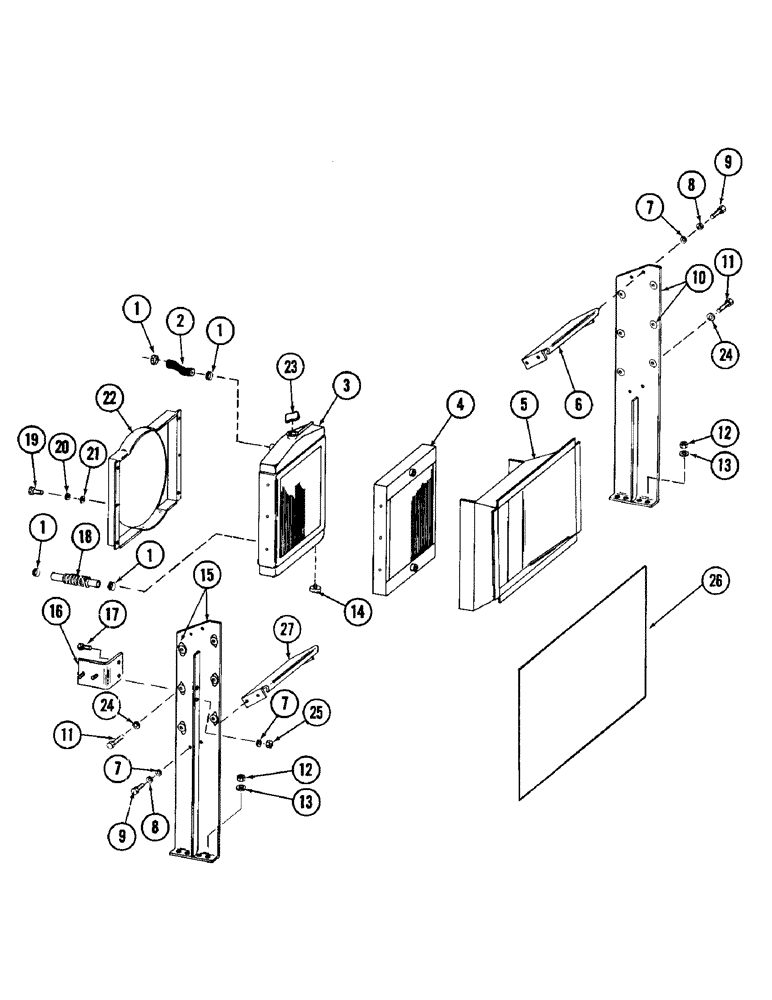

Запчасти Case 880 (098) - RADIATOR, OIL COOLER AND HOSES (01) - ENGINE

1

214-262

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm

CLAMP, hose

4шт.

2

S94322

RADIATOR HOSE,2.50" ID x 8.50", SAE 20R4 CLASS SC

- Upper 2.50" ID x 8.50", SAE 20R4 CLASS SC

1шт.

3

S505699

RADIATOR - (Includes cap)

1шт.

4

S601957

COOLER

oil

1шт.

5

S602300

SHROUD, air

1шт.

6

S219336

BRACKET, air shroud and cooler to radiator - (Top), Serial Range: 6200000-6200911

1шт.

S224302

BRACKET, air shroud and cooler to radiator - (Top), Serial Range: 6200912-6201140

1шт.

S509820

BRACKET, air shroud and cooler to radiator - (Top), Start Serial: 6201141

1шт.

7

95-4

WASHER,1/4"

flat - 5/16"

10шт.

8

92-5

LOCK WASHER,5/16"

8шт.

9

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

CPSW - 5/16" - 24 NC x 3/4" (Replaces 13-512)

8шт.

10

S509824

BRACKET

oil cooler and radiator

1шт.

S76804

MOUNTING PARTS

MOUNT, rubber

6шт.

11

S76819

STEP BOLT

BOLT, shoulder - 5/16" NC x 1-5/8"

12шт.

12

131-72

LOCK NUT,1/2"-13

NUT, self locking - 1/2" - 13 NC

8шт.

13

S43266

WASHER, hardened - 21/32"

8шт.

14

A23656

COCK, DRAIN

VALVE, radiator drain

1шт.

15

S509826

BRACKET

oil cooler and radiator

1шт.

S76804

MOUNTING PARTS

MOUNT, rubber

6шт.

16

S220540

BRACKET, relay mounting - (Used on units with 12 V system)

1шт.

S223882

BRACKET, relay mounting - (Used on units with 24 V system)

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

18

S85822

HOSE

2.50" ID x 16.00", Radiator, Lower

1шт.

19

75-45

SCREW, machine - 1/4" - 20 NC x 5/16"

6шт.

20

195-18

WASHER,1/4"

flat - 1/4"

6шт.

21

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER, lock - 1/4" - (Internal tooth)

6шт.

22

S602301

SHROUD

radiator

1шт.

23

D25826

CAP

radiator

1шт.

24

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

25

131-6

LOCK NUT,3/8"-16, GC

NUT, self locking - 3/8" - 16 NC

2шт.

26

M20696

SEAL

MOLDING, rubber - 1 piece x 102" long

1шт.

27

S219336

BRACKET, air shroud and cooler to radiator - (Bottom), Serial Range: 6200000-6200911

1шт.

S224306

BRACKET, air shroud and cooler to radiator - (Bottom), Serial Range: 6200912-9201140

1шт.

S509820

BRACKET, air shroud and cooler to radiator - (Bottom), Start Serial: 6201141

1шт.
