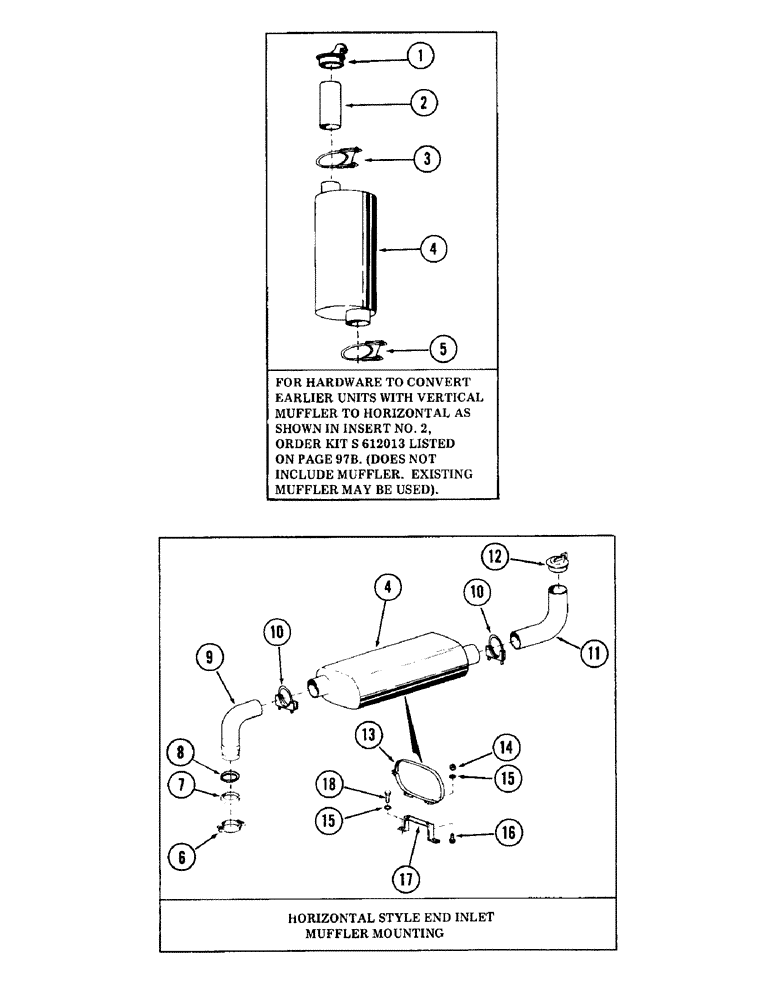

Запчасти Case 880 (097A) - HORIZONTAL STYLE END INLET MUFFLER MOUNTING (01) - ENGINE

1

A62175

CYLINDER END CAP

CAP - exhaust pipe, Serial Range: 6200000-6200911

1шт.

A19795

CAP

- exhaust pipe, Start Serial: 6200912

1шт.

2

S93395

PIPE

- exhaust, Serial Range: 6200000-6200911

1шт.

S98927

PIPE CLAMP

PIPE - exhaust, Start Serial: 6200912

1шт.

3

S85396

CLAMP

, Serial Range: 6200000-6200911

1шт.

4

S508420

MUFFLER

, Start Serial: 6200912

1шт.

5

L12413

CLAMP

, Start Serial: 6200912

1шт.

S612013

KIT

- muffler conversion, Includes: Ref. 6 - 18

1шт.

6

S107151

CLAMP

1шт.

7

S107152

GASKET

1шт.

8

S107845

RETAINER

1шт.

9

S234033

ELBOW

ASSY - flex joint

1шт.

10

L12413

CLAMP

2шт.

11

S99158

ELBOW

PIPE - exhaust

1шт.

12

A19795

CAP

- exhaust pipe

1шт.

13

S219850

BAND

BRACKET - muffler

2шт.

14

113-52

BOLT,Hex, 1/4" - 20 x 6", Gr 5

NUT - self locking - 3/8" NC

4шт.

15

195-525

WASHER,3/8", SAE

- flat - 3/8"

8шт.

16

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

17

S233209

BRACKET

-, Serial Range: (Muffler-shroud)

2шт.

18

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.
