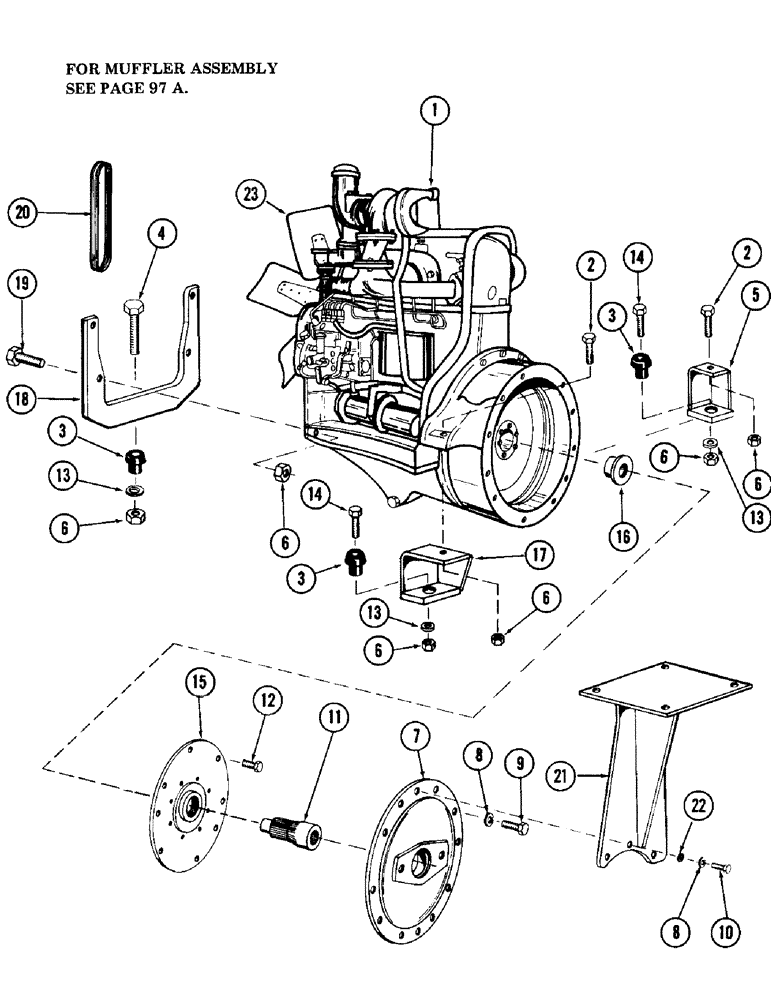

Запчасти Case 880 (096) - CASE 336BDT ENGINE RELATED PARTS (01) - ENGINE

1

REF

INSTRUCTION

ENGINE, 336BDT diesel (For breakdown, see figures 6 thru 76)

1шт.

2

113-731

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

CPSW - 1/2" - 13 NC x 2-1/4"

2шт.

3

A19066

MOUNTING PARTS

GROMMET, rubber

3шт.

4

113-718

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

3шт.

5

S220155

BRACKET, rear engine mount

1шт.

6

131-450

NUT,3/4"-10

NUT, self locking - 3/4" - 10 NC

9шт.

7

S52615

MOUNTING PARTS

MOUNTING, pump

1шт.

8

92-6

LOCK WASHER,3/8"

12шт.

9

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

10

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

11

S63201

COUPLING

1шт.

12

121-204

BOLT,Lock Place, Hex, 3/8" - 16 x 5/8", Gr 8

CPSW

8шт.

13

195-2270

WASHER,13/16" x 3" x .238", HDN

flat

3шт.

14

13-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

CPSW - 3/4" - 10 NC x 4-1/4"

2шт.

15

S33201

DAMPER

DAMPENER ASSEMBLY

1шт.

16

S87483

ADAPTER

1шт.

17

S220156

BRACKET, rear engine mount

1шт.

18

S219772

BRACKET, front engine mount

1шт.

19

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

4шт.

20

S86287

SET OF BELTS,0.69" W x 62.00" L

V- Belt (Matched set) 0.69" W x 62.00" L

1шт.

21

S614298

BRACKET, air cleaner mounting - (Used on units with serial number 6200013 and after)

1шт.

22

195-25

WASHER,3/8"

flat - 3/8"

3шт.

23

A15504

FAN

1шт.

Is a suction fan

1шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.
