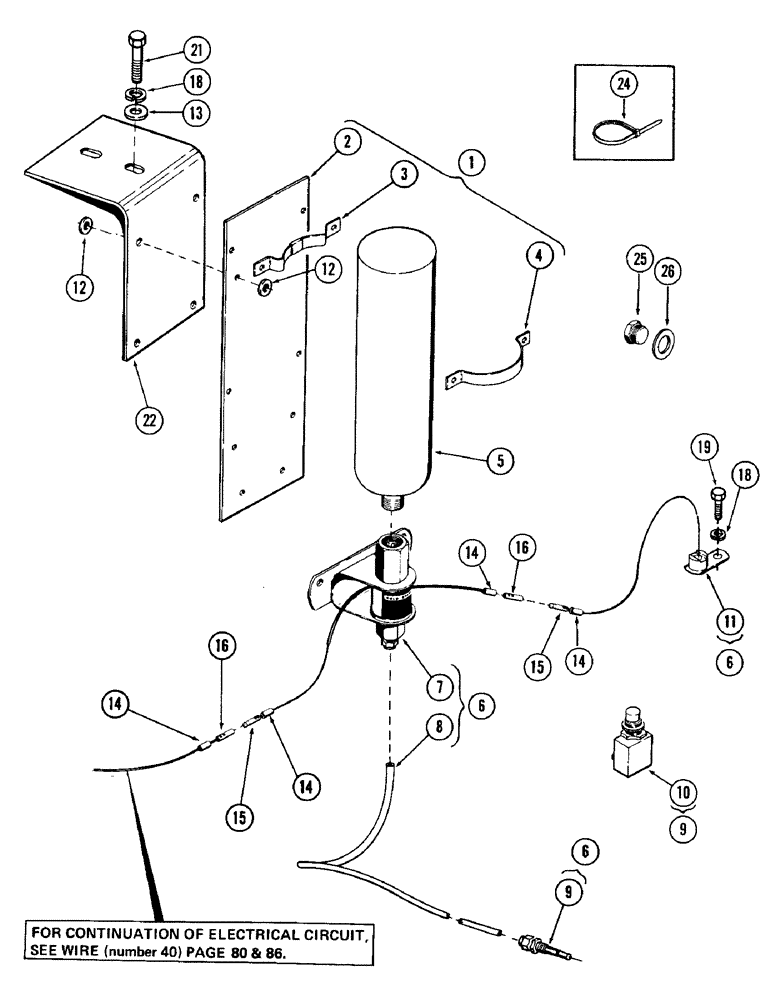

Запчасти Case 880 (094) - COLD WEATHER STARTING KIT (01) - ENGINE

S205216

THERMOSTART

KIT - cold weather starting, Includes: Ref. 1 - 26

1шт.

1

S116432

PLATE

- mounting assembly - (Includes all required hardware), Includes: Ref. 2 - 4

1шт.

2

S116433

PLATE

1шт.

3

S116435

BRACKET - cylinder mount

2шт.

4

S116435

CLAMP - cylinder

2шт.

5

D55767

CYLINDER

- cold start refill

1шт.

6

S116436

KIT

- cold start accessary, Includes: Ref. 7 - 11

1шт.

7

S96079

VALVE

- cold start actuator

1шт.

L35283

PACKAGE, REPAIR

KIT - actuator

1шт.

8

L35281

TUBE,0.125" OD x 60" L

- nylon - 1/8" OD x 60"

1шт.

9

S116437

JET

ASSEMBLY

1шт.

10

S116439

SWITCH

- electric push button

1шт.

11

S116438

CASE

THERMOSTAT - circuit breaking

1шт.

12

95-4

WASHER,1/4"

flat - 5/16"

8шт.

13

196-1

WASHER,13/32" x 13/16" x .089", HDN

flat - 3/8"

2шт.

14

L78495

SLEEVE,0.19" ID x 1.5" L

INSULATOR, connector

4шт.

15

L11778

CONNECTOR, ELEC

CONNECTOR, male bullet - (.180" dia.)

2шт.

16

L13437

CONNECTOR, female bullet - (.180" dia.)

2шт.

17

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

18

92-6

LOCK WASHER,3/8"

1шт.

19

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- 3/8" - 11 NC x 3/4"

1шт.

20

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- 3/8" - 11 NC x 1"

2шт.

22

S223039

ANGLE

1шт.

23

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

24

L18331

CABLE TIE,375.9mm L, Nylon, Black

TIE, cable

1шт.

25

A20917

PLUG

manifold heater hole - (1-1/8" - 12 NF)

1шт.

26

A20916

MANIFOLD GASKET

WASHER, plug

1шт.
