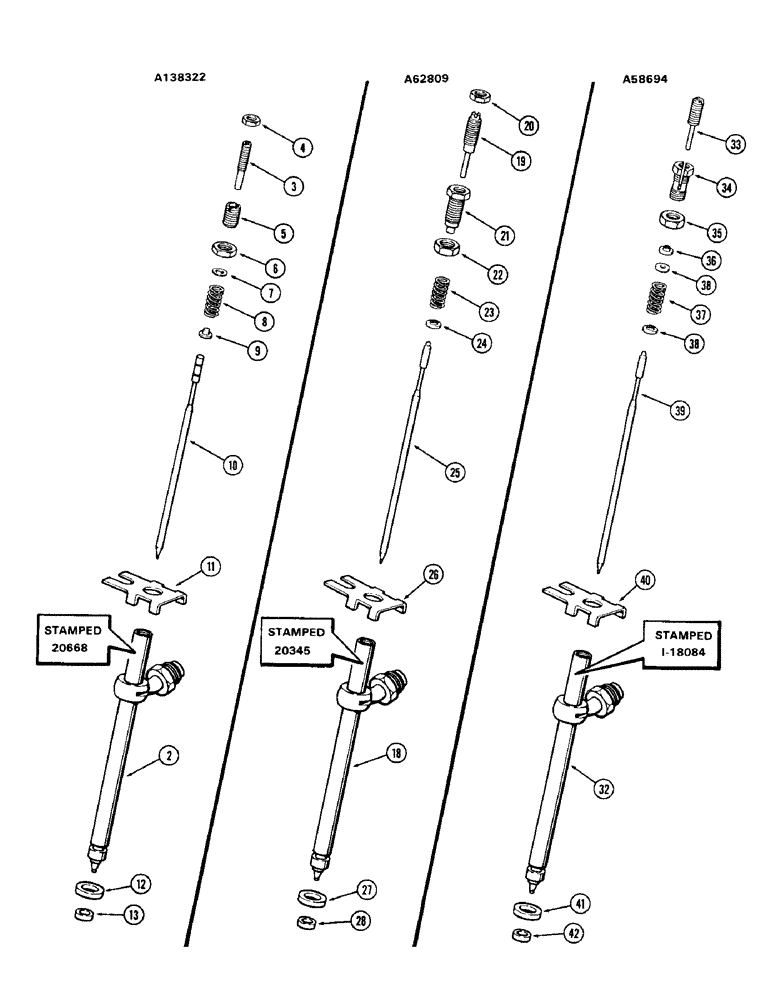

Запчасти Case 880 (054) - INJECTOR NOZZLES, A138322 NOZZLE (01) - ENGINE

A138322

NOZZLE CAP

NOZZLE ASSEMBLY - injector (Stamped 20668 on body) (Red color code), Includes: Ref. 2 - 13

4шт.

Whenever a nozzle is removed from the head, the seal, A41402 and washer, A41403 must be replaced before nozzle is installed back into the head.

1шт.

A138322R

REMAN-INJECT NOZZLE

880

4шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - nozzle

1шт.

3

A45293

ADJUSTMENT SCREW

SCREW - lift adjusting

1шт.

4

A43602

NUT

- lock, lift adjusting screw

1шт.

5

A45292

SCREW

- pressure adjusting

1шт.

6

A42424

LOCK NUT

- lock, pressure adjusting screw

1шт.

7

A45632

SHIM

SEAT - pressure spring, upper (Replaces A45291)

1шт.

8

A45290

SPRING

- pressure adjusting (11/16" free length) (Red color code)

1шт.

9

A45289

SEAT

- pressure spring, lower

1шт.

10

NSS

NOT SOLD SEPARAT

VALVE - nozzle

1шт.

11

A41768

PLATE

- nozzle locating

1шт.

12

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle body

1шт.

13

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop

1шт.

A62809

NOZZLE CAP

NOZZLE ASSEMBLY - injector (Order A138322) (Stamped 20345 on body) (Red color code), Includes: Ref. 18 - 28

4шт.

Whenever a nozzle is removed from the head, the seal, A41402 and washer, A41403 must be replaced before nozzle is installed back into the head.

1шт.

A138322R

REMAN-INJECT NOZZLE

880 REMAN FOR NEW P/N A62809

4шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - nozzle, A62809

1шт.

19

A43599

ADJUSTMENT SCREW,#10 - 56 x 1.39"

SCREW - lift adjusting, A62809 nozzle

1шт.

20

A43602

NUT

- lock, lift adjusting screw, A62809 nozzle

1шт.

21

A43600

ADJUSTMENT SCREW,#10 - 56 x 0.68"

SCREW - pressure adjusting, A62809 nozzle

1шт.

22

A42424

LOCK NUT

- lock, pressure adjusting screw, A62809 nozzle

1шт.

23

A43601

SPRING

- pressure adjusting (1/2" free length) (Brown stripe color code), A62809 nozzle

1шт.

24

A41401

SEAT

- spring, A62809 nozzle

1шт.

25

NSS

NOT SOLD SEPARAT

VALVE - nozzle, A62809

1шт.

26

A41768

PLATE

- nozzle locating, A62809

1шт.

27

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle body, A62809

1шт.

28

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, A62809

1шт.

A58694

NOZZLE

ASSEMBLY - injector (Order A138322) (Stamped I - 18084 on body) (No color code), Includes: Ref. 32 - 42

4шт.

Whenever a nozzle is removed from the head, the seal, A41402 and washer, A41403 must be replaced before nozzle is installed back into the head.

1шт.

A138322R

REMAN-INJECT NOZZLE

880 REMAN FOR NEW P/N A58694

4шт.

A138322C

CORE-NOZZLE, INJECT

Return Number

1шт.

32

NSS

NOT SOLD SEPARAT

BODY - nozzle, A58694

1шт.

33

A41408

ADJUSTMENT SCREW,#10 - 56 x 1.40"

SCREW - lift adjusting, A58694 nozzle

1шт.

34

A41409

ADJUSTMENT SCREW,5/16" - 48

SCREW - pressure adjusting, A58694 nozzle

1шт.

35

A42424

LOCK NUT

- lock, pressure adjusting screw, A58694 nozzle

1шт.

36

A41407

WASHER

- ball, A58694 nozzle

1шт.

37

A41444

VALVE SPRING

SPRING - pressure adjusting (1/2" free length) (No color code), A58694 nozzle

1шт.

38

A41401

SEAT

- spring, A58694 nozzle

2шт.

39

NSS

NOT SOLD SEPARAT

VALVE - nozzle, A58694

1шт.

40

A41768

PLATE

- nozzle locating, A58694

1шт.

41

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- nozzle body, A58694

1шт.

42

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon stop, A58694 nozzle

1шт.
