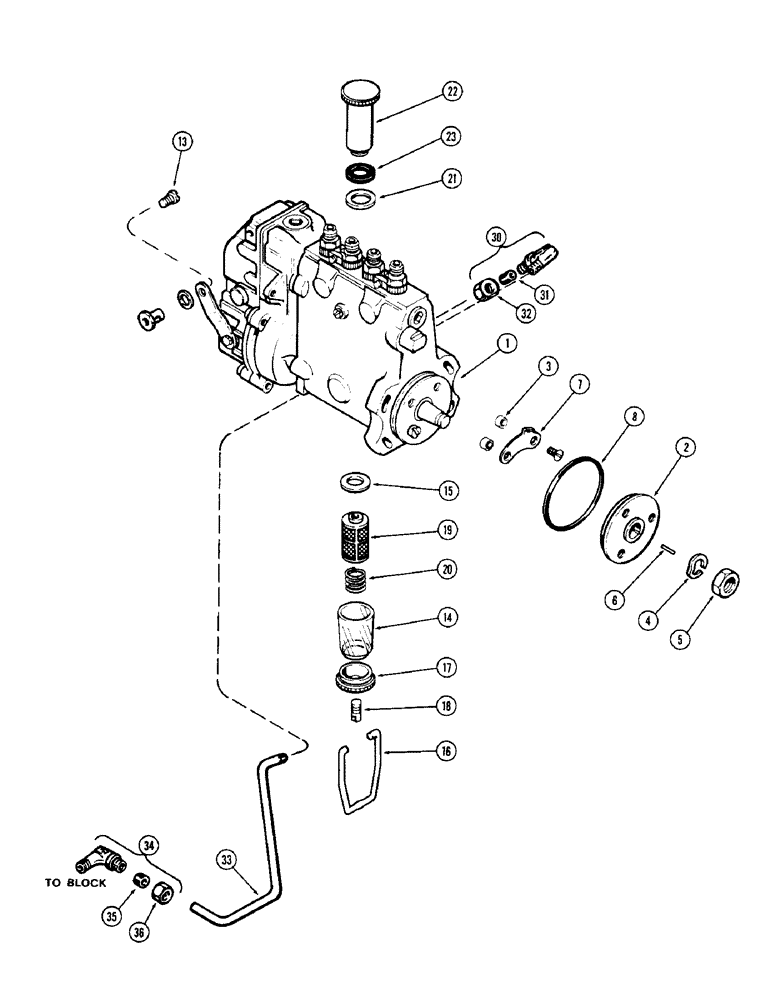

Запчасти Case 880 (050) - FUEL INJECTION PUMP, WITH LUBE TUBE ON OUTSIDE OF PUMP (01) - ENGINE

1

A138015

PUMP

ASSEMBLY - fuel injection (2200 RPM) (Bosch #PES4A01274004) (Replaces A62326), Includes: Ref. 2 - 23

1шт.

2

A41857

HUB

- pump drive

1шт.

3

A41859

BUSHING

SPACER - timing pointer

2шт.

4

A41851

LOCK WASHER

- lock, hub nut

1шт.

5

A41852

LOCK NUT

- hub

1шт.

6

A41850

KEY

-, Serial Range: hub-shaft

1шт.

7

A41858

INDICATOR

POINTER - pump adjustment

1шт.

8

A41856

O-RING,3mm Thk x 75mm ID

- pump hub, 2-15/16 x 3-3/16 x 1/8"

1шт.

13

A44259

SCREW

- stop cable lock

1шт.

14

A43347

BOWL

- filter (Glass)

1шт.

15

A43346

GASKET

- bowl

1шт.

16

A43350

CLAMP

SUPPORT - bowl

1шт.

17

A43348

NUT

- bowl support

1шт.

18

A43349

STUD

- bowl

1шт.

19

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

20

A43345

SPRING

- filter element

1шт.

21

A43351

SEAL

- copper

1шт.

22

A43343

CARTRIDGE

PUMP ASSEMBLY - hand primer, Includes: Ref. 23

1шт.

23

A45342

GASKET

- primer pump (rubber)

1шт.

30

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSEMBLY, Includes: Ref. 31 and 32

1шт.

31

222-102

SLEEVE,1/4" Tube

1шт.

32

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.

33

A136901

TUBE

- oil, Serial Range: gallery-pump

1шт.

34

222-43

ELBOW,90 Degree, 1/2"-24 Fem x 1/4"-27 NPTF

ASSEMBLY, Includes: Ref. 35 and 36

1шт.

35

222-102

SLEEVE,1/4" Tube

1шт.

36

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

1шт.
