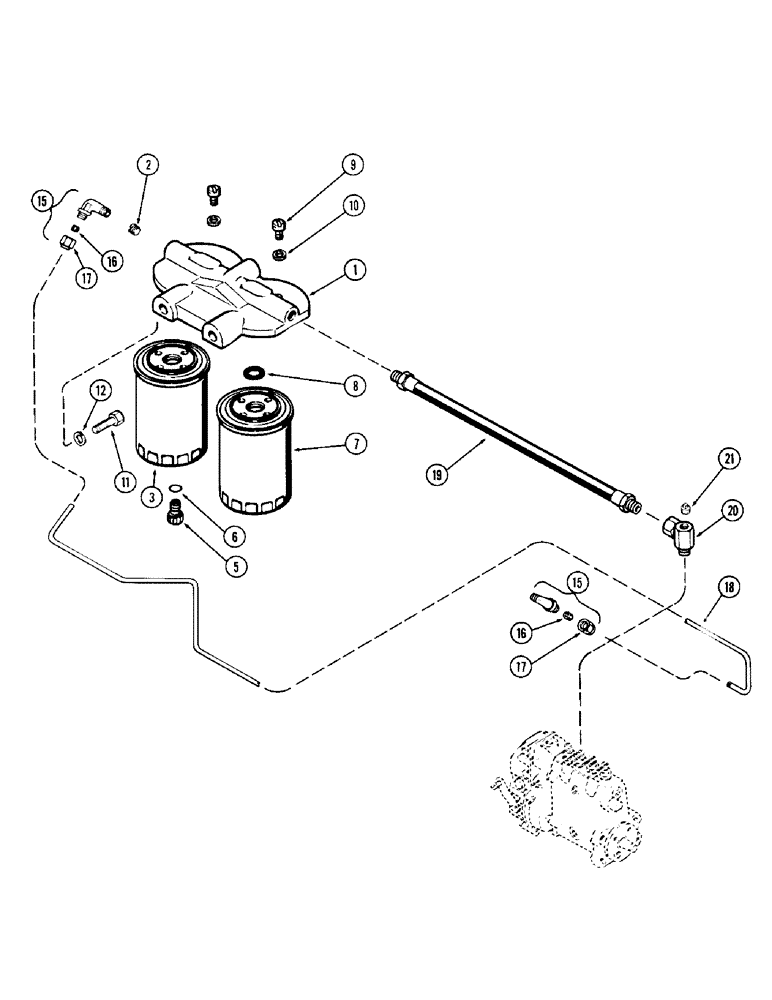

Запчасти Case 880 (046) - FUEL FILTER SYSTEM, 336BDT DIESEL ENGINE (01) - ENGINE

1

A62339

HEAD

ASSEMBLY - fuel filter, Includes: Ref. 2

1шт.

2

221-1849

PLUG

- 1/8" PT socket hex head

1шт.

CASA41745

FUEL FILTER

ELEMENT KIT - spin on filters, Includes: Ref. 3 - 8

1шт.

3

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY - 1st stage, Includes: Ref. 5 and 6

1шт.

5

221-1661

PLUG

- 1/8" PT hex head (Metal)

1шт.

5

G49080

PLUG

- 3/8" NF, 12 point head (Plastic)

1шт.

6

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk (Use with G49080 Plug)

1шт.

7

NSS

NOT SOLD SEPARAT

FILTER ASSEMBLY - 2nd stage, Includes: Ref. 8

1шт.

8

A42315

GASKET

-, Serial Range: filter-head

1шт.

9

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- air bleed, #10-32 x 5/16" fillister head

2шт.

10

A146368

WASHER,5.08mm ID x 9.65mm OD x 1.02mm Thk

- bleed screw, 3/16 x 3/8 x 1/16" aluminum

2шт.

11

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

15

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSEMBLY, Includes: Ref. 16 and 17

2шт.

16

222-103

SLEEVE,5/16" Tube

1шт.

17

222-113

TUBE NUT,9/16"-24

NUT - for 5/16" tube

1шт.

18

A62341

TUBE

- pump to 1st stage filter

1шт.

19

A58774

HOSE,19.05mm ID x 254mm L, SAE 100R6

- 2nd stage filter

1шт.

20

A20539

FITTING

UNION - (In pump)

1шт.

21

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" PT square head

1шт.
