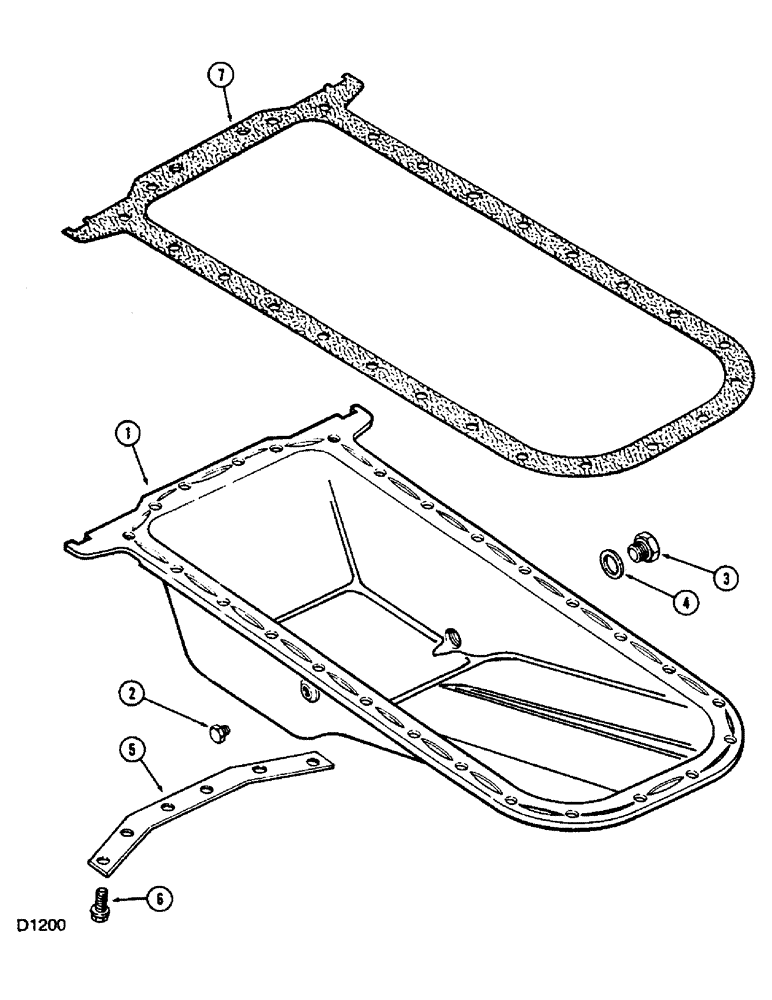

Запчасти Case 880 (038) - OIL PAN, 336BDT DIESEL ENGINE (01) - ENGINE

1

A62711

PAN

ASSEMBLY - oil, Includes: Ref. 2

1шт.

2

221-664

PLUG,Hex Hd, 1/2"-14

- 1/2" PT, hex head

1шт.

3

A34826

PLUG,7/8" - 18 ORB

- drain, oil pan

1шт.

4

A27968

RING

- drain plug

1шт.

5

A58932

STRAP

- reinforcing

1шт.

5

193-553

SCREW,SEMS, Hex Hd, 3/8"-16 x 7/8", G5

BOLT ASSEMBLY - pan, 3/8 x 7/8" NC hex with lockwasher

24шт.

7

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order A42221, see figure 41A)

1шт.
