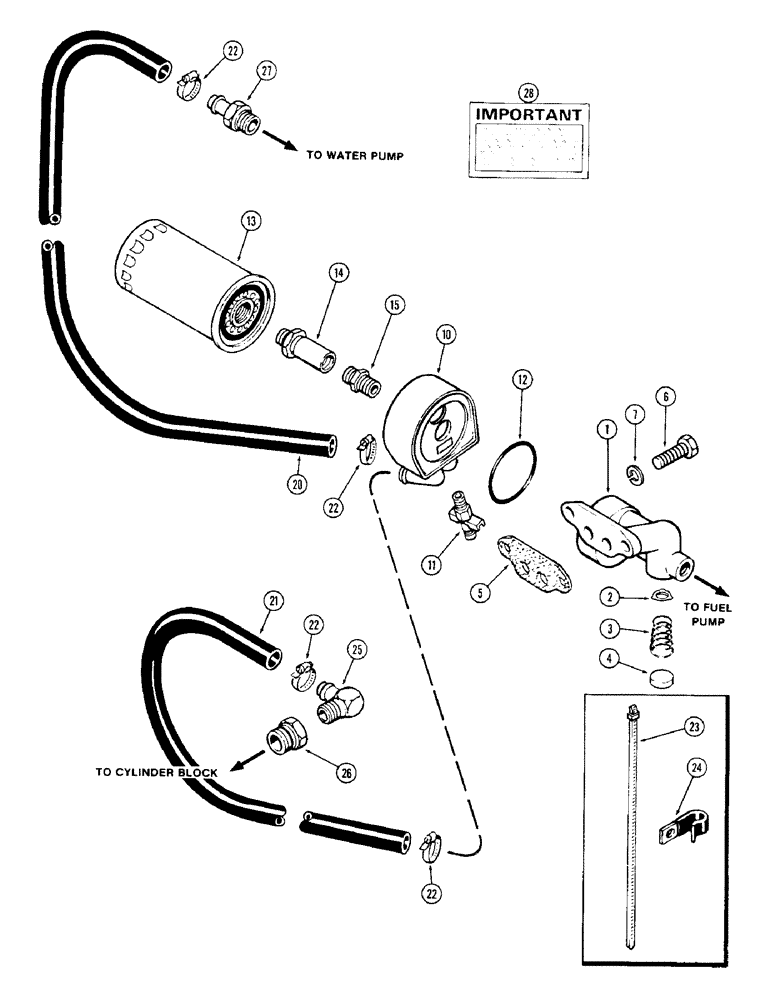

Запчасти Case 880 (034) - OIL FILTER AND COOLER, 336BDT DIESEL ENGINE, USED ENGINE S.N. 10093006 AND AFTER (01) - ENGINE

1

A58752

BASE

ASSEMBLY - oil cooler and filter, Includes: Ref. 2 - 4

1шт.

2

A58754

VALVE

- relief

1шт.

3

A58755

FILTER

SPRING - relief valve

1шт.

4

41-1016

PLUG,Cup, 1"

- relief valve, 1" cup type

1шт.

5

A58756

OIL PAN GASKET SET

- filter, Serial Range: base-block

1шт.

6

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- base to block, 1/2 x 1-3/4" NC hex

2шт.

7

92-8

LOCK WASHER,1/2"

2шт.

10

A66295

COOLER

- oil

1шт.

11

217-107

VALVE

DRAINCOCK - cooler (Discard 1/8" pipe plug in cooler)

1шт.

12

A153806

SEALING RING

- oil, cooler to base, 2-5/8 x 3 x 3/16" square

1шт.

13

A75294

ENGINE OIL FILTER

FILTER - oil

1шт.

14

A66992

ADAPTER

- (A75294 filter to A58757 adapter)

1шт.

15

A58757

ADAPTER

- (A66992 adapter to A66295 cooler)

1шт.

20

NSS

NOT SOLD SEPARAT

HOSE - water inlet, 47" long (Order A42610)

1шт.

21

NSS

NOT SOLD SEPARAT

HOSE - water outlet, 25" long (Order A42610)

1шт.

A42610

LARGE HOSE

HOSE - 5/8" ID x 1" OD x 50 feet (Cut to length required)

1шт.

22

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose, 9/16" to 1-1/16"

4шт.

23

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - hose tie

1шт.

24

A59718

CLAMP

- hose

1шт.

25

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - hose (90 degree)

1шт.

26

221-60

TUBE

REDUCER - (In block), Serial Range: 3/4"-1/2"

1шт.

27

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - hose (To water pump)

1шт.

28

321-3863

DECAL

- oil filter

1шт.
