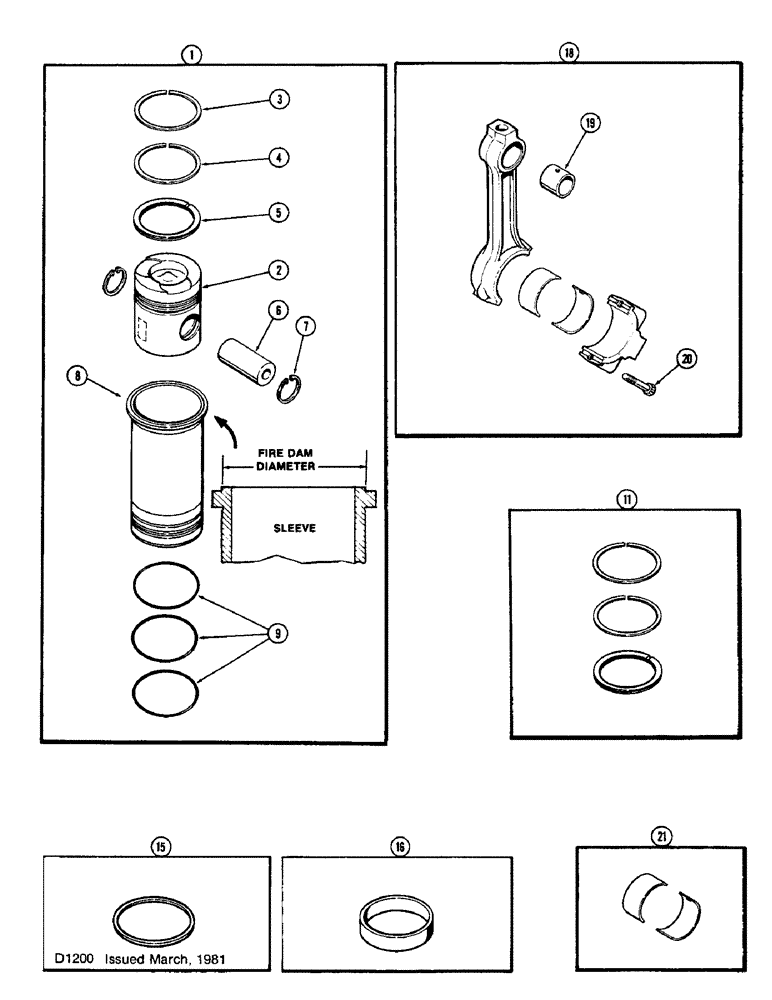

Запчасти Case 880 (026) - PISTONS & SLEEVES, W/5.189" TO 5.194" FIRE DAM DIA. SLEEVE, 336BDT DIESEL ENGINE (01) - ENGINE

1

A152177

SET

PISTON AND SLEEVE ASSEMBLY - engine (Set of 2), Includes: Ref. 2 - 9

2шт.

2

A146697

PISTON

PISTON - cylinder 4-5/8" bore (107.47 MM)

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression, top groove (Order Ref. 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, second groove (Order Ref. 11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control, third groove (Order Ref. 11)

2шт.

6

A58584

PIN,45.71mm OD x 98.17mm L

PIN - piston

2шт.

7

A44249

SNAP RING,1.812", Int, #181

Ring, Snap, , piston pin 1.812", Int, #181

4шт.

8

A153638

SLEEVE CYLINDER

SLEEVE - piston, three groove

2шт.

NSS

NOT SOLD SEPARAT

SLEEVE - piston, 2 groove (Order 3 groove sleeve A153638)

2шт.

9

A144667

O-RING,4.734" ID x 5.012" OD x 0.0139"

O-RING - sleeve

6шт.

11

A44054

RING

RING KIT - piston re-ring (Set of 1)

4шт.

15

A148553

SHIM

SHIM - sleeve, 0.010" (0.254 MM) (Repairs only)

1шт.

15

A148554

SHIM

SHIM - sleeve, 0.005" (0.127 MM) (Repairs only)

1шт.

16

A150327

BUSHING,129.06mm ID x 133.49mm OD x 30.15mm L

BUSHING - sleeve (Repairs only)

1шт.

A150328

ADHESIVE

LOCTITE - tube (Not shown)

1шт.

18

A65032

ROD

ROD ASSEMBLY - connecting, Includes: Ref. 19 and 20

4шт.

18

AR65032

REMAN-CONNECTING ROD

Remanufactured Connecting Rod

4шт.

18

AC65032

CORE-ROD CONNECTING

Return Part Number Core-Connecting Rod

4шт.

19

A58580

BUSHING,45.3mm ID x 50.46mm OD x 45.47mm L

BUSHING - piston pin, connecting rods

1шт.

20

A65757

FLANGE BOLT,1/2" - 20 x 2.31"

BOLT - connecting rod cap, connecting rods

2шт.

21

A41758

BEARING LINER

INSERT - connecting rod bearing (Standard) (Set of 2), connecting rods

4шт.

21

A41899

BEARING LINER

INSERT - connecting rod bearing, 0.002" (0.051 MM) undersize (Set of 2), connecting rods

4шт.

21

A41900

BEARING LINER

INSERT - connecting rod bearing, 0.010" (0.254 MM) undersize (Set of 2), connecting rods

4шт.

21

A41901

BEARING LINER

INSERT - connecting rod bearing, 0.020" (0.508 MM) undersize (Set of 2), connecting rods

4шт.

21

A41902

BEARING LINER

INSERT - connecting rod bearing, 0.030" (0.762 MM) undersize (Set of 2), connecting rods

4шт.
