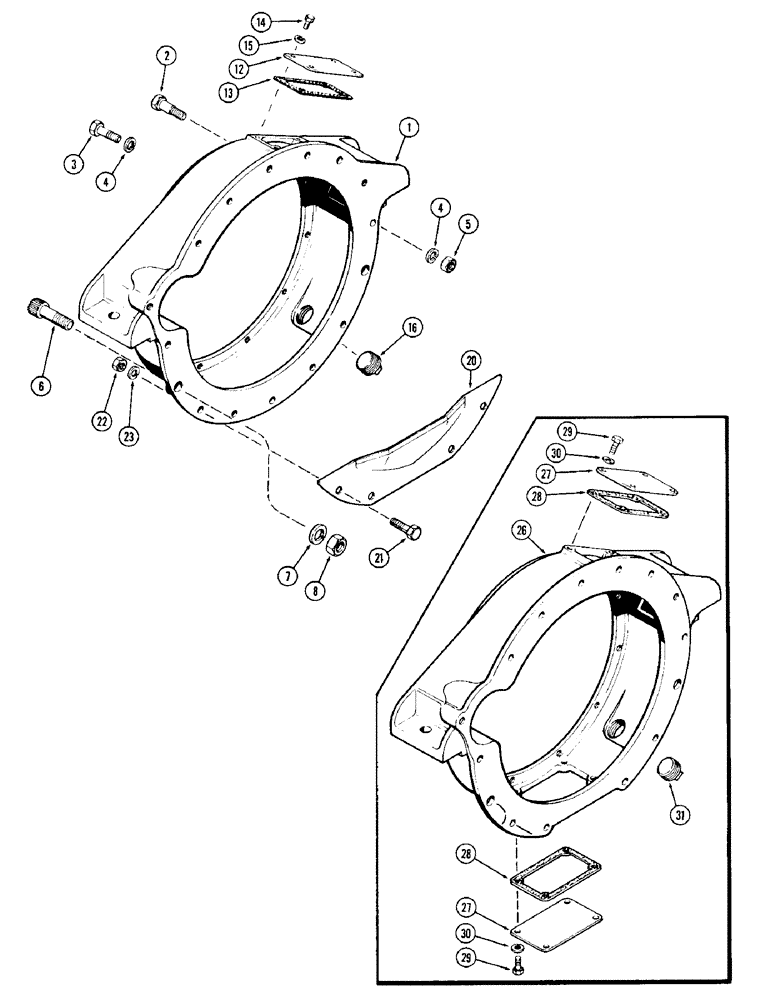

Запчасти Case 880 (024) - FLYWHEEL HOUSING, 336BDT DIESEL ENGINE (01) - ENGINE

1

A21040

HOUSING

- flywheel (Used in production only) (Order A153190 housing, Ref 26)

1шт.

2

A61041

STEP BOLT

BOLT - shoulder, 1/2 x 1-3/8" NC hex

1шт.

2

A61040

STEP BOLT

BOLT - shoulder, 1/2 x 2-13/16" NC hex

1шт.

3

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

3шт.

3

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2 x 1-3/4" NC hex

1шт.

3

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2 x 2-1/2" NC hex

3шт.

4

92-8

LOCK WASHER,1/2"

8шт.

5

25-108

NUT,1/2"-13, G5

- 1/2" NC hex

5шт.

6

166-138

12 PT SCREW,Flg, 3/4" - 10 x 3", Gr 8

BOLT - 3/4 x 3" NC, 12 point head

2шт.

7

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

8

25-1012

NUT,3/4"-10, G5

2шт.

12

A22584

COVER

PLATE - hand hole cover

1шт.

13

A22585

GASKET

- cover plate

1шт.

14

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

Plate to housing Hex, 5/16"-18 x 5/8", G5, Full Thd

4шт.

15

92-5

LOCK WASHER,5/16"

4шт.

16

221-17

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG - housing, 1-1/4" PT, square head

1шт.

20

A58931

GUARD

SHIELD - dust

1шт.

21

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Shield to housing Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

22

92-8

LOCK WASHER,1/2"

4шт.

23

25-108

NUT,1/2"-13, G5

- 1/2" NC hex

4шт.

26

A153190

HOUSING

ASSEMBLY - (Used for repairs), Includes: Ref. 27 - 31

1шт.

27

A22584

COVER

PLATE - hand hole cover

2шт.

28

A22585

GASKET

- cover plate

2шт.

29

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

8шт.

30

92-5

LOCK WASHER,5/16"

8шт.

31

221-17

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG - 1-1/4" PT, square head

1шт.
