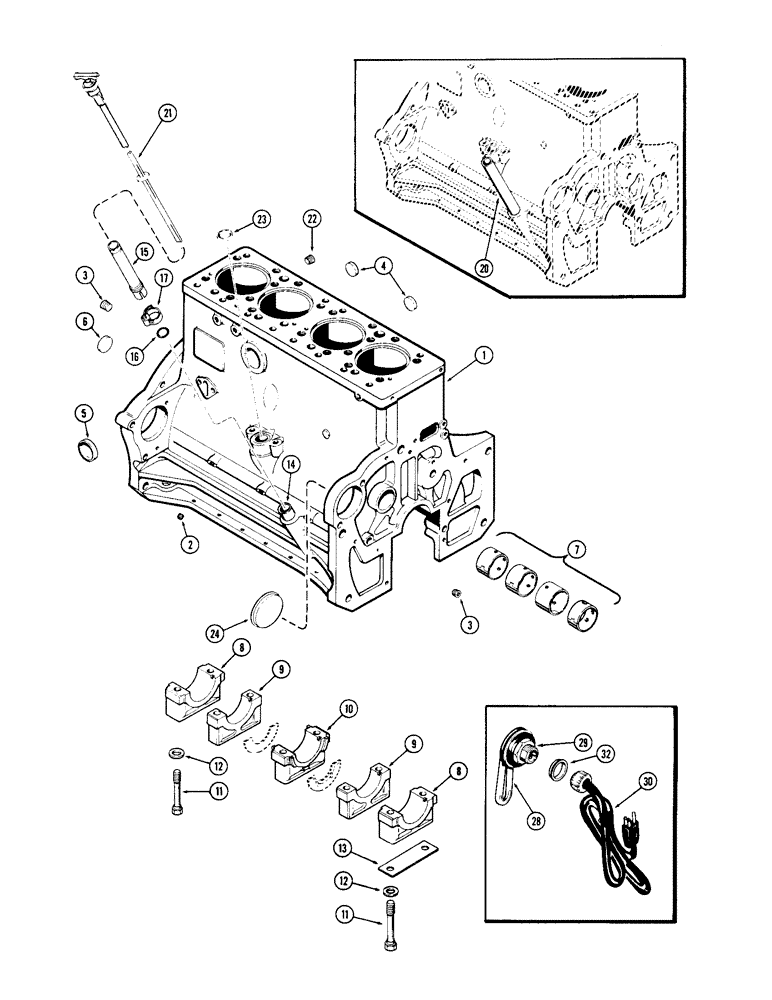

Запчасти Case 880 (018) - CYLINDER BLOCK, 336BDT DIESEL ENGINE, USED PRIOR TO ENGINE S.N. 10151851, USED W/ENGINE BALANCER (01) - ENGINE

A151237

SHORT ENGINE

BLOCK ASSEMBLY - short (Includes stripped block, camshaft, connecting rods and bearings, piston assembly, crankshaft and bearings and timing gears) (Replaces A43006 and A43146), Includes: Ref. 2 - 17

1шт.

1

A150868

BLOCK ASSY.

BLOCK ASSEMBLY - stripped (Replaces A42004), Includes: Ref. 2 - 17

1шт.

2

221-1849

PLUG

- oil gallery, 1/8" PT, socket head

2шт.

3

221-1843

PLUG

- oil gallery, 3/8" PT, socket head

3шт.

4

A58568

PLUG,Cup, 1 3/8", Stainless

- water gallery, 1-3/8" cup type

2шт.

5

A58569

PLUG,Cup, 2", Stainless

- heater hole, 2" cup type

1шт.

6

A24361

PLUG

- camshaft hole, 2-3/8" cup type

1шт.

7

REF

INSTRUCTION

BUSHING KIT - camshaft (See figure 14)

1шт.

8

A58562

CAP

- main bearing, front and rear (Wide)

2шт.

9

A58563

CAP

- main bearing, intermediate (Narrow)

2шт.

10

A58564

CAP

- main bearing, thrust, center (Wide)

1шт.

11

A66948

STEP BOLT

BOLT - bearing caps, 5/8" NC x 5"

10шт.

12

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - bearing cap bolts, 5/8 x 1 x 3/16"

10шт.

13

A58859

SHIM,.005" Thk

Front brg. cap .005" Thk

1шт.

14

A34540

TUBE

- oil filler and dipstick (4" long) (See Ref 20)

1шт.

15

A65778

TUBE

EXTENSION - oil filler tube (9-1/2" long) (See Ref 20)

1шт.

16

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

- extension, 1-1/8 x 1-3/8 x 1/8"

1шт.

17

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - extension tube, 1-3/16" to 1-3/4"

1шт.

20

A61842

TUBE

- oil filler and dipstick (11-3/4" long) (Long one piece tube used in production) (Can be ordered separately if required)

1шт.

21

A67028

DIPSTICK

ASSEMBLY - oil level (21-5/32" long) (Replaces A22589)

1шт.

22

221-845

PLUG,Hex Soc, 3/4"-14

- drain, cylinder block, 3/4" PT, socket head

1шт.

23

41-1022

PLUG,Cup, 1 3/8"

- tachometer drive hole, 1-3/8" cup type

1шт.

24

41-1052

PLUG,Cup, 3 1/4"

- auxiliary pump drive hole, 3-1/4" cup type

1шт.

A47474

HANDLE

HEATER ASSEMBLY - block (Replaces A42279 and A44812), Includes: Ref. 28 - 30

1шт.

28

NSS

NOT SOLD SEPARAT

ELEMENT ASSEMBLY - heater, block heater

1шт.

29

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- element, 1-3/4 x 2 x 1/8", block heater

1шт.

30

A44813

CABLE EXTENSION

CORD ASSEMBLY, 12" long (Replaces A42297), block heater

1шт.

A44006

SLEEVE

KIT - cylinder block heater hole, Includes: Ref. 32 and 33

1шт.

32

NSS

NOT SOLD SEPARAT

SLEEVE - 2-1/16" OD, block heater

1шт.

33

NSS

NOT SOLD SEPARAT

SLEEVE - 2-1/8" OD, block heater

1шт.
