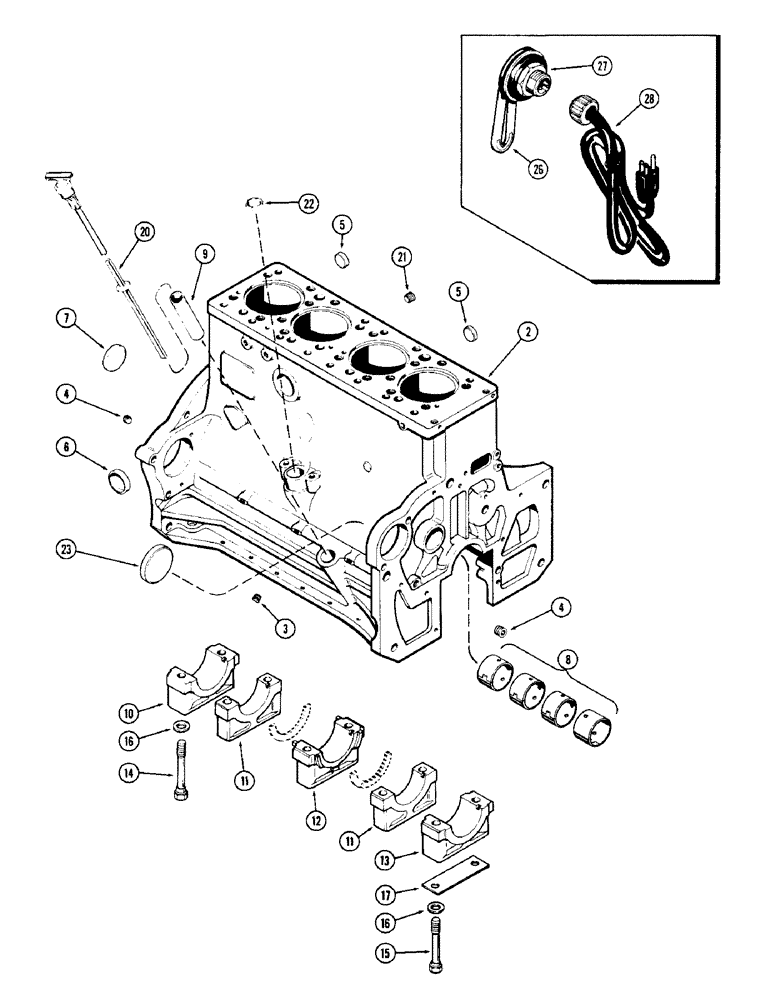

Запчасти Case 880 (016) - CYLINDER BLOCK, 336BDT DIESEL ENGINE, USED ENGINE SERIAL NO. 10151851, USED W/FRONT MOUNTED OIL PUMP (01) - ENGINE

A151749

SKELETON ENGINE

BLOCK ASSEMBLY - short (Includes stripped block camshaft, connecting rods and bearings, piston assembly, crankshaft and bearings and timing gears), Includes: Ref. 3 - 17

1шт.

2

A151757

BLOCK ASSEMBLY - stripped, Includes: Ref. 3 - 17

1шт.

3

221-1849

PLUG

- oil gallery, 1/8" PT, socket head

2шт.

4

221-1843

PLUG

- oil gallery, 3/8" PT, socket head

3шт.

5

A58568

PLUG,Cup, 1 3/8", Stainless

- water gallery, 1-3/8" cup type

2шт.

6

A58569

PLUG,Cup, 2", Stainless

- heater hole, 2" cup type

1шт.

7

A24361

PLUG

- camshaft hole, 2-3/8" cup type

1шт.

8

REF

INSTRUCTION

BUSHING KIT - camshaft (See figure 14)

1шт.

NO LONGER AVAILABLE AS KIT. SEE FIGURE 14

1шт.

9

A34540

TUBE

- oil filler and dipstick

1шт.

10

A58562

CAP

- main bearing, rear (Wide)

1шт.

11

A58563

CAP

- main bearing, intermediate (Narrow)

2шт.

12

A58564

CAP

- main bearing, thrust, center (Wide)

1шт.

13

A58561

CAP

- main bearing, front (Wide)

1шт.

14

A66948

STEP BOLT

BOLT - bearing caps, 5" NC x 5"

8шт.

15

A66949

STEP BOLT

BOLT - front bearing cap, 5/8" NC x 7-1/4"

2шт.

16

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - bearing cap bolts, 5/8 x 1 x 3/16"

10шт.

17

A58859

SHIM,.005" Thk

Oil pump to cap .005" Thk

1шт.

20

A138330

DIPSTICK

ASSEMBLY - (12-7/8" long)

1шт.

21

221-845

PLUG,Hex Soc, 3/4"-14

- drain, cylinder block, 3/4" PT, socket head

1шт.

22

41-1022

PLUG,Cup, 1 3/8"

- tachometer drive hole, 1-3/8" cup type

1шт.

23

41-1052

PLUG,Cup, 3 1/4"

- auxiliary pump drive hole, 3-1/4" cup type

1шт.

A47474

HANDLE

HEATER ASSEMBLY - block (Replaces A44812), Includes: Ref. 26 - 28

1шт.

26

NSS

NOT SOLD SEPARAT

ELEMENT ASSEMBLY - heater, block

1шт.

27

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

- element, 1-3/4 x 2 x 1/8", block heater

1шт.

28

A44813

CABLE EXTENSION

CORD ASSEMBLY - 12" long, block heater

1шт.
