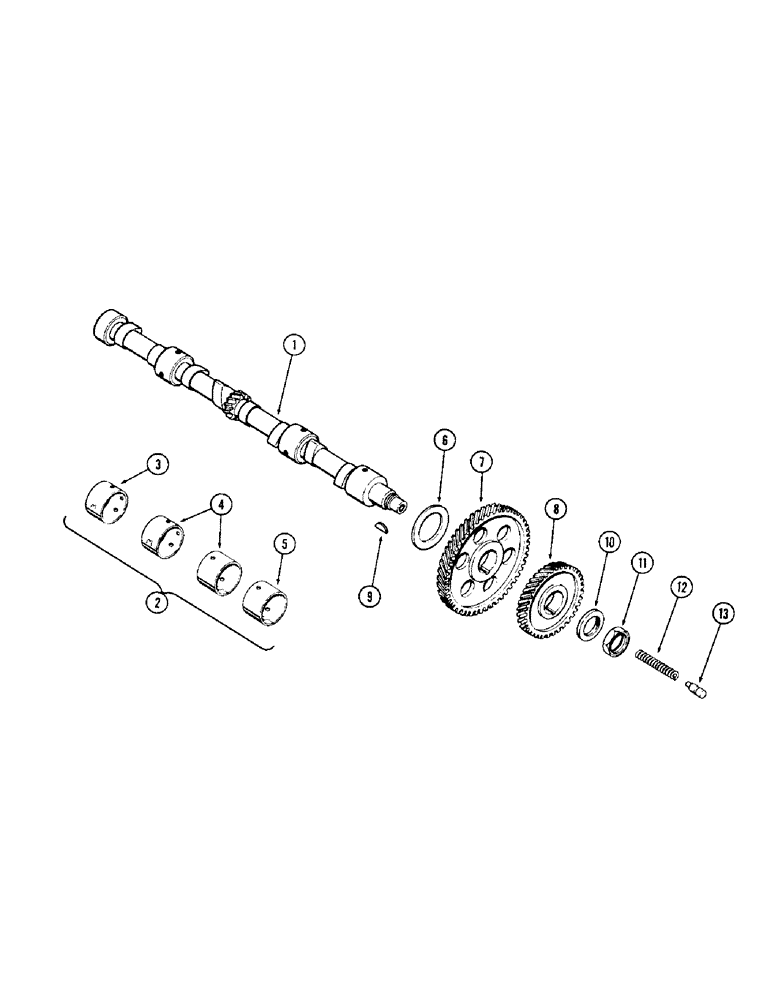

Запчасти Case 880 (014) - CAMSHAFT, 336BDT DIESEL ENGINE (01) - ENGINE

1

A66742

CAMSHAFT

- (Replaces A62733)

1шт.

2

A23577

KIT

BUSHING KIT - camshaft, Includes: Ref. 3 - 5

1шт.

NO LONGER AVAILABLE AS KIT; SUBS TO REF. NOS. 3, 4, & 5, AS PRIME PARTS. ORDER IN QTYS SHOWN

1шт.

3

A21018

BUSHING,57.11mm ID x 60.33mm OD x 42.32mm L

- rear, 1-3/16" wide

1шт.

4

A21019

BUSHING,57.05mm ID x 60.33mm OD x 36.63mm L

- intermediate, 1-7/16" wide

2шт.

5

A23487

BUSHING,44.35mm ID x 60.3mm OD x 29.62mm L

- front, 1-11/16" wide

1шт.

6

A21017

WASHER

- thrust, 2-1/4 x 3-1/4 x 1/8"

1шт.

7

A58592

GEAR

- camshaft

1шт.

8

A58593

GEAR

- idler drive

1шт.

9

126-227

WOODRUFF KEY,Hi-Pro, 1 1/4" Dia x 5/16" x 1"

KEY - (Hi-pro type)

1шт.

10

A31038

THRUST WASHER

- camshaft nut, 1-3/8 x 2-1/4 x 5/32" (Replaces tab washer A58594)

1шт.

11

A58595

NUT

- camshaft

1шт.

12

CASA27853

SPRING

- plunger, camshaft bumper

1шт.

13

A27852

PLUNGER

- thrust, camshaft

1шт.
