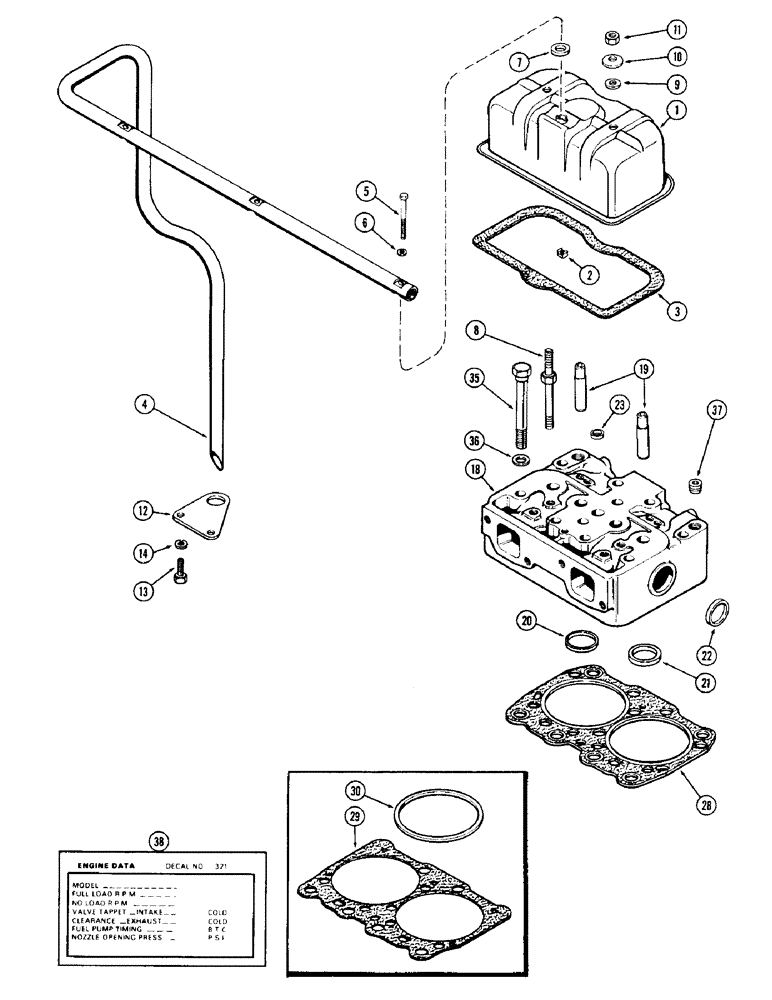

Запчасти Case 880 (010) - CYLINDER HEAD AND COVER, 336BDT DIESEL ENGINE (01) - ENGINE

1

A58929

COVER

COVER ASSEMBLY - cylinder head, Includes: Ref. 2

2шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - 1/4" Tinnerman

1шт.

3

A65734

CYLINDER HEAD GASKET

GASKET - cover to head (Replaces A58928)

2шт.

4

A58733

TUBE

TUBE - breather

1шт.

5

13-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

BOLT, , Tube to cover Hex, 1/4"-20 x 2 1/2", G5

2шт.

6

A34133

GASKET

GASKET - tube, upper, 1/4 x 1/2 x 1/16" (6.35 x 12.7 x 1.59 MM)

2шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

GASKET - tube, lower, 11/16 x 1-1/4 x 1/4" (17.46 x 31.75 x 6.35 MM)

2шт.

8

A67121

STUD

STUD - cover, 7/16" NC x 6"

4шт.

9

A23684

GASKET

GASKET - cover stud, 1/2 x 7/8 x 1/8" (12.7 x 22.22 x 3.17 MM)

4шт.

10

A23683

WASHER

WASHER - cover stud (Dished)

4шт.

11

129-104

NUT,7/16"-14, G5

NUT, 7/16"-14, G5

4шт.

12

A58734

BRACKET

BRACKET - breather tube

1шт.

13

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - bracket to oil pan, 3/8 x 1-1/2" NC hex

2шт.

14

195-25

WASHER,3/8"

WASHER - bracket spacer, 7/16 x 13/16 x 1/16" (11.11 x 20.64 x 1.59 MM)

2шт.

18

A66709

HEAD

HEAD ASSEMBLY - cylinder (Replaces A60558), Includes: Ref. 19 - 23

2шт.

18

AR66686

REMAN-CYLINDER HEAD

Remanufactured CYLINDER HEAD

2шт.

18

AC66686

CORE-CYLINDER HEAD

Return Number

2шт.

19

A41783

GUIDE

GUIDE - intake and exhaust valves

4шт.

20

A60557

INSERT

INSERT - intake valve seat

2шт.

21

A58619

INSERT

INSERT - exhaust valve seat

2шт.

22

A34124

PLUG,Cup, 1 5/8", Stainless

PLUG - 1-5/8" cup type

2шт.

23

A58620

PLUG,Cup, 3/4", Stainless

PLUG - 3/4" cup type

2шт.

28

REF

INSTRUCTION

GASKET - cylinder head to cylinder block (Engine serial no. 2511310 and after)

2шт.

29

REF

INSTRUCTION

GASKET - cylinder head to cylinder block (Prior to engine serial no. 2511310)

2шт.

30

A58622

RING

RING - fire (Standard) (Prior to engine serial no. 2511310)

4шт.

30

NLS

NO LONGER SERVICED

RING - fire (Oversize) (Coded with blue stripe) (Prior to engine serial no. 2511310)

4шт.

35

A62732

STEP BOLT

BOLT - cylinder head to block, 5/8 x 5-5/8" NC hex (Replaces A58630)

20шт.

36

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - cylinder head bolt, 5/8 x 1 x 3/16" (15.87 x 25.4 x 4.76 MM)

20шт.

37

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - 3/4" PT, socket head

4шт.

38

321-2310

DECAL

DECAL - engine data

1шт.
