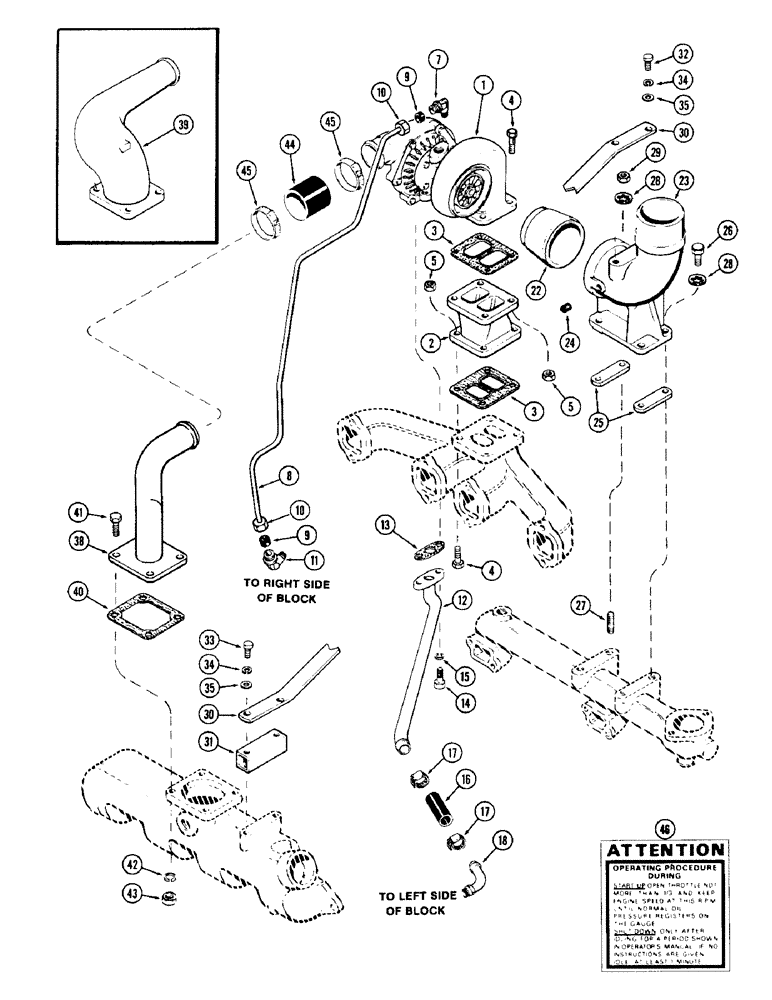

Запчасти Case 880 (008) - TURBOCHARGER SYSTEM, 336BDT DIESEL ENGINE (01) - ENGINE

1

A157337

TURBOCHARGER

TURBOCHARGER ASSEMBLY

1шт.

1

A42166

REMAN-TURBOCHARGER

Turbocharger Assembly (Rebuilt) No Longer Available, Order P/N A48194

1шт.

1

A42165

CORE

Return Part Number For Reman A42166

1шт.

1

A48194

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

1

A48193

CORE-TURBOCHARGER

Return Part Number

1шт.

2

A42165

CORE

BASE - turbocharger adapter

1шт.

3

A58899

GASKET,0.45mm Thk

GASKET - base, upper and lower

2шт.

4

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - 3/8 x 1-1/2" NC hex

8шт.

5

131-903

NUT,3/8"-16

NUT - 3/8" NC hex (Seezpruf)

8шт.

7

222-4047

ELBOW

ELBOW - oil supply, Serial Range: tube-turbocharger

1шт.

8

A62477

TUBE

TUBE ASSEMBLY - turbocharger oil supply, Includes: Ref. 9 and 10

1шт.

9

222-154

SLEEVE,3/8" Tube

SLEEVE - for 3/8" Tube

2шт.

10

222-114

NUT,5/8"-24

NUT - for 3/8" tube

2шт.

11

222-4048

ELBOW,90º, 5/8"-24 Fem x 3/8"-18 NPTF

ELBOW - oil supply tube to block

1шт.

12

A59228

TUBE

TUBE - turbocharger oil drain

1шт.

13

A58892

GASKET,1.59mm Thk

GASKET - drain tube

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, , Tube to turbocharger Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

15

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

16

A58893

HOSE

HOSE - drain tube, 7/8" ID x 3-1/2"

1шт.

17

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

2шт.

18

A59234

FITTING

FITTING - drain, Serial Range: tube-block

1шт.

22

A65554

TUBE

CONNECTOR - exhaust elbow (Replaces A58896)

1шт.

(A65554) : (per GPN) : THERE IS NO RECORD OF SEALING RINGS BETWEEN THIS CONNECTOR, TURBO CHARGER OR ELBOW. THERE IS A RAISED LIP ON EACH SIDE OF THE CONNECTOR THAT ALLOWS A .0025" CLEARENCE BETWEEN THE TURBO CHARGER AND ELBOW WHICH WILL CLOSE AND SEAL WHEN THE ENGINE HEATS AND EXHAUST SYSTEM CARBONS UP. PER PAM VIROGLIO AND ENGINEERING. IN SOME CASES WHERE CONNECTOR IS OUT OF ROUND AND WILL NOT SEAL, DEALERS HAVE USED THEIR OWN FIX BY INSTALLING A RING ON THE CONNECTOR.

1шт.

23

A61941

ELBOW

ELBOW - exhaust

1шт.

24

221-12

PLUG,Sq Hd, 1/4"-18

PLUG - 1/4" PT, square head

1шт.

25

A59237

SPACER

SPACER - exhaust elbow

2шт.

26

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - elbow to water manifold, 3/8 x 1-1/2" NC hex

3шт.

27

A58689

STUD

STUD - elbow to water manifold, 3/8" NC x 1-7/8"

1шт.

28

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

29

131-903

NUT,3/8"-16

NUT - 3/8" NC hex (Seezpruf)

1шт.

30

A61942

BRACE

SPARE PART BRACE - exhaust elbow to intake manifold

1шт.

31

A67057

SPACER

SPACER - brace (At intake manifold) (Replaces A61945)

1шт.

32

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, , Brace to elbow Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

33

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

BOLT, , Brace to manifold Hex, 3/8"-16 x 2 1/4", G5

2шт.

34

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

35

95-6

WASHER,3/8"

WASHER - 3/8 x 1 x 1/16"

4шт.

38

A150450

ELBOW

ELBOW - air intake (Formed tube) (Replaces A77242) (1st used engine serial no. 2579516)

1шт.

39

A58903

ELBOW UNION

Union Elbow ELBOW - air intake (Cast iron) (Used prior to engine serial no. 2579516)

1шт.

40

A58910

GASKET

GASKET - elbow to intake manifold

1шт.

41

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

BOLT - elbow to manifold, 3/8 x 1-1/2" NC hex (Used with A150450 elbow)

4шт.

41

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

BOLT, , Elbow to manifold (Used with A58903 elbow) Hex, 3/8"-16 x 1 3/4", G5

4шт.

42

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

4шт.

43

25-106

NUT,3/8"-16, G5

NUT - 3/8" NC hex

4шт.

44

A150449

INTAKE AIR HOSE,2.00" ID x 2.88"

Elbow to turbocharger (Replaces A58894)

1шт.

45

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

HOSE CLAMP, #28, 1.31/2.25 Type F Worm

2шт.

46

321-2605

DECAL

DECAL - turbocharger operating prodecure

1шт.
