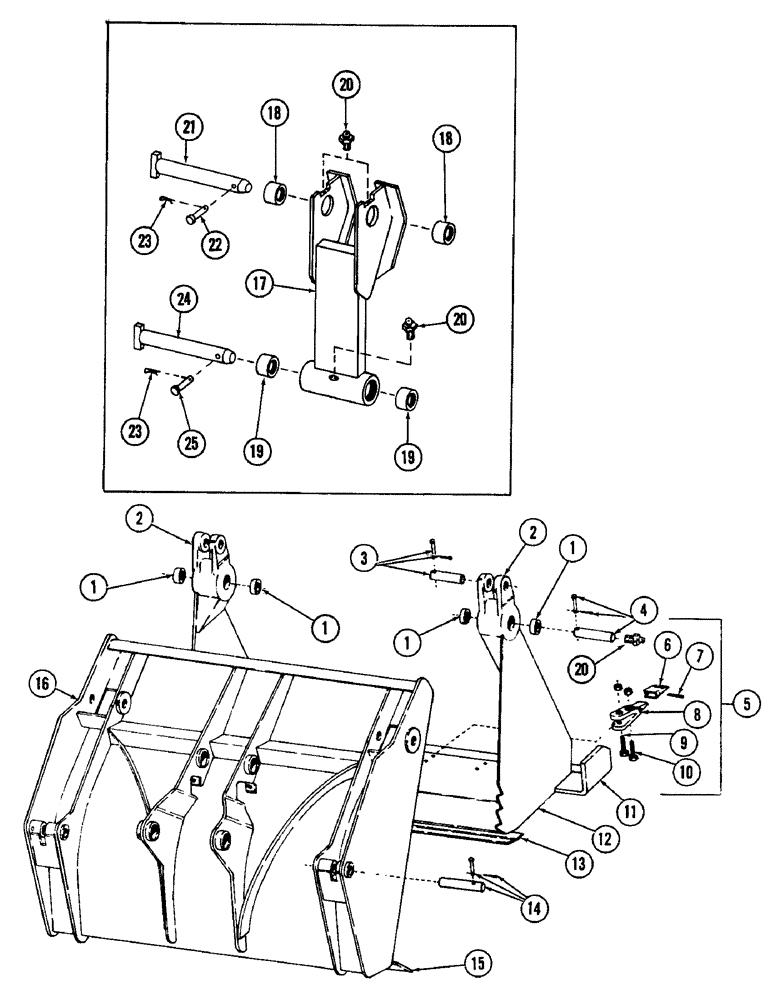

Запчасти Case 880 (294) - 4-IN-1 BUCKET (19) - BUCKETS

1

A18662

BUSHING

4шт.

2

S211089

HINGE, clam (Weld on)

2шт.

3

S204122

PIN

, Serial Range: clam-cylinder

2шт.

S10784

PIN

clevis - 3/8" x 3-1/64" grip length

2шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

4

S204178

PIN

, Serial Range: calm-blade

2шт.

S10786

CLEVIS PIN

PIN, CLEVIS - 3/8" x 3-1/2" grip length

2шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

5

S25674

KIT

TEETH, bucket, Includes: Ref. 6 - 10

6шт.

6

S25677

POINT

tooth

1шт.

7

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

1шт.

8

NSS

NOT SOLD SEPARAT

SHANK, tooth

1шт.

9

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" - 13 NC

1шт.

10

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

CPSW - 1/2" - 13 NC x 2-1/2"

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" - 13 NC

1шт.

11

S207267

EDGE

cutting

1шт.

12

S54346

CLAM - (Includes refs 1, 2 and 11)

1шт.

13

S204121

EDGE, cutting - clam

1шт.

14

S67267

PIN

cylinder base

2шт.

S10783

CLEVIS

PIN, clevis - 3/8" x 2.766" grip length

2шт.

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

15

S67234

EDGE, cutting - mold board

1шт.

16

S950944

BLADE - (Includes ref 15)

1шт.

17

S210256

LINK, loader, Includes: Ref. 18 - 20

1шт.

18

S202073

BUSHING

2шт.

19

S202070

BUSHING

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, lube - 1/8" NPT (Straight)

3шт.

21

S200960

PIN

1шт.

22

S10813

PIN

clevis - 1/2" x 2.391 grip length

1шт.

23

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

2шт.

24

S201019

PIN

1шт.

25

S10816

PIN

clevis - 1/2" dia. x 3.266" grip length

1шт.
