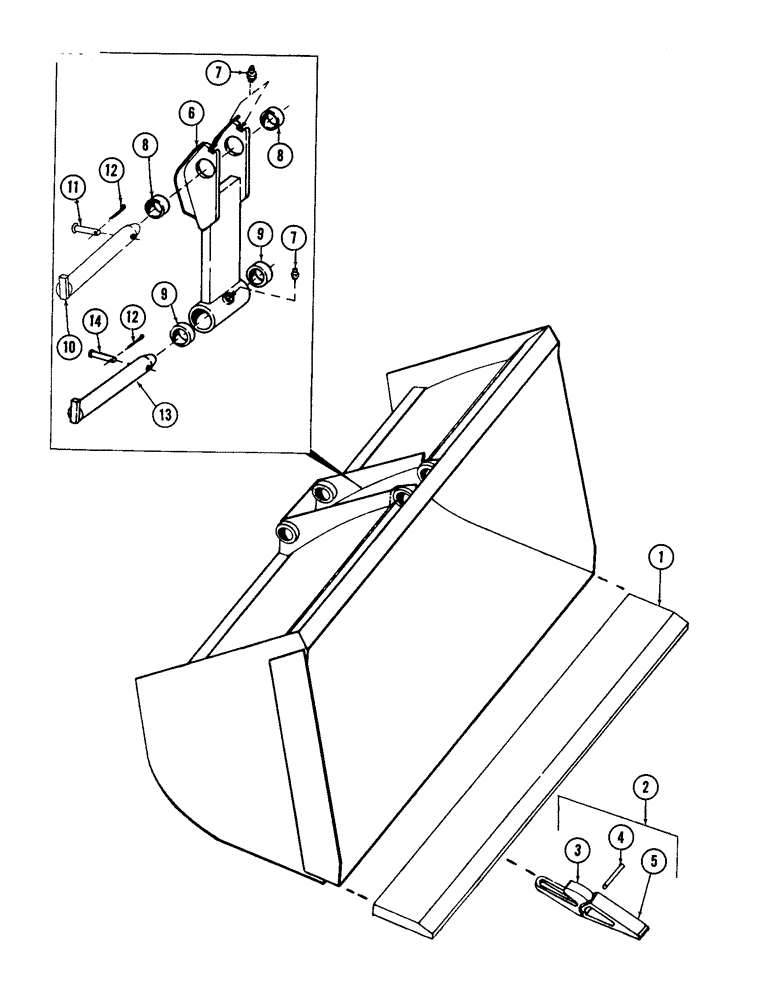

Запчасти Case 880 (290) - FRONT LOADER BUCKET (19) - BUCKETS

S950460

BUCKET, front loader - 48" - complete (Machinery item), Includes: Ref. 1 and 2

1шт.

S950455

BUCKET, front loader - 60" - complete (Machinery item), Includes: Ref. 1 and 2

1шт.

1

S206799

EDGE, cutting - 48"

1шт.

2

S206728

EDGE, cutting - 60"

1шт.

2

S503112

TOOTH

Includes: Ref. 3 - 5

1шт.

3

S37774

SHANK

tooth

1шт.

4

138-316

LOCK PIN,1/2" x 2 1/2", Slotted

PIN, 1/2" x 2 1/2", Slotted

1шт.

5

S503093

POINT

TIP, replaceable

1шт.

6

S210256

LINK, Includes: Ref. 7 - 9

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, lube - 1/8" NPT - (Straight)

1шт.

8

S202073

BUSHING

2шт.

9

S202070

BUSHING

2шт.

10

S200960

PIN

1шт.

11

S10813

PIN

clevis - 1/2" dia. x 2.391" grip length

1шт.

12

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

2шт.

13

S201019

PIN

1шт.

14

S10816

PIN

clevis - 1/2" dia. x 3.266" grip length

1шт.
