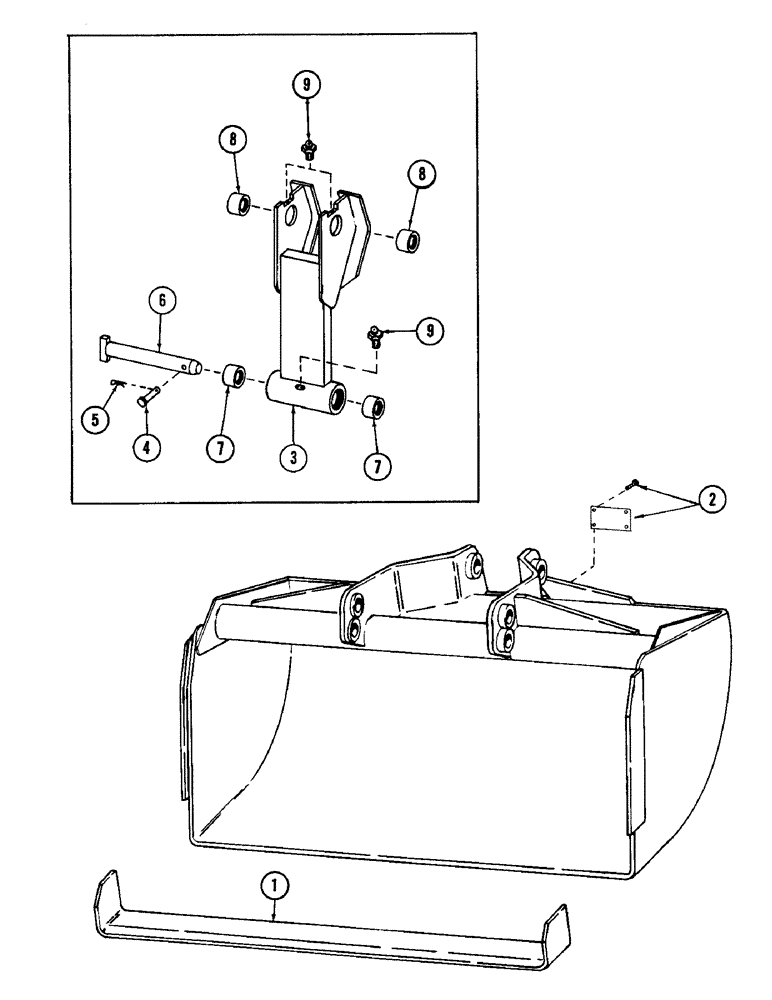

Запчасти Case 880 (288) - DITCH BUCKET, (USED ON UNITS WITH SERIAL NUMBER 6200000 THRU 6200288) (19) - BUCKETS

S951085

BUCKET, ditch - 60" complete (Machinery item), Includes: Ref. 1 and 2

1шт.

1

S206752

EDGE

cutting

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE, identification - (Not illustrated)

1шт.

S23395

SCREW

drive

4шт.

3

S209890

LINK, Includes: Ref. 4 - 9

1шт.

4

S61972

PIN

clevis - 1/2" x 3.266" grip length

1шт.

5

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

1шт.

6

S200960

PIN

1шт.

7

S202070

BUSHING

2шт.

8

S202073

BUSHING

2шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - 1/8" NPT - (Straight)

3шт.
