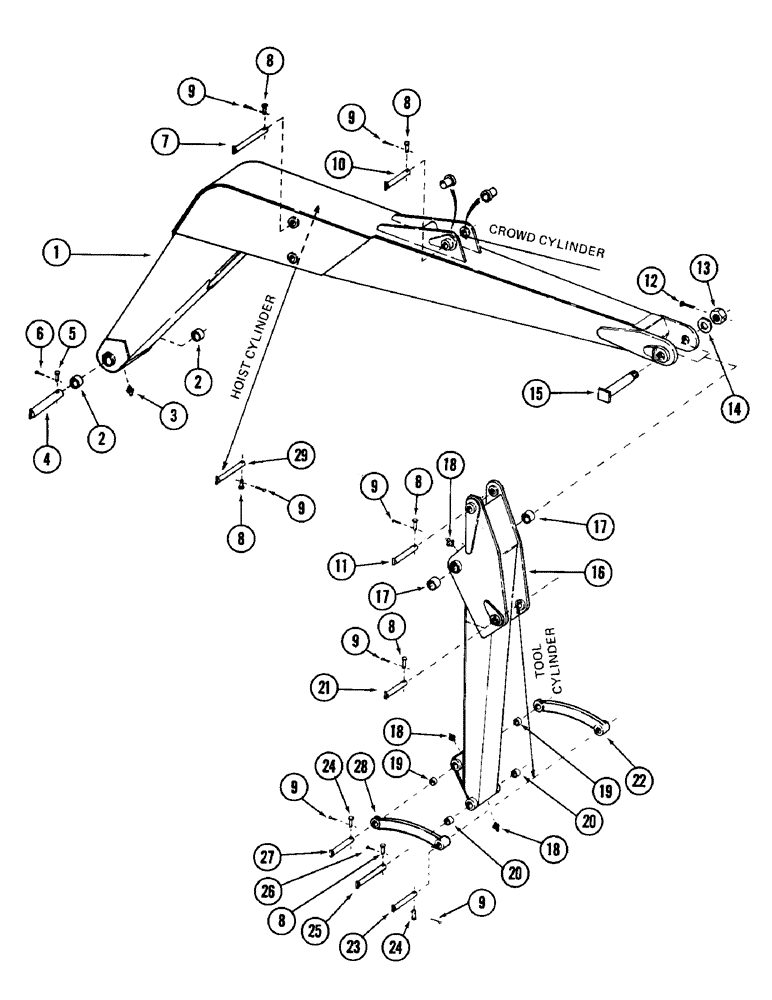

Запчасти Case 880 (266) - E BOOM, DIPPERSTICK RELATED PARTS (14) - DIPPERSTICKS

1

NSS

NOT SOLD SEPARAT

BOOM, main - (Used on units with serial number 6200000 thru 6200971, 6200973, 6200974 and 6200977 thru 6200980) - (See ref 31), Includes: Ref. 2 and 3

1шт.

S954058

BOOM

main - (Used on units with serial number 6200972, 6200975, 6200976 and 6200981 and after), Includes: Ref. 2 and 3

1шт.

Boom S954058 is also used on early S/N. The sound conversion kit is no longer available. Need to order 18 clamps S91602.

1шт.

2

S210602

BUSHING,63.42mm ID x 76.31mm OD x 50.8mm L

- 2-1/2" ID x 3" OD x 2" long

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, lube - 1/8" NPT straight

1шт.

4

S201023

PIN

- 2-1/2" x 24" long - main, Serial Range: boom-turntable

1шт.

5

S61975

PIN,20.62mm OD x 106.76mm L

clevis - 5/8" dia. x 3.766" grip length

1шт.

6

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

7

S201024

PIN

- 1-1/2" x 19-1/8" long - hoist cylinder to main boom

1шт.

8

S61972

PIN

clevis - 1/2" dia. x 3.266" grip length

5шт.

9

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

7шт.

10

S209889

PIN

- 1-1/2" x 3-3/8" long - crowd cylinder, Serial Range: base-bottom

1шт.

11

S209889

PIN

- 1-1/2" x 3-3/8" long - crowd cylinder, Serial Range: rod-dipper

1шт.

12

132-161

COTTER PIN,1/4" x 3 1/2"

Pin, Split (Cotter), 1/4" x 3 1/2"

1шт.

13

25-3032

SLOTTED NUT,2"-4.5, G5, Hvy

NUT, hex slotted - 2" - 4-1/2" NC

1шт.

14

95-40

WASHER,2 1/2" x 5" x .238"

flat - 2"

1шт.

15

S220250

PIN ASSY.

PIN - 2-1/2" x 16-1/4" long - dipper to main boom

1шт.

16

S952999

DIPPERSTICK, Includes: Ref. 17 - 20, Serial Range: 6200000-6200288

1шт.

S953567

DIPPER

STICK , Includes: Ref. 17 - 20, Start Serial: 6200289

1шт.

17

S210602

BUSHING,63.42mm ID x 76.31mm OD x 50.8mm L

- 2-1/2" ID x 3" OD x 2" long

2шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, lube - 1/8" NPT straight

3шт.

19

S202070

BUSHING

- 1-1/2" ID x 2" OD x 1-1/4" long

2шт.

20

S210601

BUSHING,38.06mm ID x 50.93mm OD x 63.5mm L

- 1-1/2" ID x 2" OD x 2-1/2" long, Serial Range: 6200000-6200288

2шт.

S202137

BUSHING,50.73mm ID x 63.63mm OD x 63.5mm L

- 2" ID x 2-1/2" OD x 2-1/2" long, Start Serial: 6200288

2шт.

21

S209889

PIN

- 1-1/2" x 13-3/8" long - tool cylinder to, Serial Range: base-dipper

1шт.

22

S209894

LEVER

tool (Left hand)

1шт.

23

S209889

PIN

- 1-1/2" x 13-3/8" long - tool cylinder, Serial Range: rod-lever

1шт.

24

S61973

AXLE PIN

PIN, clevis - 1/2" dia. x 3.766" grip length

2шт.

25

S201019

PIN

1-1/2" x 17-1/8" long - attachment to dipperstick - 1.5", Serial Range: 6200000-6200288

1шт.

S213911

PIN

- 2" x 17-7/8" long - attachment to dipperstick - 2", Start Serial: 6200288

1шт.

26

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

1шт.

27

S209889

PIN

- 1-1/2" x 13-3/8" long - lever, Serial Range: ass'y-dipperstick

1шт.

28

S209893

LEVER

tool (Right hand)

1шт.

29

S220225

PIN ASSY.

PIN - 1-1/2" x 16-7/8" long - hoist, Serial Range: cylinder-turntable

1шт.

30

S61972

PIN

clevis - 1/2" dia. x 3.266" grip length

1шт.

31

S608906

KIT, sound conversion - (Required on units with serial number 6200000 thru 6200971, 6200973, 6200974 and 6200977 thru 6200980)

1шт.

S80405

CYLINDER crowd, L.H.

1шт.

S80406

CYLINDER crowd, R.H.

1шт.
