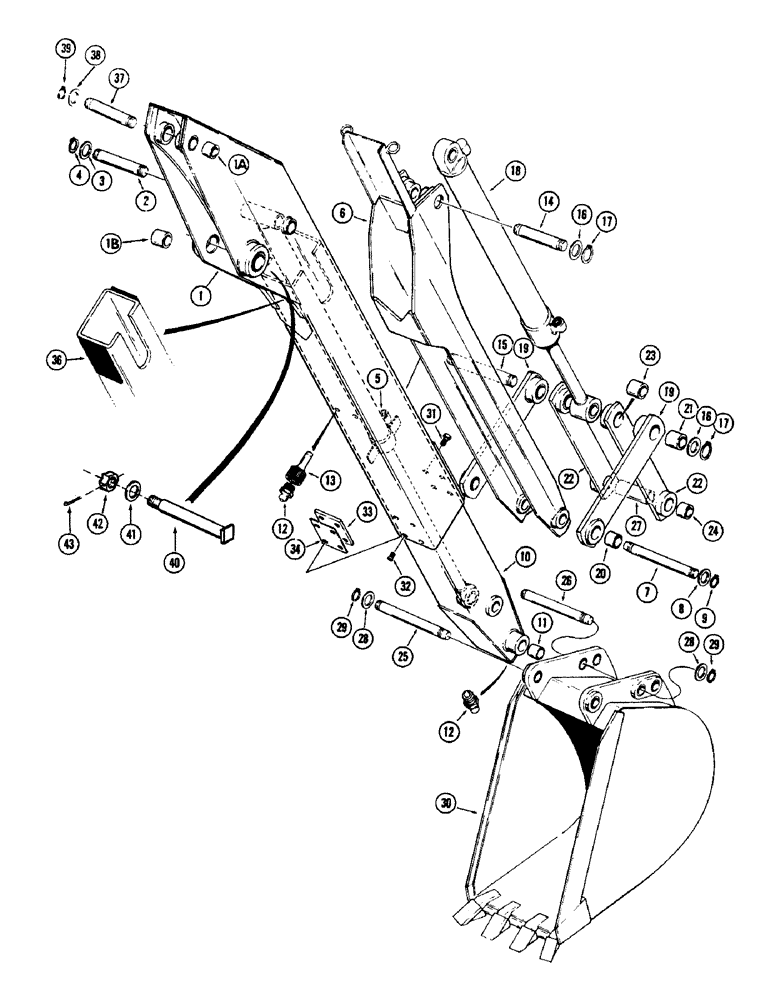

Запчасти Case 880 (272) - EXTENDAHOE (FOUR FOOT DIPPER EXTENSION), MECHANICAL PARTS (09) - BOOMS

D17577

EXTEND-A-HOE, Includes: Ref. 1 - 40

1шт.

1

D19171

HOUSING, dipper - outer, Includes: Ref. 1

1шт.

1

D31140

BUSHING,38.33mm ID x 47.63mm OD x 25.4mm L

- 2"

2шт.

1

D51545

BUSHING,63.75mm ID x 76.2mm OD x 38.1mm L

- 2.5"

2шт.

1

321-2058

DECAL

"extendahoe"

2шт.

2

D37609

PIN

extension cylinder to outer dipper housing

1шт.

3

195-2155

WASHER,2 1/16" x 3" x .109"

plain - (2" ID)

2шт.

4

D26919

SNAP RING,#200, Ext

RING, snap, , pin #200, Ext

2шт.

5

REF

INSTRUCTION

CYLINDER, hydraulic - dipper extension (Parts list figure 274 or 275A)

1шт.

6

D57534

ARM, extension - bucket cylinder

1шт.

7

L42746

PIN

extension arm and bucket guide link to inner dipper

1шт.

8

L47721

WASHER

special

2шт.

9

D26919

SNAP RING,#200, Ext

RING, snap, , pin #200, Ext

2шт.

10

D78185

EXTENSION

dipper - inner, Includes: Ref. 11

1шт.

11

D40050

BUSHING,51.03mm ID x 60.33mm OD x 50.8mm L

pivot - backhoe bucket

2шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - straight - (1/8" NPT)

2шт.

13

219-107

NOZZLE CAP

NOZZLE, grease fitting

1шт.

14

D95372

PIN, extension to bucket cylinder - closed end

1шт.

15

D95371

PIN

bucket to bucket cylinder - rod end

1шт.

16

L47706

WASHER

- special

4шт.

17

F40807

SNAP RING,#225, Ext

RING, snap, , pin #225, Ext

4шт.

18

G34755

CYLINDER

hydraulic - bucket (Parts list, figure 276)

1шт.

19

D55244

LINK, cylinder guide, Includes: Ref. 20 and 21

2шт.

20

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

at extension arm (2" ID)

1шт.

21

D53823

BUSHING

at bucket cylinder - rod end (2.25" ID)

1шт.

22

D55240

LINK, bucket dump, Includes: Ref. 23 and 24

2шт.

23

L45223

BUSHING

at bucket cylinder - rod end (2.25" ID)

1шт.

24

D43508

BUSHING

at bucket ear (2" ID)

1шт.

25

L42746

PIN

inner dipper extension to bucket ear

1шт.

26

L42747

PIN

bucket links to bucket ears

1шт.

27

L41377

SPACER

bucket links

1шт.

28

L47721

WASHER

special

4шт.

29

D26919

SNAP RING,#200, Ext

RING, snap, , pin #200, Ext

4шт.

30

REF

INSTRUCTION

BUCKET, backhoe - (See figure 286 for options)

1шт.

31

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

32

164-70

SCREW,Flat Hd, 1/2" - 13 x 3/4"

hex socket head - flat - (1/2" - 13 NC x 3/4")

4шт.

33

D59259

SHIM,.035" Thk

Wear plate .035" Thk

1шт.

34

D59248

PLATE

1шт.

35

132-161

COTTER PIN,1/4" x 3 1/2"

PIN, split (Cotter), 1/4" x 3 1/2"

1шт.

36

D59249

PLATE, wear - rear (Welded to inner dipper extension)

2шт.

37

D53819

PIN

1шт.

38

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

2шт.

39

D25279

SNAP RING,M35, Int

2шт.

40

S220250

PIN ASSY.

PIN

1шт.

41

95-40

WASHER,2 1/2" x 5" x .238"

flat - 2"

1шт.

42

25-3032

SLOTTED NUT,2"-4.5, G5, Hvy

NUT, hex slotted - 2" - 4-1/2" NC

1шт.
