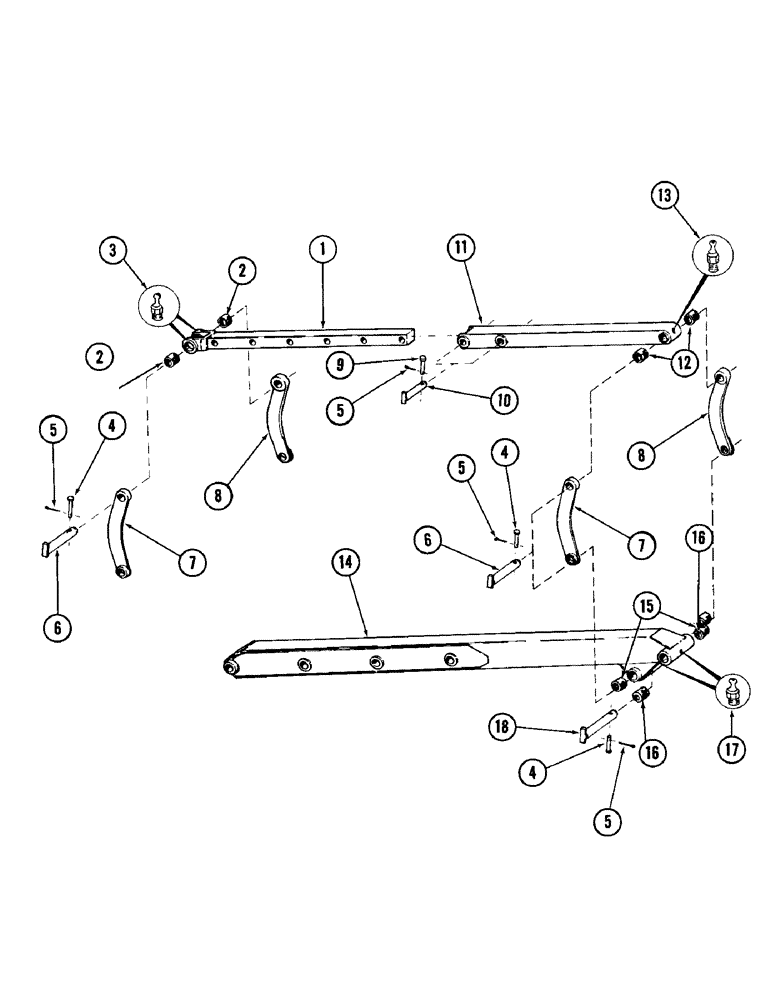

Запчасти Case 880 (270) - "Y" TOOL BOOM EXTENSION (09) - BOOMS

1

S501863

LINK, adjustable inner - (Used with extensions with 17' digging depth), Includes: Ref. 2 and 3

1шт.

S501865

LINK, adjustable inner - (Used with extension with 19' digging depth), Includes: Ref. 2 and 3

1шт.

2

S202070

BUSHING

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, lube - 1/8" NPT (Straight)

2шт.

4

S61972

PIN

clevis - 1/2" dia. x 3.266 grip length

4шт.

5

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

6шт.

6

S209889

PIN

- 1-1/2" x 13-3/8" long

3шт.

7

S209893

LEVER

- (Right hand)

2шт.

8

S209894

LEVER

- (Left hand)

2шт.

9

S10785

PIN

clevis - 3/8" dia. x 3.266 grip length

2шт.

10

S206139

PIN

- 1-1/2" x 7-7/8" long

2шт.

11

S502858

LINK, adjustable outer, Includes: Ref. 12 and 13

1шт.

12

S202073

BUSHING

- 1-1/2" ID x 2" OD x 1-3/4" long

2шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, lube - 1/8" NPT (Straight)

1шт.

14

S58036

EXTENSION, tool boom - (17' dig depth), Includes: Ref. 15 - 17, Serial Range: 6200000-6200288

1шт.

S605010

EXTENSION, tool boom - (17' dig depth), Includes: Ref. 15 - 17, Start Serial: 6200289

1шт.

S58037

EXTENSION, tool boom - (19' dig depth), Includes: Ref. 15 - 17, Serial Range: 6200000-6200288

1шт.

S605008

EXTENSION, tool boom - (19' dig depth), Includes: Ref. 15 - 17, Start Serial: 6200289

1шт.

15

S210601

BUSHING,38.06mm ID x 50.93mm OD x 63.5mm L

- 1-1/2" ID x 2" OD x 2-1/2" long, Serial Range: 6200000-6200288

2шт.

S202071

BUSHING

- 1-1/2" ID x 2" OD x 1-1/4" long, Start Serial: 6200289

2шт.

16

S202071

BUSHING

- 1-1/2" ID x 2" OD x 1-1/4" long, Serial Range: 6200000-6200288

1шт.

S202137

BUSHING,50.73mm ID x 63.63mm OD x 63.5mm L

- 2" ID x 2-1/2" OD x 2-1/2" long, Start Serial: 6200289

1шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, lube - 1/8" NPT (Straight)

2шт.

18

S201019

PIN

- 1-1/2" x 17-1/8" long, Serial Range: 6200000-6200288

1шт.

S213911

PIN

- 2" x 17-7/8" long, Start Serial: 6200289

1шт.
