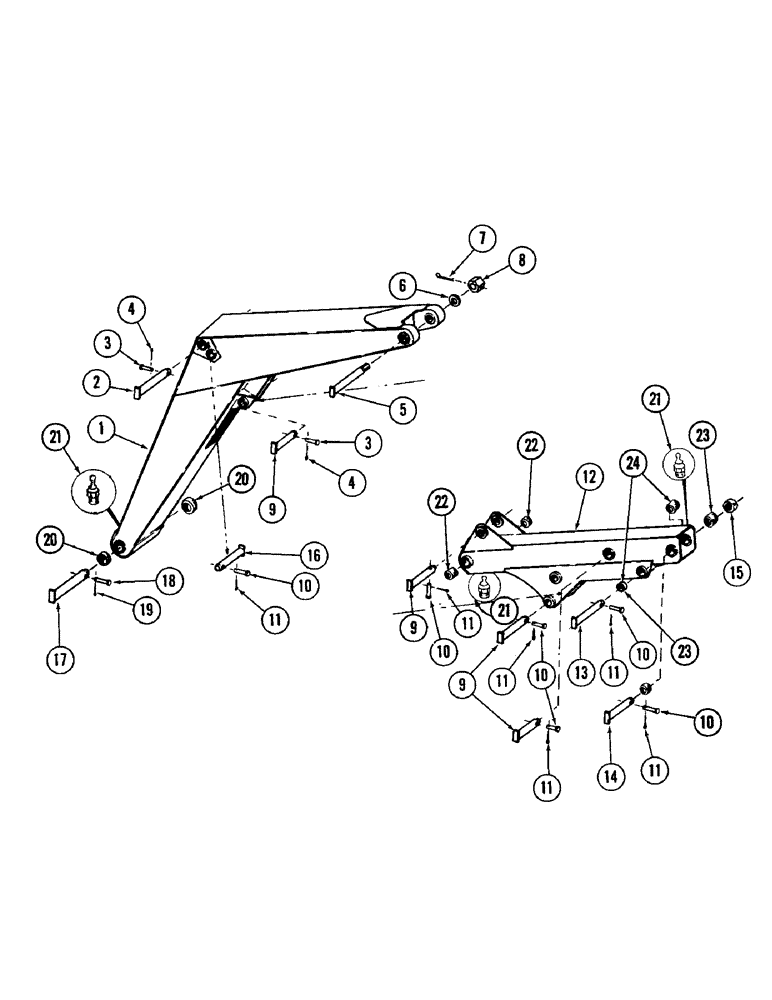

Запчасти Case 880 (268) - "Y" MAIN BOOM AND "Y" TOOL BOOM (09) - BOOMS

1

NSS

NOT SOLD SEPARAT

BOOM, main (See ref 25), Serial Range: 6200000-6200911

1шт.

S954164

BOOM, main, Start Serial: 6200912

1шт.

2

S201024

PIN

- 1-1/2" x 19-1/8" long

1шт.

3

141-338

PIN, clevis - 1/2" x 2.766" grip length

2шт.

4

132-325

PIN, cotter - 7/64" x 1" long

2шт.

5

S220250

PIN ASSY.

PIN - 2-1/2" x 16-1/4" long

1шт.

6

95-40

WASHER,2 1/2" x 5" x .238"

flat - 2-5/8"

1шт.

7

132-161

COTTER PIN,1/4" x 3 1/2"

PIN, cotter - 1/8" x 1" long

1шт.

8

25-3032

SLOTTED NUT,2"-4.5, G5, Hvy

NUT, slotted - 2" NC

1шт.

9

S210261

PIN

- 1-1/2" x 12-3/8" long

4шт.

10

141-339

X

PIN, clevis - 1/2" x 3.266" grip length

6шт.

11

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

6шт.

12

S58038

BOOM

tool

1шт.

13

S209889

PIN

- 1-1/2" x 13-3/8" long

1шт.

14

S201018

PIN

- 1-1/2" x 14-1/8" long

1шт.

15

S63255

COLLAR

1шт.

16

S220225

PIN ASSY.

PIN - 1-1/2" x 16-7/8" long

1шт.

17

S201023

PIN

- 2-1/2" x 24" long

1шт.

18

141-343

X

PIN, clevis

1шт.

19

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

20

S202162

BUSHING

- 2-1/2" ID x 3" OD x 2" long

2шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, lube - 1/8" NPT (Straight)

3шт.

22

S210602

BUSHING,63.42mm ID x 76.31mm OD x 50.8mm L

- 2-1/2" ID x 3" OD x 2" long

2шт.

23

S202071

BUSHING

- 1-1/2" ID x 2" OD x 1-1/4" long

2шт.

24

S202070

BUSHING

- 1-1/2" ID x 2" OD x 1-1/4" long

2шт.

25

S608907

KIT, sound conversion, Serial Range: 6200000-6200911

1шт.
