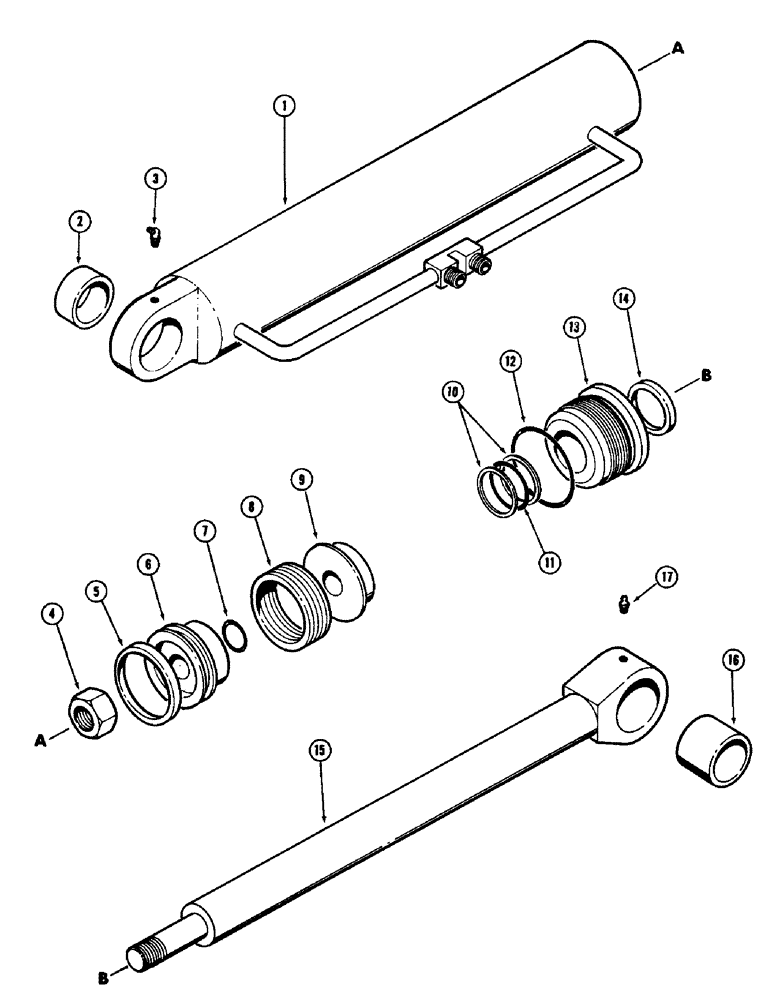

Запчасти Case 880 (298) - FOUR IN ONE CYLINDER, (ORIGINAL EQUIPMENT CYLINDER) (07) - HYDRAULIC SYSTEM

NSS

NOT SOLD SEPARAT

CYLINDER, 4-in-1 - (For complete replacement order S31431 below), Includes: Ref. 1 - 17

2шт.

1

D39294

TUBE AND PIPE ASSEMBLY, Includes: Ref. 2

1шт.

2

D39219

BUSHING

1шт.

3

219-43

LUBE NIPPLE,65 Degree Elbow, 1/4" - 28 NPTF

FITTING, grease - 1/4" NPT x 65"

1шт.

4

131-820

NUT, nylon stop - 1" NF

1шт.

5

D39295

RING

wear

1шт.

6

D39185

PISTON - (With o-ring seat)

1шт.

7

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

8

D39291

CUP

"V" RING CUP ASSEMBLY

1шт.

9

D39289

PISTON

half

1шт.

10

A18686

WASHER

back up

2шт.

11

A18687

O-RING

1шт.

12

G10389

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

13

D39290

HEAD

cylinder

1шт.

14

A18690

RING

WIPER, rod

1шт.

15

D39292

ROD

piston, Includes: Ref. 16

1шт.

16

A18681

BUSHING

1шт.

17

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

18

D39296

KIT

seal repair - (Includes refs 5, 7, 8, 10 - 12 and 14)

1шт.

S31431

CYLINDER

4-in-1 (replacement cyl), Includes: Ref. 1 - 17

2шт.

1

S26750

TUBE ASSY.,17, 3.4" L

TUBE AND PIPE ASSEMBLY, 4-in-1 cyl (replacement cyl), Includes: Ref. 2

1шт.

2

S47225

BUSHING

4-in-1 cyl (replacement cyl)

1шт.

3

219-43

LUBE NIPPLE,65 Degree Elbow, 1/4" - 28 NPTF

FITTING, grease - 1/4" NPT x 65 degrees, 4-in-1 cyl (replacement cyl)

1шт.

4

131-820

NUT, nylon stop - 1" NF, 4-in-1 cyl (replacement cyl)

1шт.

5

S48034

RING

wear, 4-in-1 cyl (replacement cyl)

1шт.

6

S60192

PISTON

- (With o-ring seat), 4-in-1 cyl (replacement cyl)

1шт.

7

S5807

O-RING,0.984" ID x 1.262" OD x 0.139"

4-in-1 cyl (replacement cyl)

1шт.

8

S27161

RING

"V" RING CUP ASSEMBLY, 4-in-1 cyl ( replacement cyl)

1шт.

9

S60194

PISTON

half, 4-in-1 cyl (replacement cyl)

1шт.

10

S6921

WASHER

back-up, 4-in-1 cyl (replacement cyl)

2шт.

11

S6165

O-RING,1.485" ID x 1.875" OD x 0.215"

O-RING, 4-in-1 cyl (replacement cyl)

1шт.

12

S6321

O-RING,2.609" ID x 2.887" OD x 0.139"

O-RING, 4-in-1 cyl (replacement cyl)

1шт.

13

S46823

HEAD

cylinder, 4-in-1 (replacement cyl)

1шт.

14

S46869

RING

WIPER, rod, 4-in-1 cyl (replacement cyl)

1шт.

15

S26749

PISTON ROD

ROD, piston, 4-in-1 cyl (replacement cyl), Includes: Ref. 16

1шт.

16

S47225

BUSHING

4-in-1 cyl (replacement cyl)

1шт.

17

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, 4-in-1 cyl (Replacement cyl) 1/4"-28 NPT x .54" lg

1шт.
