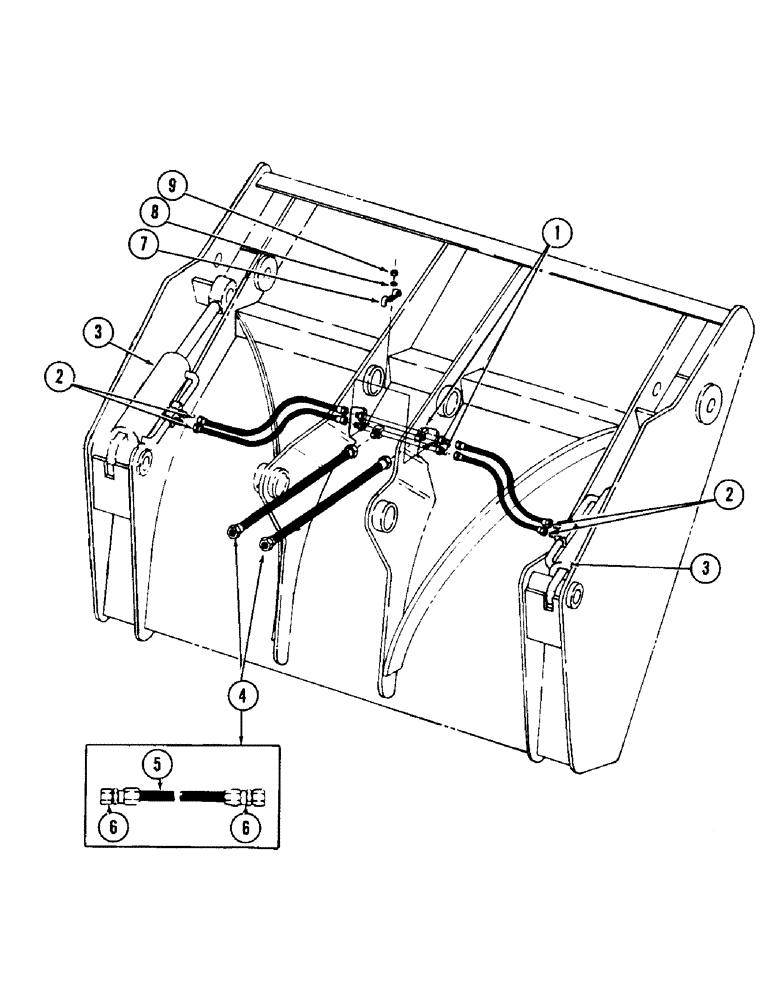

Запчасти Case 880 (296) - 4-IN-1 HYDRAULICS (07) - HYDRAULIC SYSTEM

1

S208457

LINE, hydraulic

2шт.

2

S11226

HOSE

high pressure - 3/8" ID x 20" long

4шт.

3

NSS

NOT SOLD SEPARAT

CYLINDER, 4-in-1 clam - (For breakdown, see figure 298)

2шт.

4

S11235

HOSE, jumper - 3/8" ID x 23" long, Includes: Ref. 5 and 6

2шт.

5

A21571

HOSE

high pressure (Bulk) - 3/8" x 21" long

2шт.

6

220-212

FITTING

COUPLING, reuseable - 3/4" JIC female thread

4шт.

7

S45067

CLAMP

tube

2шт.

8

92-6

LOCK WASHER,3/8"

2шт.

9

25-106

NUT,3/8"-16, G5

- 3/8" NC

2шт.
