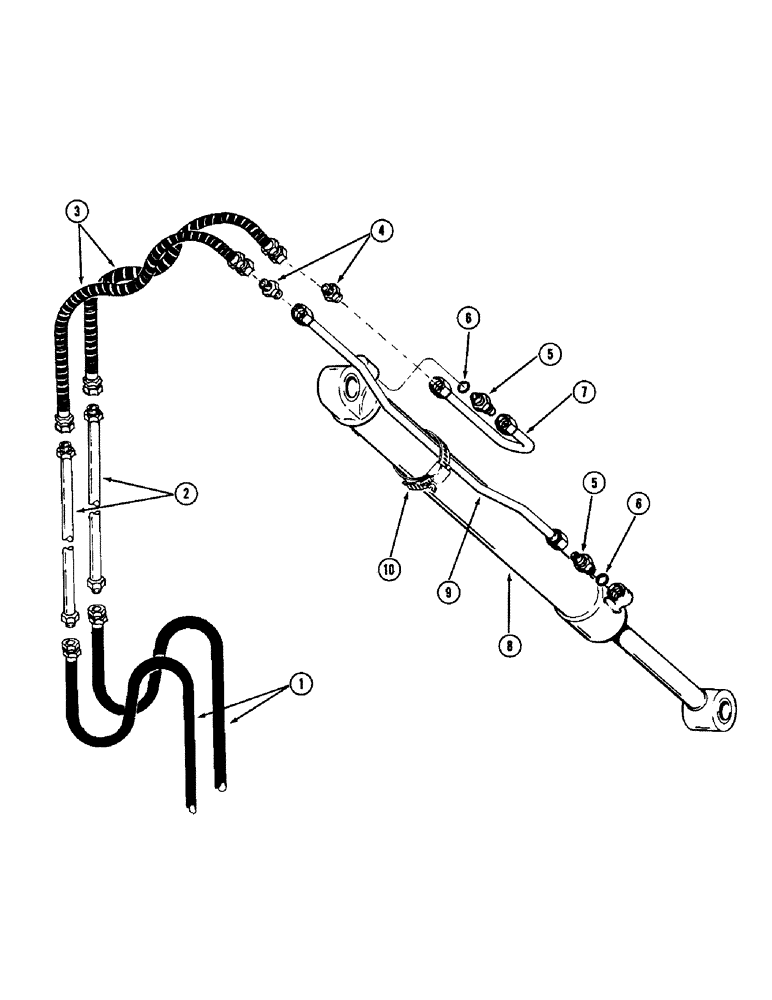

Запчасти Case 880 (280) - BUCKET CYLINDER HYDRAULICS, (USED WITH EXTENDAHOE) (07) - HYDRAULIC SYSTEM

1

D44752

HOSE

high pressure - 3/4" ID x 28" long - (With 1-5/16" - 12 female pressed on couplings)

2шт.

2

S211970

LINE,1" OD x 20.6, 1.75" L

hydraulic

2шт.

3

S64946

HOSE

high pressure - 3/4" ID x 50" long - (With female pressed on couplings)

2шт.

4

218-745

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

UNION - 1-1/16" - 12 male x 1-1/16" - 12 male

2шт.

5

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR - male, straight, Incl. Ref. 6

2шт.

6

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

2шт.

7

D56505

TUBE

LINE, hydraulic - (Closed end)

1шт.

8

NSS

NOT SOLD SEPARAT

CYLINDER, bucket - (For breakdown, see figure 276)

1шт.

9

D56503

TUBE

LINE, hydraulic - (Rod end)

1шт.

10

214-277

HOSE CLAMP,#100, 5.88" - 6.75", Type F Worm

CLAMP, tube to cylinder

1шт.

11

S91602

CLAMP

tube

4шт.
