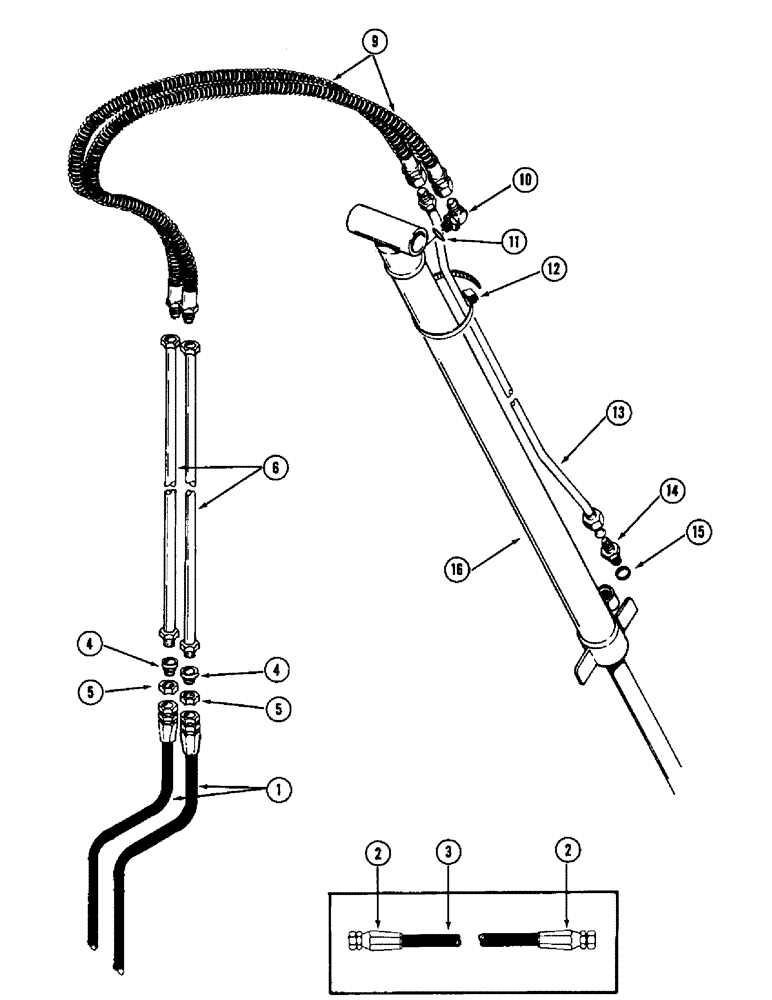

Запчасти Case 880 (278) - EXTENSION CYLINDER HYDRAULICS, (USED WITH EXTENDAHOE) (07) - HYDRAULIC SYSTEM

1

S76576

HOSE

high pressure - 1/2" ID x 330" long - (Includes refs 2 and 3)

2шт.

2

220-204

FITTING

COUPLING - reusable - (1/2" ID hose) - 7/8" - 14 female - (37 degree flared)

2шт.

3

S28462

HOSE

high pressure - (Bulk) - 1/2" ID x 327"

1шт.

4

218-785

REDUCER,37 Degree, 1 1/16"-12, Fem x 7/8"-14 Male

ADAPTER, reducing - (3/4" x 5/8" reduction) - 7/8" - 14 male

2шт.

5

218-346

TUBE NUT,37 Degree, 1 1/16"-12, Type B

NUT, tube

2шт.

6

S230609

LINE, hydraulic 1" OD x 6.05" L

2шт.

7

S91602

CLAMP

tube

2шт.

8

S93266

CLAMP

tube

2шт.

9

D56495

HOSE ASSY.

HOSE, high pressure - 57" long

2шт.

10

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable, Incl. Ref. 11 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

12

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP, tube

1шт.

13

D56496

LINE, hydraulic - (Rod end)

1шт.

14

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR, male straight, Incl. Ref. 15

1шт.

15

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

16

NSS

NOT SOLD SEPARAT

CYLINDER, dipper extension - (For breakdown, see figure 274)

1шт.
