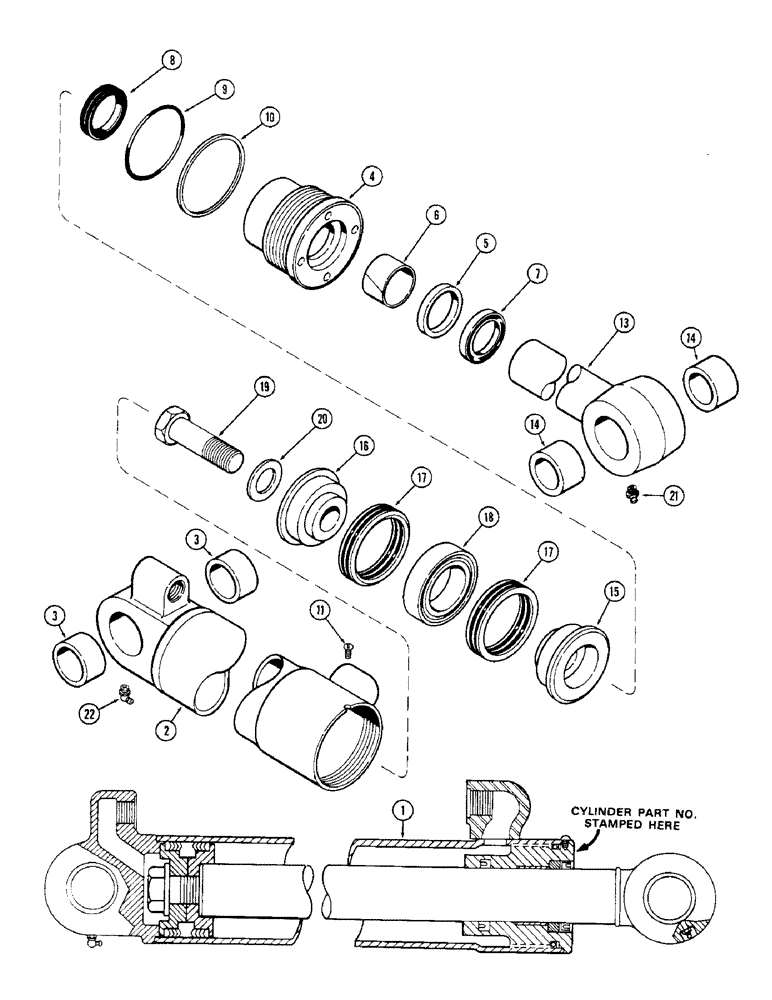

Запчасти Case 880 (276) - G34755 BUCKET CYLINDER, 5" DIA. CYLINDER WITH 36-3/4" STROKE W/CENTER BEARING (USED W/EXTENDAHOE) (07) - HYDRAULIC SYSTEM

1

G34755

CYLINDER

ASSY - bucket, Includes: Ref. 2 - 22

1шт.

2

G34756

TUBE

ASSY - cylinder, Includes: Ref. 3

1шт.

3

D52579

BUSHING,57.38mm ID x 69.85mm OD x 28.57mm L

- tube (2-1/4" ID x 2-3/4" OD x 1-1/8")

2шт.

G34735

GLAND

ASSY., Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

6

G34313

BEARING

- rod

1шт.

7

D95148

WIPER SEAL

WIPER - outer (3" x 3-1/2" x 5/16")

1шт.

8

D45572

ROD

SEAL, piston rod (3" x 3-1/2" x 7/16")

1шт.

9

NLS

NO LONGER SERVICED

"O" RING - gland (4-3/4" x 5" x 1/8")

1шт.

10

S92639

RING

back up (4-3/4" x 4-7/8" x 1/16")

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (No. 8 - 32 x 1/4" self-tapping)

1шт.

13

G34026

ROD ASSY - piston (3" dia.), Includes: Ref. 14

1шт.

14

D52580

BUSHING

piston rod 92-1/4" ID x 2-3/4" OD x 1-1/2")

2шт.

15

G32663

SPARE PART

PISTON, split (Rod end)

1шт.

16

D49335

PISTON

split (Bolt end)

1шт.

17

D47206

PACKING

ASSY - piston ("V" type)

2шт.

18

D47211

BEARING WASHER,95.28mm ID x 126.69mm OD x 19mm Thk

RING, center bearing

1шт.

19

28-2456

BOLT,Hex, 1-1/2" - 12 x 3-1/2", Gr 8

piston - (1-1/2" x 3-1/2" N.F. hex.)

11шт.

20

NLS

NO LONGER SERVICED

- (1-5/8" x 2-3/4" x 1/8")

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING, grease - (1/8" P.T. str.)

1шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

G34753

SEAL

KIT - cylinder repair - (Includes refs 6 - 10 and 17)

1шт.
