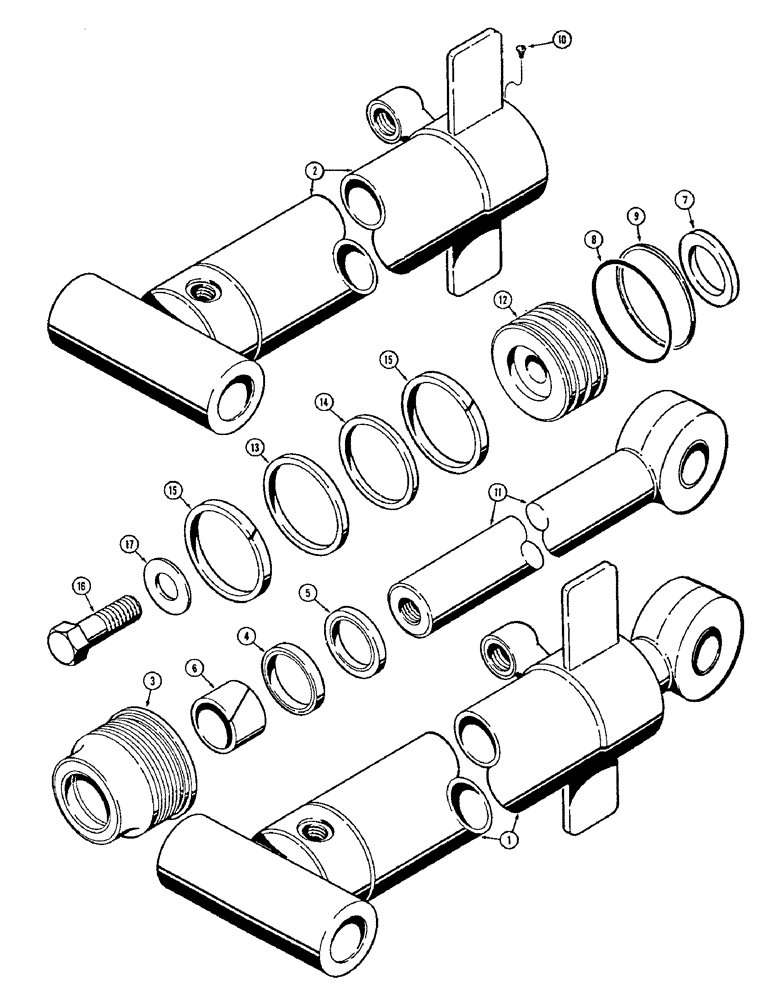

Запчасти Case 880 (275A) - G101263 BACKHOE DIPPER EXTENSION CYLINDER, WITH ONE PIECE PISTON (07) - HYDRAULIC SYSTEM

1

G101263

BOOM

CYLINDER - dipper extension, 4" (102 MM) x 48-5/8" (12.35 MM) stroke, Includes: Ref. 2 - 17

1шт.

2

G34236

TUBE

- cylinder

1шт.

G34635

GLAND

ASSEMBLY - cylinder, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

5

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod

1шт.

Part of Seal Kit P/N G102412

1шт.

6

G34620

BUSHING

BEARING - center

1шт.

Part of Seal Kit P/N G102412

1шт.

7

G100779

SEAL

piston rod, service option, extreme heat or cold, see service option below

1шт.

Part of Seal Kit P/N G102412

1шт.

8

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit P/N G102412

1шт.

9

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

1шт.

Part of Seal Kit P/N G102412

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - self tapping, #8 - 32 NC x 1/4"

1шт.

11

G34241

ROD, piston, 2-1/4" (57 MM) dia.

1шт.

12

G100686

PISTON

- cylinder

1шт.

13

G100439

SEAL,98mm ID x 102.6mm OD x 6.8mm Thk

- piston, Includes: Ref. 14 - 17

1шт.

Part of Seal Kit P/N G102412

1шт.

14

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

- backup

1шт.

Part of Seal Kit P/N G102412

1шт.

15

G100448

RING,101.6mm OD, Ext

- wear

2шт.

Part of Seal Kit P/N G102412

1шт.

16

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

1шт.

17

G32351

WASHER

- hardened

1шт.

G102412

SEAL

KIT - seal, Includes: Ref. 5 - 9 and 13 - 15

1шт.

G100779

SEAL

- piston - rod, service option - extreme heat or cold

1шт.
