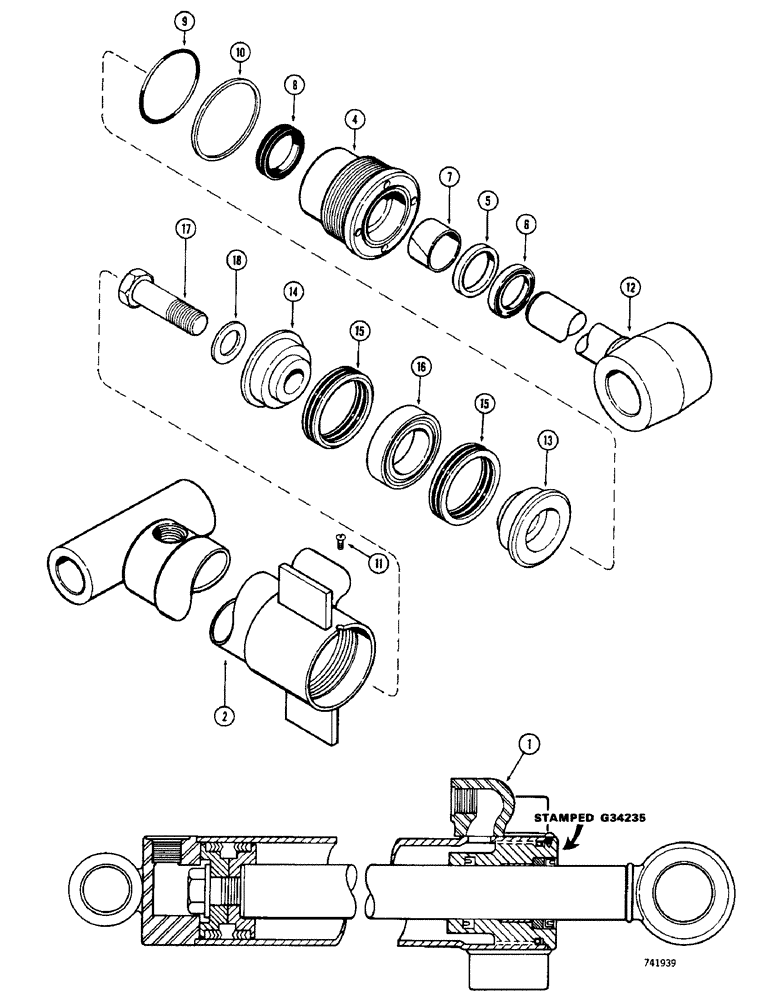

Запчасти Case 880 (274) - G34235 DIPPER EXTENSION CYLINDER, 4" CYLINDER WITH 48-5/8" STROKE, (USED WITH EXTENDAHOE) (07) - HYDRAULIC SYSTEM

1

G34235

CYLINDER

ASSEMBLY - dipper extension (4" dia. x 48-5/8" stroke) - (Order G101263), Includes: Ref. 2 - 18

1шт.

2

G34236

TUBE

cylinder body

1шт.

G34635

GLAND

ASSEMBLY - (Hand stamp for identification), Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND

1шт.

5

NSS

NOT SOLD SEPARAT

RING - center bearing

1шт.

6

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

WIPER - piston rod (2-1/2" x 3" x 5/16")

1шт.

Part of Cylinder Repair Seal Kit P/N G34636

1шт.

7

G102426

BUSHING,57.15mm ID x 60.22mm OD x 37.85mm L

BEARING - Center

1шт.

Part of Cylinder Repair Seal Kit P/N G34636

1шт.

8

G107924

SEAL,57.1mm ID x 69.9mm OD x 10.69mm Thk

- piston rod (2-1/4" x 2-3/4" x 7/16")

1шт.

Part of Cylinder Repair Seal Kit P/N G34636

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - gland (4" x 4-1/4" x 1/8")

1шт.

Part of Cylinder Repair Seal Kit P/N G34636

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland "O" Ring

1шт.

Part of Cylinder Repair Seal Kit P/N G34636

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - gland lock (No. 8 - 32 x 1/4" self tapping)

1шт.

12

G34241

ROD - piston (2-1/4" dia.)

1шт.

13

D49166

PISTON ASSY.

PISTON - split (Rod end)

1шт.

14

D46930

PISTON

- split (Bolt end)

1шт.

15

D47204

PACKING,89.15mm ID x 100.86mm OD

ASSEMBLY - piston ("V" type)

2шт.

Part of Cylinder Repair Seal Kit P/N G34636

1шт.

16

D47209

BEARING,3.006" ID x 3.987" OD x 0.631"

RING - center bearing

1шт.

17

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

Piston Hex, 1 1/4"-12 x 3", G8

1шт.

18

G32351

WASHER

- piston bolt (1-5/16" x 2-1/2" x 1/8")

1шт.

G34636

SEAL

KIT - cylinder repair, Includes: Ref. 6 - 10 and 15

1шт.
