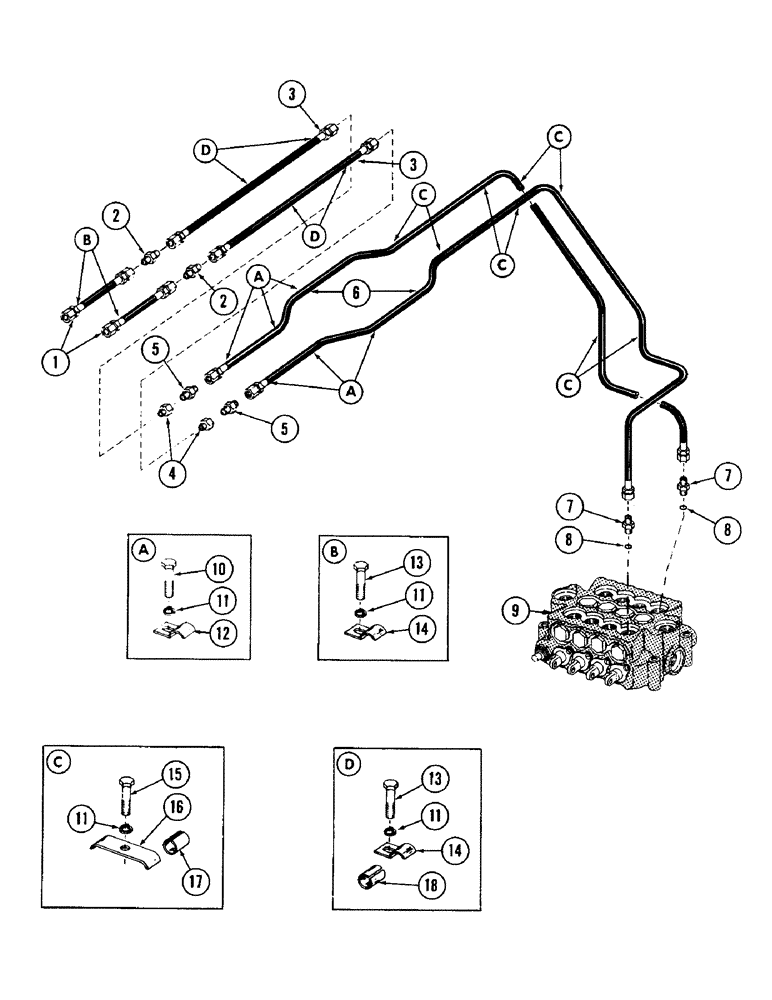

Запчасти Case 880 (262) - "Y" BOOM WRIST-O-TWIST HYDRAULICS, (USED ON UNITS W/S.N. 6200000 THRU 6200288) (07) - HYDRAULIC SYSTEM

1

S11236

HOSE ASSY.

HOSE, high pressure - 3/8" ID x 26" long

2шт.

2

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

- (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male

2шт.

3

S11234

FLEXIBLE HOSE

HOSE, high pressure - 3/8" ID x 86-1/2" long

2шт.

4

218-789

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTER, reducing (5/8" x 1/2" reduction) - 3/4" - 16 male x 7/8" - 14 female

2шт.

5

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

- (5/8" tube) - 7/8" - 14 male x 7/8" - 14 male

2шт.

6

S76576

HOSE

high pressure - 1/2" ID x 330" long

2шт.

7

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER, flared - 1-5/16" - 12 male x 7/8" - 14 male, Includes: Ref. 8

2шт.

8

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - 1.171" ID x 1.403" OD

2шт.

9

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see figure 202)

1шт.

10

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

6шт.

11

92-8

LOCK WASHER,1/2"

20шт.

12

S81012

CLAMP, tube - 1/2"

6шт.

13

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

6шт.

14

S77324

CLAMP

tube - 1"

6шт.

15

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

CPSW - 1/2" - 13 NC x 2-1/4"

8шт.

16

S46397

CLAMP

tube

8шт.

17

S76577

RING

compression

8шт.

18

S75792

RING

compression

4шт.
