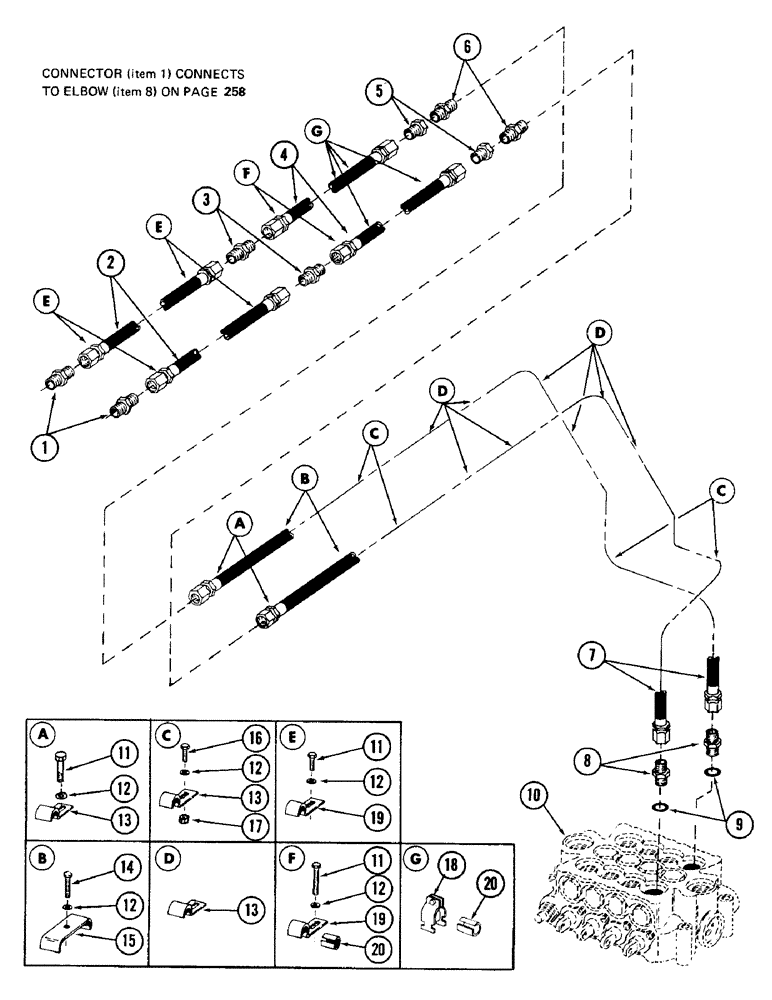

Запчасти Case 880 (260) - "E" BOOM WRIST-O-TWIST HYDRAULICS, (USED ON UNITS W/S.N. 6200000 THRU 6200288) (07) - HYDRAULIC SYSTEM

1

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

- (1/2" tube) 3/4" - 16 male x 3/4" - 16 male

2шт.

2

S11236

HOSE ASSY.

HOSE, high pressure - 3/8" ID x 26" long

2шт.

Connector (Ref 1) connects to elbow (Ref 8) on figure 258

1шт.

3

218-735

UNION,3/4"-16, 37 Degree x 3/4"-16, 37 Degree

- (1/2" tube) - 3/4" - 16 male x 3/4" - 16 male

2шт.

4

S11234

FLEXIBLE HOSE

HOSE, high pressure - 3/8" ID x 86-1/2" long

2шт.

5

218-789

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTER, reducing (5/8" - 1/2" reduction) - 3/4" - 16 male x 7/8" - 14 female

2шт.

6

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

- (5/8" tube) - 7/8" - 14 male x 7/8" - 14 male

2шт.

7

S76576

HOSE

high pressure - 1/2" ID x 330" long

2шт.

Connector (Ref 1) connects to elbow (Ref 8) on figure 258

1шт.

8

218-5078

HYD CONNECTOR,7/8" - 14 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER, flared - 1-5/16" - 12 male x 7/8" - 14 male, Includes: Ref. 9

2шт.

9

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - 1.171" ID x 1.403" OD

2шт.

10

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see figure 200)

1шт.

11

113-417

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

12

92-8

LOCK WASHER,1/2"

12шт.

13

S77324

CLAMP

- 1"

14шт.

14

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

15

S46397

CLAMP

2шт.

16

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

17

25-108

NUT,1/2"-13, G5

- 1/2" - 13 NC

4шт.

18

S91602

CLAMP

- 1"

4шт.

19

S77324

CLAMP

- 1"

4шт.

20

S75792

RING

compression

6шт.

A21571

HOSE

bulk - 3/8" ID x 25' requires 24" to make S11236. 84-1/2" to make S11234

1шт.

220-212

FITTING

COUPLING, reusable. (Used to make S11234 or S11236 hose.)

1шт.

A22797

HOSE, BULK - 1/2" ID x 50' requires 328" to make S76576 hose

1шт.

220-204

FITTING

COUPLING, reusable - used to make S76576 hose.

1шт.
