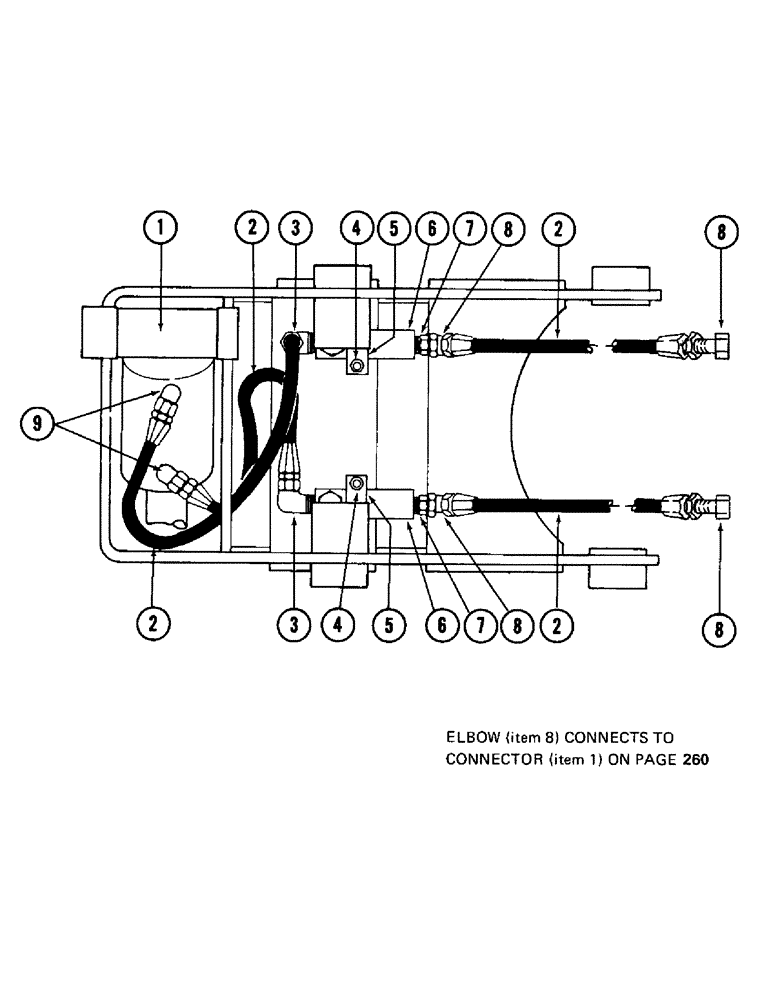

Запчасти Case 880 (258) - WRIST-O-TWIST HYDRAULICS, (USED ON UNITS WITH SERIAL NUMBER 6200000 THRU 6200288) (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

CYLINDER, wrist-o-twist - (For breakdown, see figure 264)

1шт.

2

D39245

HOSE

high pressure - 3/8" ID x 28" long - (With 3/4" - 12 female pressed on couplings)

4шт.

3

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

adpater 90 degrees - (1/2" tube) - 3/4" - 16 male x 1/2" NPT male - 37 degree flared

2шт.

4

25-106

NUT,3/8"-16, G5

- 3/8" - 16 NC

4шт.

92-6

LOCK WASHER,3/8"

4шт.

5

S81912

SPACER

2шт.

6

S210358

LOCK VALVE

VALVE, flow control

2шт.

7

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - (1/2" tube) - 3/4" - 16 male x 1/2" NPT male - 37 degree flared

2шт.

8

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

swivel 45 degree - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 female - 37 degree flared

4шт.

9

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

swivel 90 degree - (1/2" tube) - 3/4" - 16 male x 3/4" - 16 female - 37 degree flared

2шт.
