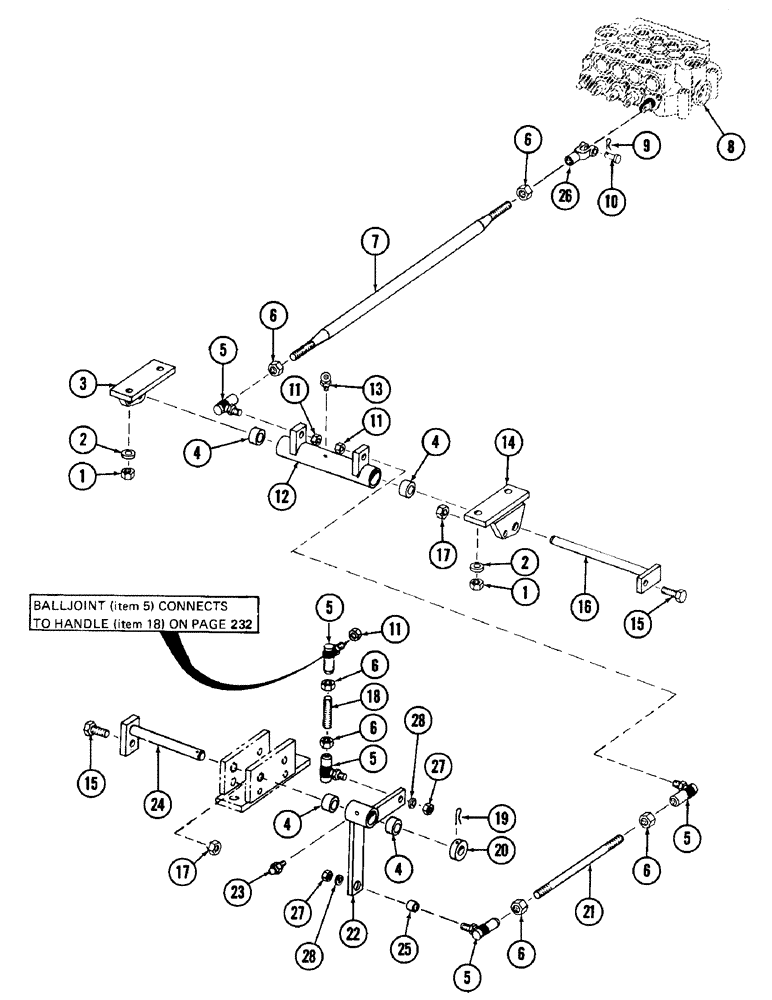

Запчасти Case 880 (256) - WRIST-O-TWIST CONTROL AND LINKAGE, (USED ON UNITS W/S.N. 6200000 THRU 6200288) (07) - HYDRAULIC SYSTEM

1

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

4шт.

2

95-8

WASHER,1/2"

flat 1/2"

4шт.

3

S218944

BRACKET

1шт.

4

A30586

NEEDLE BEARING

BEARING, needle

4шт.

5

S215594

BALL

JOINT, ball

5шт.

6

86585245

SPECIAL NUT,JAM, 5/8" - 18

jam - 3/8" - 24 NF

6шт.

7

S219275

ROD

connecting

1шт.

8

REF

INSTRUCTION

VALVE, 4 spool main - (For breakdown, see figure 200)

1шт.

9

132-67

COTTER PIN,5/32" x 3/4"

PIN, cotter - 5/32" dia. x 1"

1шт.

10

S10767

PIN

clevis - 3/8" dia. x .891" grip length

1шт.

11

131-5

LOCK NUT,3/8"-16, GB

NUT, self locking - 3/8" - 24 NF

2шт.

12

S220208

BELLCRANK, Includes: Ref. 13

1шт.

13

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

14

S218943

BRACKET

1шт.

15

113-17

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

16

S218963

SHAFT

1шт.

17

131-2

NUT,1/4"-20, GB

NUT, self locking - 1/4" - 20 NC

2шт.

18

S87534

ROD

connecting

1шт.

19

132-99

COTTER PIN,3/16" x 2"

Pin, Split (Cotter), 3/16" x 2"

1шт.

20

S88670

SPACER

1шт.

21

S91682

ROD, connecting

1шт.

22

S216744

BELLCRANK, Includes: Ref. 23

1шт.

23

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight 1/4"-28 NPT x .54" lg

1шт.

24

S219056

SHAFT

1шт.

25

S40815

BEARING, NEEDLE,0.375" ID x 0.5630" OD x 0.312"

1шт.

26

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE

1шт.

27

131-32

NUT, self locking - 3/8" - 24 NF

2шт.

28

195-25

WASHER,3/8"

plain - 13/32"

2шт.
