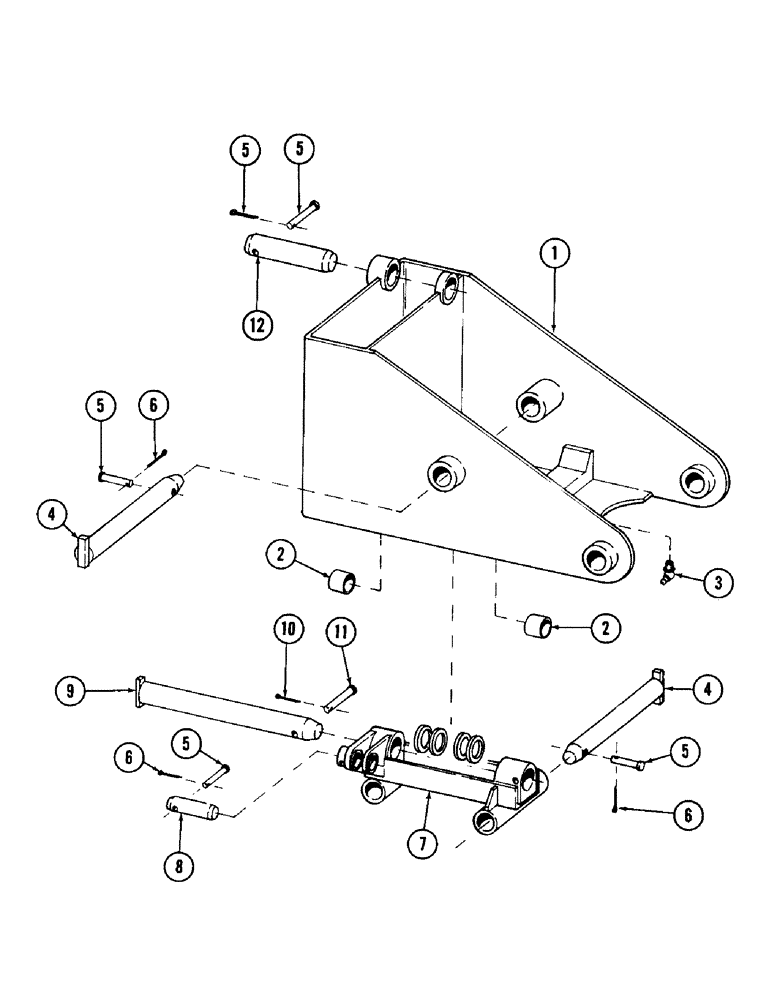

Запчасти Case 880 (254) - WRIST-O-TWIST, (USED ON UNITS WITH SERIAL NUMBER 6200000 THRU 6200288) (07) - HYDRAULIC SYSTEM

1

S57911

FRAME, upper, Includes: Ref. 2

1шт.

2

S202163

BUSHING

2шт.

3

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING, lube - 1/8" NPT x 65 degree

1шт.

4

S201019

PIN

1-1/2" O.D., 17.1" long

2шт.

5

S61970

PIN

clevis - 1/2" x 2.516" grip length

4шт.

6

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

4шт.

7

S37931

HINGE, lower

1шт.

8

S75299

PIN

1шт.

9

S201022

PIN

1шт.

10

132-69

COTTER PIN,5/32" x 1"

Pin, Split (Cotter), 5/32" x 1"

1шт.

11

S61976

CLEVIS PIN

PIN, clevis - 5/8" dia. x 4.516" grip length

1шт.

12

S74766

PIN

1шт.
